> PHOENIX CONTACT > Field Device Connectors (FDC) > 1410596

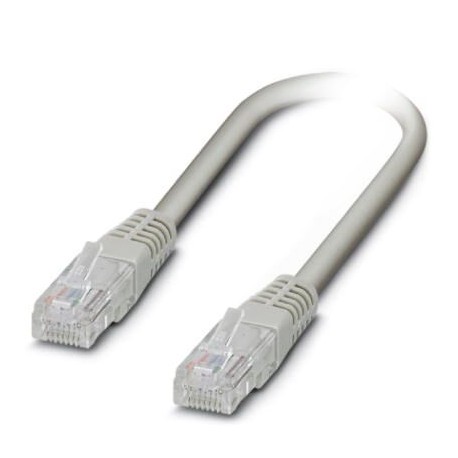

PHOENIX CONTACT NBC-R4AC/2,0-UTP GY/R4AC NBC-R4AC/2,0-UTP GY/R4AC 1410596 PHOENIX CONTACT Network cable NBC-R4AC/2,0-UTP GY/R4AC 1410596 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-R4AC/2,0-UTP GY/R4AC 1410596 PHOENIX CONTACT Network cable NBC-R4AC/2,0-UTP GY/R4AC 1410596

NBC-R4AC/2,0-UTP GY/R4AC

1410596

PHOENIX CONTACT

100 Pcs.

Network cable - NBC-R4AC/2,0-UTP GY/R4AC - 1410596 Network cable, protection rating: IP20, cable length: 2 m, number of poles: 8, 1 GBit/s, CAT5, cable output: straight, Ethernet

Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Network cable, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5, cable outlet: straight

Key Commercial Data

Orderkey1410596
Packing unit1
GTIN4046356900256
Custom tariff number85444210

Ambient conditions

Degree of protectionIP20 (RJ45 connector)
Ambient temperature (operation)-25 °C ... 80 °C (RJ45 connector)

General data

Rated current at 40°C1 A
Rated voltage50 V
Number of positions8
Rated voltage (III/3)72 V (DC)

Characteristics head 1

Colorgray
Material (component)CuSn (Contact)
Au (Contact surface)
PVC (Housing)
Insertion/withdrawal cycles≥ 750
Ambient temperature (operation)-25 °C ... 80 °C

Characteristics head 2

Colorgray
Material (component)CuSn (Contact)
Au (Contact surface)
PVC (Housing)
Insertion/withdrawal cycles≥ 750
Ambient temperature (operation)-25 °C ... 80 °C

Standards and Regulations

Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications

eCl@ss

eCl@ss 5.127061801
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 13.231251501

ETIM for 1410596 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 2 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) No
Colour cable sheath (EF008249) Grey
With LED indication (EF005950) No
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Rated current In (EF008250) 1 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) Other
