View larger
Images are for illustrative purposes only. Please refer to data sheet for details

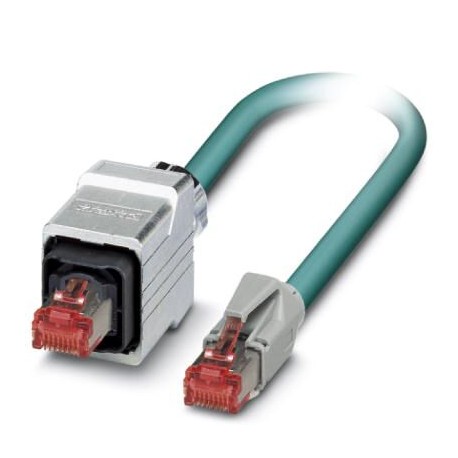

NBC-R4AC/2,0-94B/R4RC 1414428 PHOENIX CONTACT Network cable NBC-R4AC/2,0-94B/R4RC 1414428
NBC-R4AC/2,0-94B/R4RC
1414428
PHOENIX CONTACT
1 Pcs.
Network cable - NBC-R4AC/2,0-94B/R4RC - 1414428
Network cable, protection rating: IP67/IP20, cable length: 2 m, number of poles: 8, 1 GBit/s, CAT5, cable output: straight, Ethernet
Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Network cable, degree of protection: IP67/IP20, number of positions: 8, 1 Gbps, CAT5, cable outlet: straight
Key Commercial Data
| Orderkey | 1414428 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626058146 |
| Custom tariff number | 85444210 |
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 5.1 | 19030300 |
|---|---|
| eCl@ss 6.0 | 27061800 |
| eCl@ss 7.0 | 27060308 |
| eCl@ss 8.0 | 27060308 |
| eCl@ss 9.0 | 27060308 |
ETIM
| ETIM 5.0 | EC002599 |
|---|---|
| ETIM 7.0 | EC001262 |
UNSPSC
| UNSPSC 13.2 | 26121604 |
|---|
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 8 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 2 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | No |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -20 °C |
| Degree of protection (IP) (EF005474) | IP67 |
