View larger
Images are for illustrative purposes only. Please refer to data sheet for details

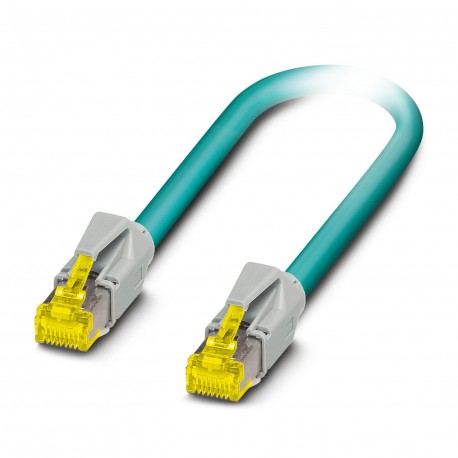

NBC-R4AC-10G/0,3-94F/R4AC-10G 1422209 PHOENIX CONTACT Patch cable
NBC-R4AC-10G/0,3-94F/R4AC-10G
1422209
PHOENIX CONTACT
1 Pcs.
Patch cable
Patch cable, CAT6A, 4 pairs, shielded, non-cross connection (Line), made on both sides with RJ45/IP20 connectors, outer sheath material: PUR, length: 0.3 m
Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1422209 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626292632 |
| Weight per Piece (excluding packing) | 36.800 g |
| Custom tariff number | 85444210 |
| Country of origin | PL (Poland) |
General data
| Rated current at 40°C | 0.5 A |
|---|---|
| Rated voltage | 48 V |
| Number of positions | 8 |
| Alternative short product description | Patch cable |
| Rated voltage (III/3) | 72 V (DC) |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 8 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 0.3 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | No |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -20 °C |
| Rated current In (EF008250) | 0.5 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | Other |
