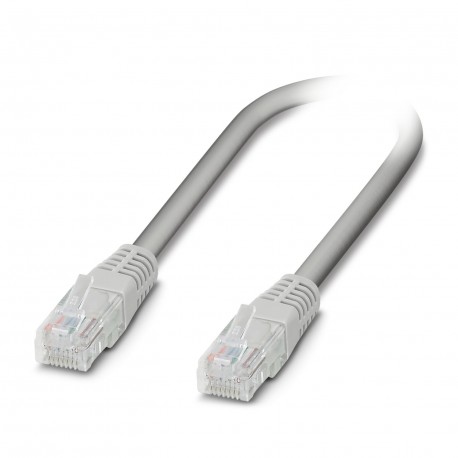

PHOENIX CONTACT NBC-R4AC/0,5-UTP GY/R4AC NBC-R4AC/0,5-UTP GY/R4AC 1413086 PHOENIX CONTACT Network cable NBC-R4AC/0,5-UTP GY/R4AC 1413086 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-R4AC/0,5-UTP GY/R4AC 1413086 PHOENIX CONTACT Network cable NBC-R4AC/0,5-UTP GY/R4AC 1413086

NBC-R4AC/0,5-UTP GY/R4AC

1413086

PHOENIX CONTACT

100 Pcs.

Network cable - NBC-R4AC/0,5-UTP GY/R4AC - 1413086 Network cable, protection rating: IP20, cable length: 0.5 m, number of poles: 8, 1 GBit/s, CAT5, cable output: straight, Ethernet Patch cable, degree of protection: IP20, cable length: 0.5 m, number of positions: 8, 1 Gbps, CAT5, cable outlet: straight, Ethernet

Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData cable preassembled
Sensor typeEthernet
Number of positions8
Number of slots1
Shieldedno
Cable outletstraight
Signaling
Status displayno
Status display presentNo
Electrical properties
Rated voltage (III/3)72 V (DC)
Nominal voltage UN48 V
Nominal current IN1 A
Transmission mediumCopper
Transmission characteristics (category)CAT5 (IEC 11801:2002)
Transmission speed1 Gbps
Mechanical properties
Mechanical data
Insertion force per signal contact50.00 N
Extraction force per signal contact30 N
Material specifications
Flammability rating according to UL 94V0
Outer sheath, materialPVC
Connector
Connection 1
TypePlug straight RJ45
Shieldedyes
Handle colorgray
MaterialCuSn (Contact)
Au (Contact surface)
PVC (Housing)
Insertion/withdrawal cycles≥ 750
Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 80 °C
Connection 2
TypePlug straight RJ45
Shieldedyes
Handle colorgray
MaterialCuSn (Contact)
Au (Contact surface)
PVC (Housing)
Insertion/withdrawal cycles≥ 750
Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 80 °C
Cable/line
Cable length0.50 m
Cable typeEthernet
Cable structure4x2xAWG24/7; UTP
External cable diameter5.40 mm
Outer sheath, materialPVC
External sheath, colorgray
Single wire, colorwhite/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Cable cross section0.22 mm²
Conductor structure signal line7x 0.20 mm
AWG signal line24
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20 (RJ45 connector)
IP20
Ambient temperature (operation)-25 °C ... 80 °C (RJ45 connector)

ETIM for 1413086 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) Other
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 0.5 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) No
Colour cable sheath (EF008249) Grey
With LED indication (EF005950) No
Screened (EF000881) No
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Rated current In (EF008250) 1 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) Other
