View larger
Images are for illustrative purposes only. Please refer to data sheet for details

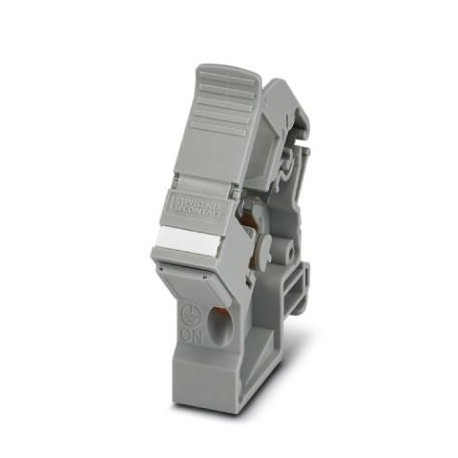

NBC-PP-G1PGY 1041740 PHOENIX CONTACT DIN rail adapter
NBC-PP-G1PGY
1041740
PHOENIX CONTACT
1 Pcs.
DIN rail adapter
Rail adapter, construction: Shielded base housing, protection rating: IP20, material: PC-GF10, without modular inserts
Connectors > Accessories/spare parts for industrial connectors
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1041740 |
|---|---|
| Packing unit | 1 pc |
| GTIN | 4055626598666 |
| Weight per Piece (excluding packing) | 29.800 g |
| Custom tariff number | 85366990 |
| Country of origin | CH (Switzerland) |
Mechanical characteristics
| Number of slots | 1 |
|---|---|
| Mounting type | DIN rail: 35 mm |
| Degree of protection | IP20 |
| Type | DIN rail module, one-piece |
| Type of note | Notes on operation |
| Note | without assembled modules |
Material data
| Flammability rating according to UL 94 | V0 |
|---|---|
| Housing material | PC-GF10 |
| Contact material | CuSn6 |
| Contact surface material | Tin |
| Material | PP (Dust protection flap) |
| Depth | 64.6 mm |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of buses/couplings (EF004395) | 1 |
| Suitable for number of connectors (EF001579) | 1 |
| Type of connector (EF002935) | Other |
| Screened (EF000881) | No |
| Category (EF001619) | Other |
| Number of height units (EF003561) | 2 |
| Height (EF000040) | 80 mm |
| Width (EF000008) | 18 mm |
| Depth (EF000049) | 64.6 mm |
