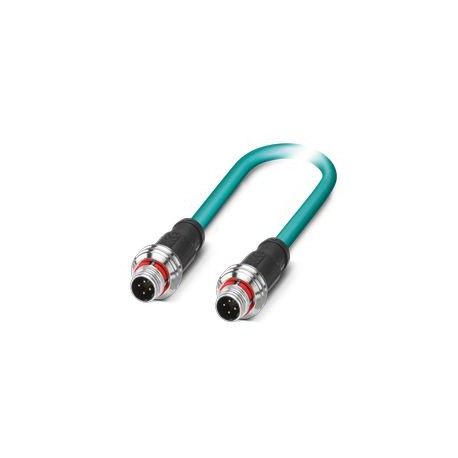

PHOENIX CONTACT NBC-P12MSD/ 3,0-93E/P12MSD NBC-P12MSD/ 3,0-93E/P12MSD 1554011 PHOENIX CONTACT Network cable, CAT5 Ethernet (100 MBit/s), 4-pole, M12 Pu.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-P12MSD/ 3,0-93E/P12MSD 1554011 PHOENIX CONTACT Network cable, CAT5 Ethernet (100 MBit/s), 4-pole, M12 Pu..

NBC-P12MSD/ 3,0-93E/P12MSD

1554011

PHOENIX CONTACT

50 Pcs.

Network cable, CAT5 Ethernet (100 MBit/s), 4-pole, M12 Push-pull straight connector, encoding: D/IP67, to M12 Push-pull straight connector, encoding: D/IP67, cable length: 3 m Network cable Network cable, Ethernet CAT5 (100 Mbps), 4-position, Plug straight M12 Push Pull, coding: D / IP67, on Plug straight M12 Push Pull, coding: D / IP67, cable length: 3 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData cable preassembled
Sensor typeEthernet
Number of positions4
ApplicationStandard
Shieldedyes
Interfaces
Bus systemEthernet
Signal type/categoryEthernet CAT5 (IEC 11801), 100 Mbps
Signaling
Status displayNo
Status display presentNo
Electrical properties
Nominal voltage UN48 V AC
60 V DC
Nominal current IN1.5 A
Transmission mediumCopper
Transmission characteristics (category)CAT5 (IEC 11801:2002)
Connector
Connection 1
TypePlug straight M12 Push Pull / IP67
Number of positions4
Locking typePush Pull
Coding typeD (Data)
Handle colorblack
Flammability rating according to UL 94V0
MaterialCuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
FKM (Seal)
Insertion/withdrawal cycles≥ 100
Contact resistance≤ 5 mΩ
Insulation resistance≥ 100 MΩ
Overvoltage categoryII
Degree of pollution3
Degree of protectionIP67
Ambient temperature (operation)-25 °C ... 85 °C
Connection 2
TypePlug straight M12 Push Pull / IP67
Number of positions4
Locking typePush Pull
Coding typeD (Data)
Handle colorblack
Flammability rating according to UL 94V0
MaterialCuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
FKM (Seal)
Insertion/withdrawal cycles≥ 100
Contact resistance≤ 5 mΩ
Insulation resistance≥ 100 MΩ
Degree of pollution3
Overvoltage categoryII
Degree of protectionIP67
Ambient temperature (operation)-25 °C ... 85 °C
Cable/line
Cable length3 m
Ethernet flexible CAT5, 2-pair [93E]
Dimensional drawinghmwurhgqiu.jpg
Shieldedyes
UL AWM Style20963 (80°C/30 V)
Cable weight42 kg/km
Cable typeEthernet flexible CAT5, 2-pair
Short symbol02YS(ST)C11Y
Cable type (abbreviation)93E
Signal type/categoryEthernet CAT5 (IEC 11801), 100 Mbps
Cable structure2x2xAWG26/7, SF/UTP
External cable diameter6.4 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorwater blue RAL 5021
Thickness, outer sheath1.2 mm
Conductor materialBare Cu litz wires
Conductor structure signal line7x 0.16 mm
AWG signal line26
Conductor cross section2x 2x 0.14 mm²
Material wire insulationFoamed PE
Wire diameter incl. insulation0.98 mm
Single wire, colorwhite/orange-orange, white/green-green
Twisted pairs2 cores to the pair
Overall twistTwo pairs with two fillers to the core
ShieldingAluminum-coated foil, tinned copper braided shield
Optical shield covering70 %
Current carrying capacity of cable2 A (according to DIN VDE 0891-1)
Nominal voltage, cable≤ 100 V (Peak value, not for high-power applications)
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700 V (50 Hz, 1 min.)
Cable insulation resistance≥ 500 MΩ*km
Coupling resistance≤ 100.00 mΩ/m (at 10 MHz)
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Loop resistance≤ 290.00 Ω/km
Cable capacityapprox. 45 nF/km (at 1 kHz)
Signal runtime5.3 ns/m
Tensile strength≤ 80 N
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Damping3.2 dB (with 1 MHz)
6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.6 dB (at 20 МHz)
17.1 dB (at 31.25 МHz)
24.8 dB (at 62.5 МHz)
32 dB (at 100 MHz)
Near end crosstalk attenuation (NEXT)65.3 dB (with 1 MHz)
56.3 dB (at 4 МHz)
50.3 dB (at 10 MHz)
47.2 dB (at 16 MHz)
45.8 dB (at 20 МHz)
42.9 dB (at 31.25 МHz)
38.4 dB (at 62.5 МHz)
35.3 dB (at 100 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)62.3 dB (with 1 MHz)
53.3 dB (at 4 МHz)
47.3 dB (at 10 MHz)
44.2 dB (at 16 MHz)
42.8 dB (at 20 МHz)
39.9 dB (at 31.25 МHz)
35.4 dB (at 62.5 МHz)
32.3 dB (at 100 MHz)
Return attenuation (RL)23 dB (at 4 МHz)
24.1 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
23.6 dB (at 31.25 МHz)
21.5 dB (at 62.5 МHz)
20.1 dB (at 100 MHz)
Halogen-freeaccording to IEC 60754-1
Resistance to oilin accordance with EN 60811-2-1
Flame resistanceaccording to IEC 60332-1-2
in acc. to UL VW1
in accordance with UN ECE-R 118.03
Ambient temperature (operation)-20 °C ... 80 °C (Cable, flexible installation)
-40 °C ... 80 °C (cable, fixed installation)

ETIM for 1554011 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) M12
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 3 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Rated current In (EF008250) 1.5 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP67
