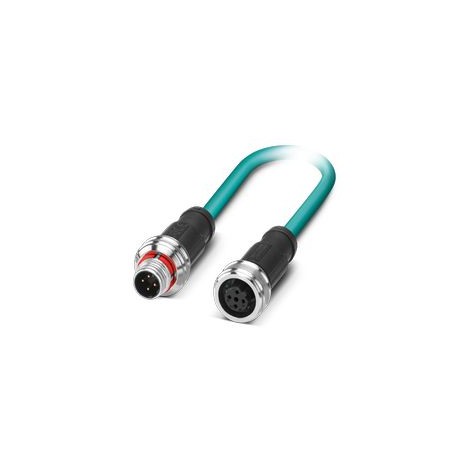

PHOENIX CONTACT NBC-P12MSD/ 0,3-93E/P12FSD NBC-P12MSD/ 0,3-93E/P12FSD 1224258 PHOENIX CONTACT Network cable, CAT5 Ethernet (100 MBit/s), 4-pole, shield.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-P12MSD/ 0,3-93E/P12FSD 1224258 PHOENIX CONTACT Network cable, CAT5 Ethernet (100 MBit/s), 4-pole, shield..

NBC-P12MSD/ 0,3-93E/P12FSD

1224258

PHOENIX CONTACT

1 Pcs.

Network cable, CAT5 Ethernet (100 MBit/s), 4-pole, shielded (Advanced Shielding Technology), M12 straight connector, coding: D Push-pull / IP67, a Straight female M12, coding: D Push-pull / IP67, cable length: 0.3 m Network cable, Ethernet CAT5 (100 Mbps), 4-position, shielded (Advanced Shielding Technology), Plug straight M12 Push Pull, coding: D / IP67, on Socket straight M12 Push Pull, coding: D / IP67, cable length: 0.3 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData cable preassembled
Sensor typeEthernet
Number of positions4
ApplicationStandard
Shieldedyes
Interfaces
Bus systemEthernet
Signal type/categoryEthernet CAT5 (IEC 11801), 100 Mbps
Signaling
Status displayNo
Status display presentNo
Electrical properties
Nominal voltage UN48 V AC
60 V DC
Nominal current IN1.5 A
Transmission mediumCopper
Transmission characteristics (category)CAT5 (IEC 11801:2002)
Connector
Connection 1
TypePlug straight M12 Push Pull / IP67
Number of positions4
Locking typePush Pull
Coding typeD (Data)
Handle colorblack
Flammability rating according to UL 94V0
MaterialCuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
FKM (Seal)
Insertion/withdrawal cycles≥ 100
Contact resistance≤ 5 mΩ
Insulation resistance≥ 100 MΩ
Overvoltage categoryII
Degree of pollution3
Degree of protectionIP67
Ambient temperature (operation)-25 °C ... 85 °C
Connection 2
TypeSocket straight M12 Push Pull / IP67
Number of positions4
Locking typePush Pull
Coding typeD (Data)
Handle colorblack
Flammability rating according to UL 94V0
MaterialCuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
FKM (Seal)
Insertion/withdrawal cycles≥ 100
Contact resistance≤ 5 mΩ
Insulation resistance≥ 100 MΩ
Degree of pollution3
Overvoltage categoryII
Degree of protectionIP67
Ambient temperature (operation)-25 °C ... 85 °C
Cable/line
Cable length0.3 m
Ethernet flexible CAT5, 2-pair [93E]
Dimensional drawinghmwurhgqiu.jpg
Cable weight42 kg/km
UL AWM Style20963 (80°C/30 V)
Wiring standards/regulationsElectrical requirements EN 50288-2-2
Number of positions4
Shieldedyes
Cable typeEthernet flexible CAT5, 2-pair [93E]
Conductor structure2x2xAWG26/7, SF/UTP
Signal runtime5.3 ns/m
Conductor structure signal line7x 0.16 mm
AWG signal line26
Conductor cross section2x 2x 0.14 mm²
Wire diameter incl. insulation0.98 mm
External cable diameter6.4 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorwater blue RAL 5021
Conductor materialBare Cu litz wires
Material wire insulationFoamed PE
Single wire, colorwhite/orange-orange, white/green-green
Thickness, outer sheath1.2 mm
Twisted pairs2 cores to the pair
Overall twistTwo pairs with two fillers to the core
Optical shield covering70 %
Insulation resistance≥ 500 MΩ*km
Coupling resistance≤ 100.00 mΩ/m (at 10 MHz)
Loop resistance≤ 290.00 Ω/km
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Cable capacityapprox. 45 nF/km (at 1 kHz)
Nominal voltage, cable≤ 100 V (Peak value, not for high-power applications)
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700 V (50 Hz, 1 min.)
Current carrying capacity of cable2 A (according to DIN VDE 0891-1)
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Smallest bending radius, fixed installation26 mm
Smallest bending radius, movable installation52 mm
Tensile strength≤ 80 N
Near end crosstalk attenuation (NEXT)65.3 dB (with 1 MHz)
56.3 dB (at 4 МHz)
50.3 dB (at 10 MHz)
47.2 dB (at 16 MHz)
45.8 dB (at 20 МHz)
42.9 dB (at 31.25 МHz)
38.4 dB (at 62.5 МHz)
35.3 dB (at 100 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)62.3 dB (with 1 MHz)
53.3 dB (at 4 МHz)
47.3 dB (at 10 MHz)
44.2 dB (at 16 MHz)
42.8 dB (at 20 МHz)
39.9 dB (at 31.25 МHz)
35.4 dB (at 62.5 МHz)
32.3 dB (at 100 MHz)
Return attenuation (RL)23 dB (at 4 МHz)
24.1 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
23.6 dB (at 31.25 МHz)
21.5 dB (at 62.5 МHz)
20.1 dB (at 100 MHz)
Shield attenuation3.2 dB (with 1 MHz)
6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.6 dB (at 20 МHz)
17.1 dB (at 31.25 МHz)
24.8 dB (at 62.5 МHz)
32 dB (at 100 MHz)
Halogen-freeaccording to IEC 60754-1
Flame resistanceaccording to IEC 60332-1-2
in acc. to UL VW1
in accordance with UN ECE-R 118.03
Resistance to oilin accordance with EN 60811-2-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (Cable, flexible installation)
Ambient temperature (installation)-20 °C ... 80 °C
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-25 °C ... 85 °C (Plug / socket)
