View larger
Images are for illustrative purposes only. Please refer to data sheet for details

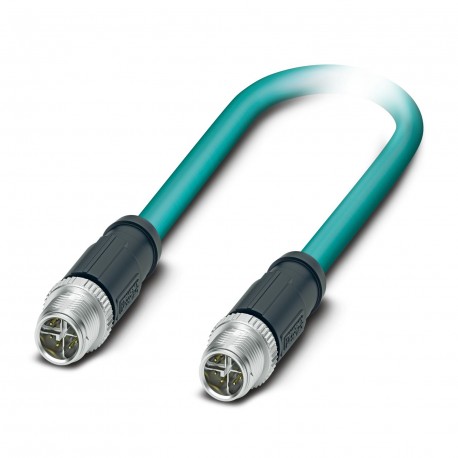

NBC-M12MSX/ 4,0-94C/M12MSX 1423304 PHOENIX CONTACT Network cable NBC-MSX/ 4,0-94C/MSX SCO 1423304
NBC-M12MSX/ 4,0-94C/M12MSX
1423304
PHOENIX CONTACT
50 Pcs.
Network cable - NBC-MSX/ 4,0-94C/MSX SCO - 1423304
Network cable, Ethernet CAT5 (1 GBit/s) CAT5 (1 GBit/s), 8-pole, shielded (Advanced Shielding Technology), M12 straight connector, encoding: X / IP67, a M12 straight connector, encoding: X / IP67, cable length: 4 m
Network cable, Ethernet CAT5 (1 Gbit/s) CAT5 (1 Gbit/s), 8-pole, halogen-free PUR, lagoon blue RAL 5021, shielded (Advanced Shielding Technology), straight male connector M12, encoding: X / IP67, over straight male connector M12, encoding: X / IP67, cable length: 4 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Network cable, Ethernet, 8-position, PUR, water blue RAL 5021, shielded, Plug straight M12 SPEEDCON / IP67, coding: X, on Plug straight M12 SPEEDCON / IP67, cable length: 4 m
Key Commercial Data
| Orderkey | 1423304 |
|---|---|
| Packing unit | 1 |
| GTIN | 4055626338187 |
| Custom tariff number | 85444290 |
Dimensions
| Length of cable | 4 m |
|---|
General data
| Rated voltage | 48 V AC |
|---|---|
| 60 V DC | |
| Number of positions | 8 |
| Signal type/category | Ethernet |
Characteristics head 1
| Head type | Plug straight M12 SPEEDCON / IP67 |
|---|---|
| Coding | X |
Characteristics head 2
| Head type | Plug straight M12 SPEEDCON / IP67 |
|---|
Environmental Product Compliance
| REACh SVHC | |
|---|---|
| Lead 7439-92-1 | |
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss
| eCl@ss 7.0 | 27060308 |
|---|---|
| eCl@ss 9.0 | 27060308 |
ETIM
| ETIM 7.0 | EC001262 |
|---|
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 8 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Male (plug) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 4 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -20 °C |
| Rated current In (EF008250) | 0.5 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | IP67 |
