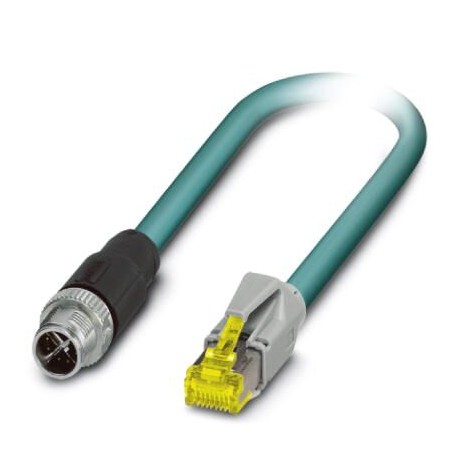

PHOENIX CONTACT NBC-M12MSX/ 2,8-94C/R4AC NBC-M12MSX/ 2,8-94C/R4AC 1417813 PHOENIX CONTACT Network cable NBC-MSX/ 2,8-94C/R4AC SCO 1417813 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-M12MSX/ 2,8-94C/R4AC 1417813 PHOENIX CONTACT Network cable NBC-MSX/ 2,8-94C/R4AC SCO 1417813

NBC-M12MSX/ 2,8-94C/R4AC

1417813

PHOENIX CONTACT

50 Pcs.

Network cable - NBC-MSX/ 2,8-94C/R4AC SCO - 1417813 Network cable, Ethernet CAT5 (1 GBit/s) CAT5 (1 GBit/s), 8-pole, shielded (Advanced Shielding Technology), M12 straight connector, encoding: X / IP67, a RJ45 straight connector, encoding: X / IP20, cable length: 2.8 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Network cable, Ethernet CAT5, 8-position, PUR, water blue RAL 5021, shielded, Plug straight M12 SPEEDCON / IP67, coding: X, on Plug straight RJ45 / IP20, cable length: 2.8 m

Key Commercial Data

Orderkey1417813
Packing unit1
GTIN4055626126999
Custom tariff number85444290

Dimensions

Length of cable2.8 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (M12 connector)
-20 °C ... 70 °C (RJ45 connector)

General data

Rated current at 40°C0.5 A
Rated voltage48 V AC
60 V DC
Number of positions8
Signal type/categoryEthernet CAT5
Standards/regulationsM12 connector IEC 61076-2-109
Contact materialCuSn
Contact carrier materialPP
Contact surface materialNi/Au
Housing materialPlastic

Characteristics head 1

Head typePlug straight M12 SPEEDCON / IP67
No. of positions (pin connector pattern)8
CodingX (Data)
Colorblack
Material (component)CuZn (Contact)
Ni/Au (Contact surface)
PP (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Insulation resistance≥ 100 MΩ
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm
Ambient temperature (operation)-25 °C ... 90 °C

Characteristics head 2

Head typePlug straight RJ45 / IP20
No. of positions (pin connector pattern)8 (8)
Colorgray
Material (component)CuSn (Contact)
Ni/Au (Contact surface)
PC (Contact carriers)
PA (Housing)
Insertion/withdrawal cycles≥ 750
Ambient temperature (operation)-40 °C ... 60 °C

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-109

Cable

Cable typeEthernet drag chain CAT5
Cable type (abbreviation)94C
UL AWM style20963 (80°C/30 V)
Signal type/categoryEthernet CAT5 (IEC 11801), 1 Gbps
Cable structure4x2xAWG26/19; S/UTP
Conductor cross section4x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line19x 0.10 mm
Core diameter including insulation1 mm
Wire colorswhite/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Twisted pairs2 cores to the pair
Overall twistFour pairs and four fillers to the core
ShieldingTinned copper braided shield
Optical shield covering90 %
External sheath, colorwater blue RAL 5021
Outer sheath thickness0.85 mm
External cable diameter D6.9 mm +0.1 mm ... 0.2 mm
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Number of bending cycles5000000
Minimum bending radius, drag chain applications7,5 x D
Traversing rate3 m/s
Acceleration5 m/s²
Tensile strength GRP≤ 100 N
Cable weight57 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 290.00 Ω/km
Cable capacityapprox. 50 nF/km (at 1 kHz)
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)65.3 dB (with 1 MHz)
56.3 dB (at 4 МHz)
50.3 dB (at 10 MHz)
47.2 dB (at 16 MHz)
45.8 dB (at 20 МHz)
42.9 dB (at 31.25 МHz)
38.4 dB (at 62.5 МHz)
35.3 dB (at 100 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)62.3 dB (with 1 MHz)
53.3 dB (at 4 МHz)
47.3 dB (at 10 MHz)
44.2 dB (at 16 MHz)
42.8 dB (at 20 МHz)
39.9 dB (at 31.25 МHz)
35.4 dB (at 62.5 МHz)
32.3 dB (at 100 MHz)
Attenuation3.2 dB (with 1 MHz)
6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.6 dB (at 20 МHz)
17.1 dB (at 31.25 МHz)
24.8 dB (at 62.5 МHz)
32 dB (at 100 MHz)
Return loss (RL)23 dB (at 4 МHz)
24.1 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
23.6 dB (at 31.25 МHz)
21.5 dB (at 62.5 МHz)
20.1 dB (at 100 MHz)
Signal runtime5.3 ns/m
Coupling resistance≤ 100.00 mΩ/m (at 10 MHz)
Nominal voltage, cable≤ 100 V
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700 V (50 Hz, 1 min.)
Flame resistanceaccording to IEC 60332-1-2
Halogen-freeaccording to IEC 60754-1
Resistance to oilaccording to EN 60811-2-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 80 °C
Ambient temperature (storage/transport)-20 °C ... 80 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 5.127250107
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 13.231251501

ETIM for 1417813 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 8
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 2.8 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Rated current In (EF008250) 0.5 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP67
