> PHOENIX CONTACT > Industrial Field Connectivity (IFC) > 1418871

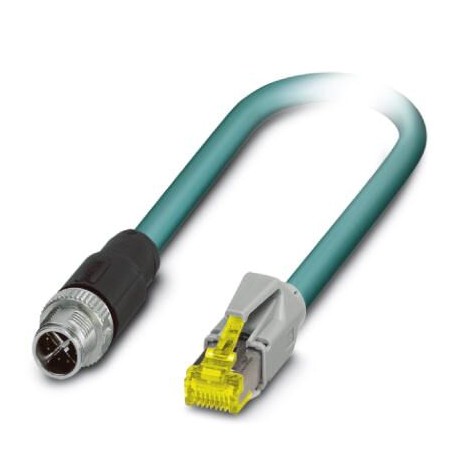

PHOENIX CONTACT NBC-M12MSX/10,0-94C/R4AC NBC-M12MSX/10,0-94C/R4AC 1418871 PHOENIX CONTACT Network cable NBC-MSX/10,0-94C/R4AC SCO 1418871 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-M12MSX/10,0-94C/R4AC 1418871 PHOENIX CONTACT Network cable NBC-MSX/10,0-94C/R4AC SCO 1418871

NBC-M12MSX/10,0-94C/R4AC

1418871

PHOENIX CONTACT

25 Pcs.

Network cable - NBC-MSX/10,0-94C/R4AC SCO - 1418871 Network cable, CAT5 Ethernet, 8-pole, PUR, water blue RAL 5021, shielded, M12 SPEEDCON / IP67 straight connector, cable length: 10 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Network cable, Ethernet CAT5, 8-position, PUR, water blue RAL 5021, shielded, Plug straight M12 SPEEDCON / IP67, cable length: 10 m

Key Commercial Data

Orderkey1418871
Packing unit1
GTIN4055626155289
Custom tariff number85444290

Dimensions

Length of cable10 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (M12 connector)
-20 °C ... 70 °C (RJ45 connector)

General data

Rated current at 40°C0.5 A
Rated voltage48 V AC
60 V DC
Number of positions8
Signal type/categoryEthernet CAT5
Standards/regulationsM12 connector IEC 61076-2-109
Contact materialCuSn
Contact carrier materialPP
Contact surface materialNi/Au
Housing materialPlastic

Characteristics head 1

Head typePlug straight M12 SPEEDCON / IP67
No. of positions (pin connector pattern)8
Colorblack
Material (component)CuZn (Contact)

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-109

Cable

Cable typeEthernet drag chain CAT5
Cable type (abbreviation)94C
UL AWM style20963 (80°C/30 V)
Signal type/categoryEthernet CAT5 (IEC 11801), 1 Gbps
Cable structure4x2xAWG26/19; S/UTP
Conductor cross section4x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line19x 0.10 mm
Core diameter including insulation1 mm
Wire colorswhite/blue-blue, white/orange-orange, white/green-green, white/brown-brown
Twisted pairs2 cores to the pair
Overall twistFour pairs and four fillers to the core
ShieldingTinned copper braided shield
Optical shield covering90 %
External sheath, colorwater blue RAL 5021
Outer sheath thickness0.85 mm
External cable diameter D6.9 mm +0.1 mm ... 0.2 mm
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Number of bending cycles5000000
Minimum bending radius, drag chain applications7,5 x D
Traversing rate3 m/s
Acceleration5 m/s²
Tensile strength GRP≤ 100 N
Cable weight57 kg/km
Outer sheath, materialPUR
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 290.00 Ω/km
Cable capacityapprox. 50 nF/km (at 1 kHz)
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)65.3 dB (with 1 MHz)
56.3 dB (at 4 МHz)
50.3 dB (at 10 MHz)
47.2 dB (at 16 MHz)
45.8 dB (at 20 МHz)
42.9 dB (at 31.25 МHz)
38.4 dB (at 62.5 МHz)
35.3 dB (at 100 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)62.3 dB (with 1 MHz)
53.3 dB (at 4 МHz)
47.3 dB (at 10 MHz)
44.2 dB (at 16 MHz)
42.8 dB (at 20 МHz)
39.9 dB (at 31.25 МHz)
35.4 dB (at 62.5 МHz)
32.3 dB (at 100 MHz)
Attenuation3.2 dB (with 1 MHz)
6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.6 dB (at 20 МHz)
17.1 dB (at 31.25 МHz)
24.8 dB (at 62.5 МHz)
32 dB (at 100 MHz)
Return loss (RL)23 dB (at 4 МHz)
24.1 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
23.6 dB (at 31.25 МHz)
21.5 dB (at 62.5 МHz)
20.1 dB (at 100 MHz)
Signal runtime5.3 ns/m
Coupling resistance≤ 100.00 mΩ/m (at 10 MHz)
Nominal voltage, cable≤ 100 V
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700 V (50 Hz, 1 min.)
Flame resistanceaccording to IEC 60332-1-2
Halogen-freeaccording to IEC 60754-1
Resistance to oilaccording to EN 60811-2-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 80 °C
Ambient temperature (storage/transport)-20 °C ... 80 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
