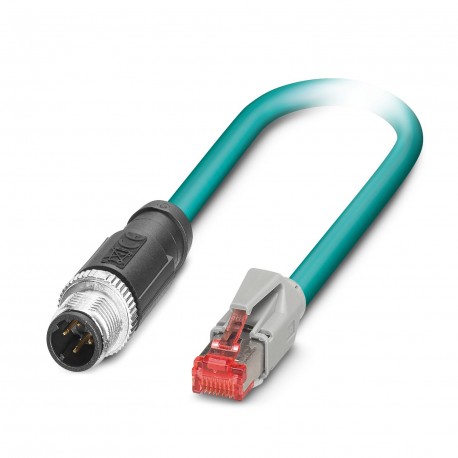

Network Cable - NBC-MSD/50,0-93E/R4AC SCO - 1426089 Network cable, CAT5 Ethernet (100 MBit/s), 4-pole, shielded, M12 straight connector, encoding: D SPEEDCON / IP67, to RJ45 / IP20 straight connector, cable length: 50 m Network cable, CAT5 Ethernet (100 MBit/s), 4-pole, halogen-free PUR, water blue RAL 5021, shielded, M12 SPEEDCON straight connector, encoding: D / IP67, a RJ45 / IP20 straight connector, cable length: 50 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Network Cable, Ethernet CAT5 (100 MBit/s), 4-pole, PUR, aqua blue RAL 5021, shielded, Plug straight M12 SPEEDCON / IP67, coding: D, on Plug straight RJ45 / IP20, cable length: 50 m

Data commercial

Key orderOne million four hundred twenty six thousand eighty nine
Packing unit1 pcs
Key sellingBF1CJI -
EANFour trillion fifty five billion six hundred twenty six million four hundred forty three thousand nine hundred seventy three
Unit weight (excluding packaging)2.323,600 g
Tariff number tariffEighty five million four hundred forty four thousand two hundred ninety

Measures

Cable length50 m

Environmental conditions

Room temperature (service)-25 °C ... 85 °C (M12 Connector)
-20 °C ... 70 °C Connector (RJ45 plug)

General data

Current sizing at 40 °C1 To
Tension sizing48 V AC
60 V DC
Number of polesFour
Signal type/categoryEthernet CAT5 (IEC 11801), 100 MBit/s
Standards/specificationsPlug-in connector M12 to IEC 61076-2-101
Material contactCuSn
Material support of contactsTPU GF
Material contact surfaceNi/Au
Material housingPlastic

Values nominal head 1

Construction headerConnector straight M12 SPEEDCON / IP67
Number of poles (face of plug)Four
EncodingD (Data)
Colorblack
Material (components)CuZn (Contact)
Ni/Au (Surface contacts)
PA (Support contacts)
TPU, low flammability, self-extinguishing (Body grip)
Die-cast zinc, nickel-Connection by screw)
Insulation resistance≥ 100 MΩ
Cycles of plug≥ 100
Tightening torque0.4 Nm
Room temperature (service)-25 °C ... 90 °C

Nominal values 2 head

Construction headerConnector, straight RJ45 / IP20
Number of poles (face of plug)4 (8)
Colorgrey
Material (components)CuSn (Contact)
Ni/Au (Surface contacts)
PC (Support contacts)
PA (Housing)
Cycles of plug≥ 750
Room temperature (service)-25 °C ... 60 °C

Standards and specifications

Name of standardPlug-in connector M12
Standards/specificationsIEC 61076-2-101

Cable

Type of cablePUR ETHERNET 2x2 FLEX
Cable type (abbreviation)93E
UL AWM Style20963 (80 °C / 30 V)
Signal type/categoryEthernet CAT5 (IEC 11801), 100 MBit/s
Construction of cable2x2xAWG26/7; SF/UTP
Section of driver2x 2x 0.14 mm2
Signal cable AWGTwenty six
Construction of the driver signal cable7x 0.16 mm
Diameter of the conductors, insulation included0.98 mm
Colors driverwhite/orange-orange, white/green-green
Pair cabling2 drivers as a pair
Cabling total2 pairs with 2 fillings as a soul
ShieldingSheet with lined aluminum, mesh of copper wires tinned
Cover visual screen70 %
Outer wrap, coloraqua blue RAL 5021
Wall thickness outer wrap1.2 mm
Outer diameter of cable D6.4 mm ±0.2 mm
Minimum bending radius, placed in a fixed manner4 x D
Minimum bending radius, placed in a flexible way8 x D
The tensile strength of GRP≤ 80 N
Weight of the cable42 kg/km
Outer casing, materialPUR
Material Insulation conductorPE foamed
Conductive MaterialConductor Cu bare
Standards/provisionsElectrical requirements IN 50288-2-2
Insulation resistance≥ 500 MΩ*km
Resistance to polishing≤ 290,00 Ω/km
Capacity of the lineapprox. 45 nF/km (1 kHz)
Impedance own100 Ω ±5 Ω (at 100 MHz)
Attenuation paradiafónica (NEXT)65,3 dB (1 MHz)
For 56.3 dB (4 MHz)
To 50.3 dB (at 10 MHz)
47,2 dB (16 MHz)
45,8 dB (at 20 MHz)
42,9 dB (or 31.25 MHz)
38,4 dB (62.5 MHz)
To 35.3 dB (at 100 MHz)
Attenuation paradiafónica with power numbered (PSNEXT)62,3 dB (1 MHz)
53,3 dB (4 MHz)
47,3 dB (at 10 MHz)
44,2 dB (16 MHz)
42,8 dB (at 20 MHz)
39,9 dB (or 31.25 MHz)
At 35.4 dB (62.5 MHz)
32,3 dB (at 100 MHz)
Attenuation3.2 dB (with 1 MHz)
6 dB (4 MHz)
9.5 dB (at 10 MHz)
12,1 dB (16 MHz)
13,6 dB (at 20 MHz)
17.1 dB (at 31,25 MHz)
24,8 dB (62.5 MHz)
32 dB (at 100 MHz)
Attenuation of return (RL)23 dB (4 MHz)
Of 24.1 dB (at 8 MHz)
25 dB (to 10 MHz)
25 dB (16 MHz)
25 dB (at 20 MHz)
23,6 dB (or 31.25 MHz)
21,5 dB (62.5 MHz)
Of 20.1 dB (at 100 MHz)
Transit time of signals5,3 ns/m
Transfer impedance≤ 100,00 mΩ/m (at 10 MHz)
Rated voltage Cable≤ 100 V (peak Value, not suitable for high intensity)
Test voltage Conductor/Conductor700 V (50 Hz, 1 min)
Test voltage Conductor/Screen700 V (50 Hz, 1 min)
Capacity of current line2 a (according To DIN VDE 0891-1)
Flame resistanceaccording to IEC 60332-1-2
according to UL VW1
Absence of halogenaccording to IEC 60754-1
Oil resistanceaccording to en 60811-2-1
Room temperature (service)-40 °C ... 80 °C (cable, fixed)
-20 °C ... 80 °C (cable, available mobile)
Room temperature (available)-20 °C ... 80 °C
Ambient temperature (storage / transport)-20 °C ... 80 °C

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSSpace of time for the intended use (FEUP): 50 years
You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab

Ratings

eCl@ss

eCl@ss 7.0Twenty seven million sixty thousand three hundred eight
eCl@ss 9.0Twenty seven million sixty thousand three hundred eight

ETIM

ETIM 7.0EC001262

ETIM for 1426089 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 50 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Rated current In (EF008250) 1 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP67
