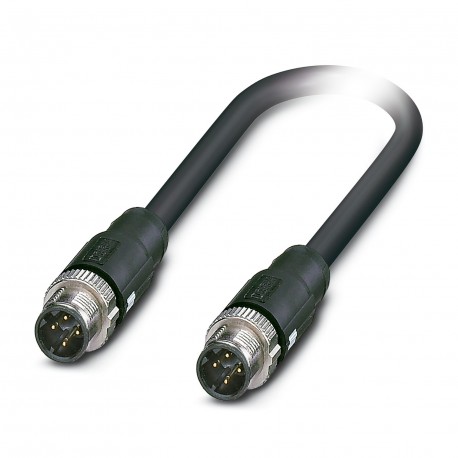

PHOENIX CONTACT NBC-MSD/3,0-937/MSD RX-TX NBC-MSD/3,0-937/MSD RX-TX 1412280 PHOENIX CONTACT Network cable, PROFINET CAT5, PROFINET CAT5e, 4-pos., RADOX View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-MSD/3,0-937/MSD RX-TX 1412280 PHOENIX CONTACT Network cable, PROFINET CAT5, PROFINET CAT5e, 4-pos., RADOX

NBC-MSD/3,0-937/MSD RX-TX

1412280

PHOENIX CONTACT

50 Pcs.

Network cable, PROFINET CAT5, PROFINET CAT5e, 4-pos., RADOX Network cable, PROFINET CAT5, PROFINET CAT5e, 4 poles, RADOX® GKW S, black RAL 9005, shielded, straight plug M12 SPEEDCON / IP65, coding: D, over straight plug M12 SPEEDCON / IP65, coding: D, cable length: 3 m, item tested according to customer specifications / railway application Network cable, PROFINET CAT5, PROFINET CAT5e, 4-pos., RADOX® GKW S, RAL 9005 (black), shielded, straight M12-SPEEDCON plug/IP65, coding: D to straight M12-SPEEDCON plug/IP65, coding D, cable length: 3 m, product checked according to customer specification/railway application

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData cable preassembled
Sensor typePROFINET
Number of positions4
No. of cable outlets1
Shieldedyes
CodingD
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Interfaces
Bus systemPROFINET
Signal type/categoryPROFINET CAT5 (IEC 11801:2002)
Signaling
Status displayno
Status display presentNo
Electrical properties
Nominal voltage UN48 V AC
60 V DC
Nominal current IN4 A
Transmission mediumCopper
Transmission characteristics (category)CAT5 (IEC 11801:2002)
Material specifications
Flammability rating according to UL 94V0
Connector
Connection 1
TypePlug straight M12 SPEEDCON / IP65
Number of positions4
Locking typeSPEEDCON
Coding typeD (Data)
Shieldedyes
Handle colorblack
MaterialCuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip body)
Zinc die-cast, nickel-plated (Screw connection)
Insertion/withdrawal cycles≥ 100 (Quantity: 500 with Phoenix Contact mating connector)
Insulation resistance≥ 100 MΩ
Tightening torque0.4 Nm
Degree of protectionIP65
Ambient temperature (operation)-40 °C ... 90 °C
Connection 2
TypePlug straight M12 SPEEDCON / IP65
Number of positions4
Locking typeSPEEDCON
Coding typeD (Data)
Shieldedyes
Handle colorblack
MaterialCuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip body)
Zinc die-cast, nickel-plated (Screw connection)
Insertion/withdrawal cycles≥ 100 (Quantity: 500 with Phoenix Contact mating connector)
Insulation resistance≥ 100 MΩ
Tightening torque0.4 Nm
Degree of protectionIP65
Ambient temperature (operation)-40 °C ... 90 °C
Cable/line
Cable length3 m
PROFINET RADOX® railway application CAT5 [937]
Dimensional drawingjtvtrckflp.jpg
Cable weight70 kg/km
Number of positions4
Shieldedyes
Cable typePROFINET RADOX® railway application CAT5 [937]
Conductor structure1x4xAWG22/7, SF/TQ
Signal speed75 c
Conductor structure signal line7x 0.25 mm
AWG signal line22
Conductor cross section4x 0.34 mm²
Wire diameter incl. insulationapprox. 1.5 mm
External cable diameter6.60 mm ±0.4 mm
Outer sheath, materialPE-X
External sheath, colorblack RAL 9005
Conductor materialsilver-plated Cu litz wires
Material wire insulationFoamed PE
Single wire, colorwhite-blue, orange-yellow
Thickness, outer sheathapprox. 1.00 mm
Overall twistStar quad
Max. conductor resistance≤ 54.4 Ω/km
Coupling resistance200.00 mΩ/m (f ≤ 30 MHz)
Wave impedance100 Ω ±5 Ω (f = 100 MHz)
Working capacitance≤ 65 pF (Line-line)
≤ 100 pF (Line-shield)
Nominal voltage, cable300 V AC
Test voltage2000 V AC (50 Hz, 5 minutes)
Minimum bending radius, fixed installation6 x D
Smallest bending radius, fixed installation40 mm
Near end crosstalk attenuation (NEXT)73 dB (with 1 MHz)
70 dB (at 4 МHz)
65 dB (at 10 MHz)
57 dB (at 31.5 МHz)
52 dB (at 62.5 МHz)
48 dB (at 100 MHz)
Return attenuation (RL)25 dB (at 4 МHz)
30 dB (at 10 MHz)
30 dB (at 31.5 МHz)
30 dB (at 62.5 МHz)
28 dB (at 100 MHz)
Remote crosstalk attenuation (FEXT)78 dB (with 1 MHz)
77 dB (at 4 МHz)
70 dB (at 10 MHz)
65 dB (at 31.5 МHz)
56 dB (at 62.5 МHz)
48 dB (at 100 MHz)
Shield attenuation2 dB (with 1 MHz)
4.4 dB (at 4 МHz)
7.4 dB (at 10 MHz)
14 dB (at 31.5 МHz)
20 dB (at 62.5 МHz)
26 dB (at 100 MHz)
40.00 dB (30 MHz ≤ f ≤ 100 MHz)
Halogen-freein accordance with EN 50267-2-1
Flame resistanceEN 60332-1-2
EN 50266
EN 60332-3-25
NF C32-070, 2.1
NF C32-070, 2.2
UL 1685, 12 (FT4)
in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Fume corrosivenessEN 50267-2-2
Fume toxicityBS 6853 B.1
EN 50305, 9.2
Concentration of fumesBS 6853 D.8.7
EN 61034-2
UL 1685, 12 (FT4)
Resistance to oilaccording to IRM 902, 72 h at 100 °C
Fire protection in rail vehiclesBS 6853 (Category Ia, Ib, II)
GM/RT 2130 (Category Ia, Ib, II)
EN 45545 (Risk level HL1 - HL3)
DIN 5510 (Fire protection level 1, 2, 3, 4)
NF F16-101 (Category A1, A2, B)
NF F16-101 (Class C/F0)
NFPA 130
UNI CEI 11170 (Risk level LR1 - LR4)
Other resistanceResistance to fuels (according to IRM 903, 168 h at 70 °C)
Ambient temperature (operation)-50 °C ... 90 °C (cable, fixed installation)
-40 °C ... 90 °C (Cable, flexible installation)
Ambient temperature (installation)-25 °C ... 90 °C
Standards and regulations
M12
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101
