PHOENIX CONTACT NBC-MS/ 5,0-93K/MS SCO NBC-MS/ 5,0-93K/MS SCO 1410688 PHOENIX CONTACT Assembled Sercos III cable, shielded, star quad, 22 AWG stran.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-MS/ 5,0-93K/MS SCO 1410688 PHOENIX CONTACT Assembled Sercos III cable, shielded, star quad, 22 AWG stran..

NBC-MS/ 5,0-93K/MS SCO

1410688

PHOENIX CONTACT

50 Pcs.

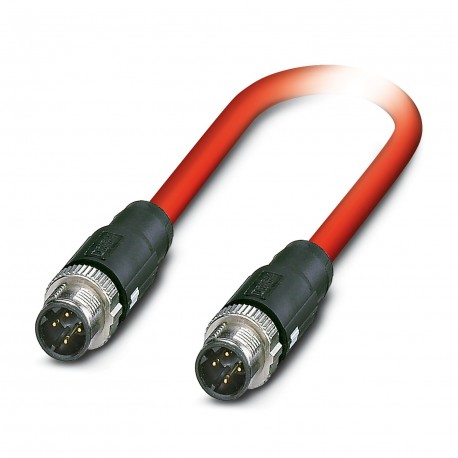

Assembled Sercos III cable, shielded, star quad, 22 AWG stranded (7-wire), RAL 3020 (traffic red), M12 plug, SPEEDCON, 4-pos. to M12 plug, SPEEDCON, length: 5 m Sercos III assembled cable, shielded, star quad, flexible AWG 22 (7 wires), RAL 3020 (traffic red), M12 connector, SPEEDCON, 4 poles in M12 connector, SPEEDCON, length: 5 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1410688
Packing unit1
GTIN4046356905473
Custom tariff number85444290

Drawings

Dimensional drawing

Dimensional drawing
Plug, M12 x 1, straight, shielded

Schematic diagram

Schematic diagram
Pin assignment M12 male connector, 4-pos., D-coded, male side

Cable cross section

Cable cross section
Sercos III [93K]

Back to top

Dimensions

Length of cable5 m
Back to top

Ambient conditions

Ambient temperature (operation)-25 °C ... 70 °C (cable, fixed installation)
-25 °C ... 70 °C (cable, flexible installation)
Back to top

General data

Rated voltage48 V AC
60 V DC
Number of positions4
Overvoltage categoryII
Degree of pollution3
Alternative short product descriptionSercos III cable
Back to top

Characteristics head 1

Head typePlug straight M12
Back to top

Standards and Regulations

Flammability rating according to UL 94V0
Back to top

Cable

Cable typeSercos III
Cable type (abbreviation)93K
UL AWM style21694 (60°C / 600 V)
Signal type/categorySercos CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/7; SF/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulationapprox. 1.55 mm
Wire colorsWhite, yellow, blue, orange
Type of pair shieldingAluminum-lined polyester foil
Overall twistStar quad
ShieldingTinned copper braided shield
External sheath, colorsignal red RAL 3020
Outer sheath thicknessapprox. 0.9 mm
External cable diameter D6.5 mm ±0.2 mm
Minimum bending radius, fixed installation3 x D
Minimum bending radius, flexible installation7 x D
Cable weight68 kg/km
Outer sheath, materialPVC
Material, inner sheathPVC
Material conductor insulationPE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 0.5 GΩ*km
Conductor resistance≤ 120 Ω/km
Wave impedance100 Ω ±15 Ω (at 100 MHz)
Signal runtime5.3 ns/m
Coupling resistance≤ 20.00 mΩ/m (at 10 Hz)
Nominal voltage, cable600 V
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Flame resistanceaccording to UL 1685 (CSA FT 4)
Resistance to oilResistant to oil to a limited extent
Other resistanceUV resistant According to UL 1581, Section 1200
Ambient temperature (operation)-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-50 °C ... 70 °C
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027060300
eCl@ss 4.127060300
eCl@ss 5.027060300
eCl@ss 5.127060300
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311
Back to top

ETIM

ETIM 4.0EC000830
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

UNSPSC

UNSPSC 13.231251501
UNSPSC 19.031251501
UNSPSC 20.031251501
UNSPSC 21.031251501
Back to top

ETIM for 1410688 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 5 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -40 °C
Rated voltage (EF000228) 48 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
