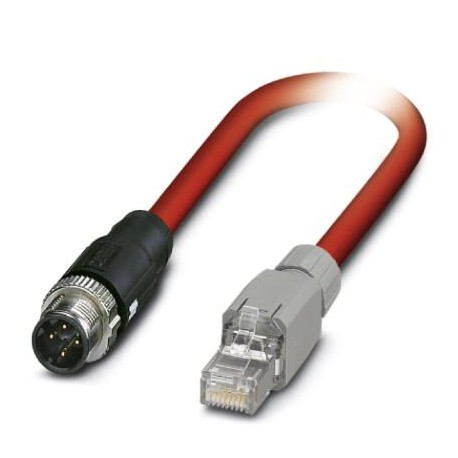

Bus system cable - NBC-MS/ 3,0-93K/R4AQ SCO - 1420517 Sercos III ready-made cable, shielded, star quads, flexible AWG 22 (7 wires), RAL 3020 (traffic red), M12 connector, SPEEDCON, 4 poles in RJ45/IP20 connector, length: 3 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Assembled Sercos III cable, shielded, star quad, 22 AWG stranded (7-wire), RAL 3020 (traffic red), M12 connector, SPEEDCON, 4-pos. to RJ45 connector/IP20, length: 3 m

Key Commercial Data

Orderkey1420517
Packing unit1
GTIN4055626225296
Custom tariff number85444290

Dimensions

Length of cable3 m

Ambient conditions

Ambient temperature (operation)-10 °C ... 60 °C (cable, fixed installation)
-5 °C ... 50 °C (cable, flexible installation)

General data

Rated voltage48 V AC
60 V DC
Number of positions4
Alternative short product descriptionSercos III cable

Characteristics head 1

Head typePlug straight M12 SPEEDCON
No. of positions (pin connector pattern)4

Cable

Cable typeSercos III
Cable type (abbreviation)93K
UL AWM style21694 (60°C / 600 V)
Signal type/categorySercos CAT5 (IEC 11801), 100 Mbps
Cable structure1x4xAWG22/7; SF/TQ
Conductor cross section4x 0.34 mm²
AWG signal line22
Conductor structure signal line7x 0.25 mm
Core diameter including insulationapprox. 1.55 mm
Wire colorsWhite, yellow, blue, orange
Type of pair shieldingAluminum-lined polyester foil
Overall twistStar quad
ShieldingTinned copper braided shield
External sheath, colorsignal red RAL 3020
Outer sheath thicknessapprox. 0.9 mm
External cable diameter D6.5 mm ±0.2 mm
Minimum bending radius, fixed installation3 x D
Minimum bending radius, flexible installation7 x D
Cable weight68 kg/km
Outer sheath, materialPVC
Material, inner sheathPVC
Material conductor insulationPE
Conductor materialTin-plated Cu litz wires
Insulation resistance≥ 0.5 GΩ*km
Conductor resistance≤ 120 Ω/km
Wave impedance100 Ω ±15 Ω (at 100 MHz)
Signal runtime5.3 ns/m
Coupling resistance≤ 20.00 mΩ/m (at 10 Hz)
Nominal voltage, cable600 V
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000 V (50 Hz, 1 min.)
Flame resistanceaccording to UL 1685 (CSA FT 4)
Resistance to oilResistant to oil to a limited extent
Other resistanceUV resistant According to UL 1581, Section 1200
Ambient temperature (operation)-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 60 °C
Ambient temperature (storage/transport)-50 °C ... 70 °C

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 7.027060308
eCl@ss 9.027060308

ETIM

ETIM 7.0EC001262
