NBC-M12MRD/30,0-93C/R4AC 1105804 PHOENIX CONTACT Network cable, PUR/FRNC halogen-free, green RAL 6018, shiel..

NBC-M12MRD/30,0-93C/R4AC

1105804

PHOENIX CONTACT

10 Pcs.

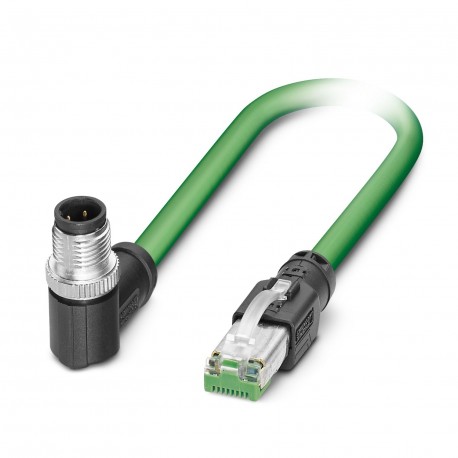

Network cable, PUR/FRNC halogen-free, green RAL 6018, shielded, cable length: 30 m Network cable, PROFINET CAT5 (100 MBit/s), EtherCAT® CAT5 (100 MBit/s), 4-pole, shielded (Advanced Shielding Technology), M12 angled connector, coding: D / IP67, a RJ45 / IP20 straight connector, cable length: 30 m Network cable, PROFINET CAT5 (100 Mbps), EtherCAT® CAT5 (100 Mbps), 4-position, PUR/FRNC halogen-free, green RAL 6018, shielded (Advanced Shielding Technology), Plug angled M12, coding: D / IP67, on Plug straight RJ45 / IP20, cable length: 30 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Notes
GeneralThis product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 10.1 Cord Sets for Balanced Cabling
GeneralFurther products with variable cable type and variable cable length can be found in the accessories section
Product properties
Product typeData cable preassembled
ApplicationStandard
Sensor typePROFINET
Number of positions4
Shieldedyes
Insulation characteristics
Overvoltage categoryI
Degree of pollution2
Interfaces
Bus systemPROFINET
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
EtherCAT® CAT5 (IEC 11801), 100 Mbps
Signaling
Status displayno
Status display presentNo
Electrical properties
Nominal voltage UN48 V AC
60 V DC
Nominal current IN1 A
Transmission mediumCopper
Transmission characteristics (category)CAT5 (IEC 11801:2002)
Material specifications
Flammability rating according to UL 94V2
Connector
Connection 1
TypePlug angled M12 / IP67
Number of positions4
Coding typeD (Data)
Handle colorblack
MaterialCuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip body)
Zinc die-cast, nickel-plated (Screw connection)
FKM (Seal)
Insertion/withdrawal cycles≥ 100
Insulation resistance≥ 100 MΩ
Tightening torque0.4 Nm
Degree of protectionIP67
Ambient temperature (operation)-25 °C ... 90 °C
Connection 2
TypePlug straight RJ45 / IP20
Number of positions4
Handle colorblack
MaterialCuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
PA (Housing)
Insertion/withdrawal cycles≥ 750
Insulation resistance≥ 100 MΩ
Degree of protectionIP20
Ambient temperature (operation)-25 °C ... 80 °C
Cable/line
Cable length30 m
PROFINET drag chain CAT5 [93C]
Dimensional drawingebkbgtwzch.jpg
Cable weight61 kg/km
Number of positions4
Shieldedyes
Cable typePROFINET drag chain CAT5 [93C]
Conductor structure1x4xAWG22/7, SF/TQ
Signal runtime5.3 ns/m
Signal speed0.66 c
Conductor structure signal line7x 0.25 mm
AWG signal line22
Conductor cross section4x 0.34 mm²
Wire diameter incl. insulation1.5 mm
External cable diameter6.50 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colorgreen RAL 6018
Conductor materialTin-plated Cu litz wires
Material wire insulationPE
Single wire, colorwhite, yellow, blue, orange
Thickness, outer sheathapprox. 0.90 mm
Overall twistStar quad
Optical shield covering85 %
Insulation resistance≥ 500 MΩ*km
Coupling resistance≤ 20.00 mΩ/m (at 10 MHz)
Loop resistance≤ 120.00 Ω/km
Wave impedance100 Ω ±15 Ω (at 1 ... 100 MHz)
Nominal voltage, cable600 V (UL rating)
Test voltage Core/Core2000 V (50 Hz, 1 min.)
Test voltage Core/Shield2000.00 V (50 Hz, 1 min.)
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation7.5 x D
Smallest bending radius, fixed installation33 mm
Smallest bending radius, movable installation49 mm
Dynamic load capacity (bending)Max. bending cycles: 3000000, Bending radius: 100 mm, Traversing path: 10 m, Traversing rate: 4 m/s, Acceleration: 4 m/s²
Tensile strength≤ 150 N
Dynamic load capacity (torsion)Torsion: ±30 °/m
Near end crosstalk attenuation (NEXT)80 dB (with 1 MHz)
76 dB (at 4 МHz)
70 dB (at 10 MHz)
65 dB (at 16 MHz)
63 dB (at 20 МHz)
60 dB (at 31.25 МHz)
55 dB (at 62.5 МHz)
50 dB (at 100 MHz)
Shield attenuation2.1 dB (with 1 MHz)
4 dB (at 4 МHz)
6.3 dB (at 10 MHz)
8 dB (at 16 MHz)
9 dB (at 20 МHz)
11.4 dB (at 31.25 МHz)
16.5 dB (at 62.5 МHz)
21.3 dB (at 100 MHz)
Halogen-freeyes
Flame resistanceaccording to IEC 60332-1-2
in accordance with UN ECE-R 118.03
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceUV resistant
Special propertiesElectrical properties in accordance with EN 50288-2-2
Ambient temperature (operation)-40 °C ... 70 °C (cable, fixed installation)
-40 °C ... 70 °C (Cable, flexible installation)
Ambient temperature (installation)-20 °C ... 60 °C
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
IP20
Standards and regulations
M12
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

ETIM for 1105804 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Angled
Cable length (EF000536) 30 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Permitted cable outer temperature during assembling/handling (EF001685) -40 °C
Rated current In (EF008250) 1 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
