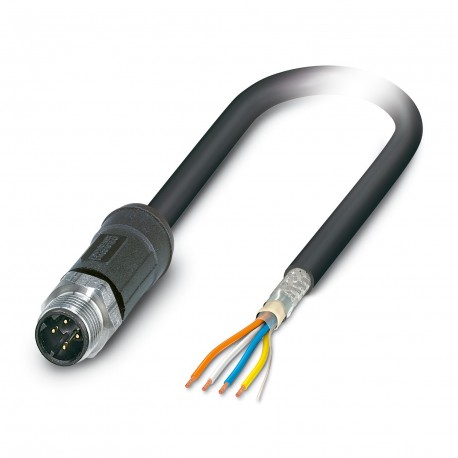

PHOENIX CONTACT NBC-M12MSD/20,0-93X OD NBC-M12MSD/20,0-93X OD 1416035 PHOENIX CONTACT Network cable NBC-M12MSD/20,0-93X OD 1416035 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-M12MSD/20,0-93X OD 1416035 PHOENIX CONTACT Network cable NBC-M12MSD/20,0-93X OD 1416035

NBC-M12MSD/20,0-93X OD

1416035

PHOENIX CONTACT

10 Pcs.

Network cable - NBC-M12MSD/20,0-93X OD - 1416035 Network cable, PROFINET CAT5 (100 MBit/s), Ethernet CAT5 (100 MBit/s), 4-pole halogen-free, shielded, Straight M12 connector, encoding: D / IP65, to free cable end, cable length: 20 m, for outdoor applications, with stainless steel knurling Network cable, PROFINET CAT5 (100 Mbps), Ethernet CAT5 (100 Mbps), 4-position, PE-X halogen-free, black RAL 9005, shielded, Plug straight M12, coding: D / IP65, on free cable end, cable length: 20 m, for outdoor applications, with high-grade steel knurl

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData cable preassembled
ApplicationExternal areas
Sensor typePROFINET
Number of positions4
No. of cable outlets1
Shieldedyes
CodingD
Insulation characteristics
Degree of pollution3
Interfaces
Bus systemPROFINET
Ethernet
Signal type/categoryPROFINET CAT5 (IEC 11801), 100 Mbps
Ethernet CAT5 (IEC 11801), 100 Mbps
Signaling
Status displayno
Status display presentNo
Electrical properties
Nominal voltage UN48 V AC
60 V DC
Nominal current IN4 A
Transmission mediumCopper
Material specifications
Colorblack (RAL 9005)
Flammability rating according to UL 94V0
Seal materialFPM
Connector
Connection 1
TypePlug straight M12 / IP65
Number of positions4 (4)
Coding typeD (Data)
Shieldedyes
Handle colorblack
MaterialCuSn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip body)
Zinc die-cast, nickel-plated (Screw connection)
Degree of protectionIP65
IP68
IP69K
Connection 2
Typefree cable end
Cable/line
Cable length20 m
PROFINET outdoors [93X]
Dimensional drawingjtvtrckflp.jpg
Cable weight81 g/m
Shieldedyes
Cable typePROFINET outdoors [93X]
Conductor structure1x4xAWG22/7, SF/TQ
Signal speed66 c
Conductor structure signal line7x 0.25 mm
AWG signal line22
Conductor cross section4x 0.34 mm²
Wire diameter incl. insulation1.95 mm
External cable diameter7.25 mm ±0.3 mm
Outer sheath, materialPE-X
External sheath, colorblack RAL 9005
Conductor materialsilver-plated Cu litz wires
Material wire insulationPE-X
Single wire, colorwhite-blue, orange-yellow
Thickness, outer sheath≥ 0.80 mm
Overall twistStar quad
Optical shield covering100 %
Max. conductor resistance≤ 54.4 Ω/km
Coupling resistance200.00 mΩ/m (f ≤ 30 MHz)
Wave impedance100 Ω ±5 Ω (f = 100 MHz)
Working capacitance≤ 65 pF (Line-line)
≤ 100 pF (Line-shield)
Nominal voltage, cable300 V AC
Test voltage2000 V AC (50 Hz, 5 minutes)
Minimum bending radius, fixed installation6 x D
Minimum bending radius, flexible installation10 x D
Smallest bending radius, fixed installation44 mm
Smallest bending radius, movable installation73 mm
Shield attenuation40.00 dB (30 MHz ≤ f ≤ 100 MHz)
Halogen-freein accordance with EN 50267-2-1
Flame resistanceEN 60332-1-2
EN 50266
EN 60332-3-25
NF C32-070, 2.1
NF C32-070, 2.2
UL 1685, 12 (FT4)
in accordance with ISO 6722-1 5.22 (UN ECE-R 118.01)
Fume corrosivenessEN 50267-2-2
Fume toxicityBS 6853 B.1
EN 50305, 9.2
Concentration of fumesBS 6853 D.8.7
EN 61034-2
UL 1685, 12 (FT4)
Resistance to oilaccording to IRM 902, 72 h at 100 °C
Fire protection in rail vehiclesBS 6853 (Category Ia, Ib, II)
GM/RT 2130 (Category Ia, Ib, II)
EN 45545 (Risk level HL1 - HL3)
DIN 5510 (Fire protection level 1, 2, 3, 4)
NF F16-101 (Category A1, A2, B)
NF F16-101 (Class C/F0)
NFPA 130
UNI CEI 11170 (Risk level LR1 - LR4)
Other resistanceResistance to fuels (according to IRM 903, 168 h at 70 °C)
Ambient temperature (operation)-50 °C ... 90 °C (cable, fixed installation)
-40 °C ... 90 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 105 °C
-40 °C ... 90 °C (cable, fixed installation)
-25 °C ... 90 °C (Cable, flexible installation)
-40 °C ... 85 °C (On sudden changes in temperature (according to IEC 60512-11-4))
Standards and regulations
M12
Standard designationM12 connector
Standards/specificationsIEC 61076-2-101

ETIM for 1416035 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) Other
Positioning cable feed, field-sided (EF005928) Other
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 20 m
Material of cable sheath (EF004136) Other
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -50 °C
Permitted cable outer temperature during assembling/handling (EF001685) -40 °C
Rated current In (EF008250) 4 A
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP65
