View larger
Images are for illustrative purposes only. Please refer to data sheet for details

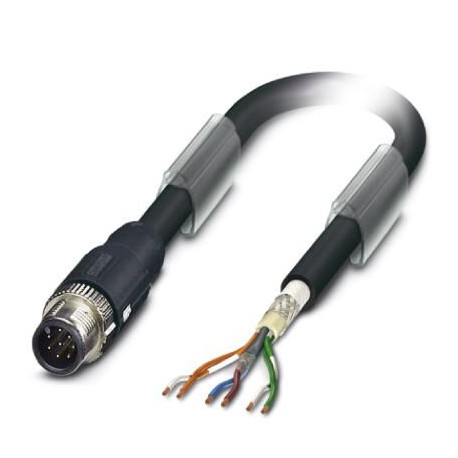

NBC-M12MS/ 5,0-971 VR 1411898 PHOENIX CONTACT Cable bus system VARAN, 6-pin, PVC, black, shielded, Plug stra..
NBC-M12MS/ 5,0-971 VR
1411898
PHOENIX CONTACT
1 Pcs.
Cable bus system VARAN, 6-pin, PVC, black, shielded, Plug straight M12 SPEEDCON, coded, to the end of free cable, cable length: 5 m, a version of the client
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Cable bus system VARAN, 6-pin, PVC, black, shielded, cable length: 5 m, a version of the client
Data commercial
| Key order | One million four hundred eleven thousand eight hundred ninety eight |
|---|---|
| Packing unit | 1 pcs |
| Key selling | BF1CMM - |
| Minimum order quantity | 25 pcs |
| EAN | Four trillion forty six billion three hundred fifty six million nine hundred fifty four thousand forty four |
| Unit weight (excluding packaging) | 312,400 g |
| Tariff number tariff | Eighty five million four hundred forty four thousand two hundred ninety |
| Country of origin | PL (Poland) |
Measures
| Cable length | 5 m |
|---|
Environmental conditions
| Room temperature (service) | -25 °C ... 90 °C (male / female) |
|---|
General data
| Current sizing at 40 °C | 2 To |
|---|---|
| Tension sizing | 30 V AC |
| 30 V DC | |
| Number of poles | Six |
| Signal type/category | VARAN |
| Category surge | II |
| Pollution degree | Three |
| Material contact | CuZn |
| Material support of contacts | TPU GF |
| Material contact surface | Ni/Au |
Standards and specifications
| Class of flammability according to UL 94 | HB |
|---|
Cable
| Type of cable | VARAN |
|---|---|
| Cable type (abbreviation) | Nine hundred seventy one |
| UL AWM Style | 2461 (80 °C/300 V) |
| Signal type/category | VARAN CAT5 (IEC 11801), 100 MBit/s |
| Construction of cable | 1X2X24/32+2X2X24/19; SF/UTP |
| Section of driver | 2x 2x 0.25 mm2 (driver signals) |
| 2x 0.25 mm2 (power supply) | |
| Signal cable AWG | Twenty four |
| Power supply AWG | Twenty four |
| Construction of the driver signal cable | 19x 0.13 mm |
| Construction of the driver voltage supply | 32x 0.10 mm |
| Diameter of the conductors, insulation included | 1.25 mm (driver signals) |
| 1.4 mm (power supply) | |
| Colors driver | blue-yellow, green-orange. red-blue |
| Pair cabling | 2 drivers as a pair |
| Cabling total | 3 pairs with elements of padding around the soul |
| Shielding | Sheet with lined aluminum, mesh of copper wires tinned |
| Cover visual screen | 85 % |
| Outer wrap, color | black |
| Wall thickness outer wrap | 0.9 mm |
| Outer diameter of cable D | 7 mm ±0.2 mm |
| Minimum bending radius, placed in a fixed manner | 4 x D |
| Minimum bending radius, placed in a flexible way | 8 x D |
| Number of bending cycles | Two hundred thousand |
| Radius of curvature, insert drag chains | 5 x D |
| Outer casing, material | PVC |
| Material Insulation conductor | PE |
| Conductive Material | Conductor Cu bare |
| Insulation resistance | ≥ 500 MΩ*km (at 20 °C) |
| Resistance of the conductor | 78 Ω/km (at 20 °C) |
| Capacity of service | approx. 57 nF (at 1 kHz) |
| Transit time of signals | 5,3 ns/m |
| Rated voltage Cable | ≤ 80 V |
| Test voltage Conductor/Conductor | 1000 V |
| Test voltage Conductor/Screen | 1000 V |
| Flame resistance | according to IEC 60332-1-2 |
| Oil resistance | according to DIN en 60811-2-1, 168 h at 100 °C |
| Room temperature (service) | -40 °C ... 80 °C |
| Room temperature (available) | -40 °C ... 80 °C |
| Ambient temperature (storage / transport) | -40 °C ... 80 °C |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Space of time for the intended use (FEUP): 50 years |
| You will find information about hazardous substances in the manufacturer's declaration in the "Downloads"tab |
Ratings
eCl@ss
| eCl@ss 5.1 | Twenty seven million two hundred fifty nine thousand two hundred |
|---|---|
| eCl@ss 6.0 | Twenty seven million two hundred seventy nine thousand two hundred |
| eCl@ss 7.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 8.0 | Twenty seven million two hundred seventy nine thousand two hundred eighteen |
| eCl@ss 9.0 | Twenty seven million sixty thousand three hundred eleven |
ETIM
| ETIM 4.0 | EC000830 |
|---|---|
| ETIM 5.0 | EC001855 |
| ETIM 6.0 | EC001855 |
| ETIM 7.0 | EC001855 |
UNSPSC
| UNSPSC 13.2 | Thirty one million two hundred fifty one thousand five hundred one |
|---|
