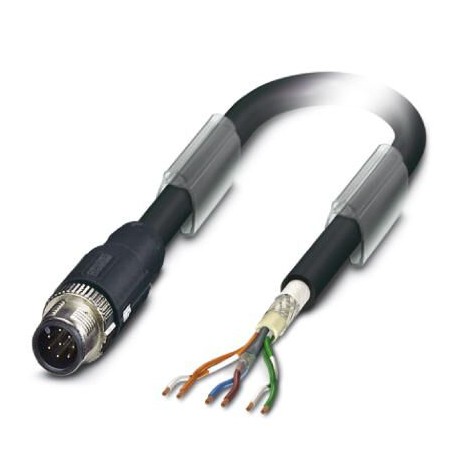

PHOENIX CONTACT NBC-M12MS/ 1,5-971 VR NBC-M12MS/ 1,5-971 VR 1418238 PHOENIX CONTACT Bus system cable NBC-M12MS/ 1,5-971 VR 1418238 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-M12MS/ 1,5-971 VR 1418238 PHOENIX CONTACT Bus system cable NBC-M12MS/ 1,5-971 VR 1418238

NBC-M12MS/ 1,5-971 VR

1418238

PHOENIX CONTACT

25 Pcs.

Bus system cable - NBC-M12MS/ 1,5-971 VR - 1418238

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Bus system cable, VARAN, 6-position, PVC, black, shielded, Plug straight M12 SPEEDCON, A-coded, on free cable end, cable length: 1.5 m, Customer version

Key Commercial Data

Orderkey1418238
Packing unit1
GTIN4055626134017
Custom tariff number85444290

Dimensions

Length of cable1.5 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)

General data

Rated current at 40°C2 A
Rated voltage30 V AC
30 V DC
Number of positions6
Signal type/categoryVARAN
Overvoltage categoryII
Degree of pollution3
Contact materialCuZn
Contact carrier materialTPU GF
Contact surface materialNi/Au

Standards and Regulations

Flammability rating according to UL 94HB

Cable

Cable typeVARAN
Cable type (abbreviation)971
UL AWM style2461 (80°C/300 V)
Signal type/categoryVARAN CAT5 (IEC 11801), 100 Mbps
Cable structure1X2X24/32+2X2X24/19; SF/UTP
Conductor cross section2x 2x 0.25 mm² (Signal line)
2x 0.25 mm² (Power supply)
AWG signal line24
AWG power supply24
Conductor structure signal line19x 0.13 mm
Conductor structure, voltage supply32x 0.10 mm
Core diameter including insulation1.25 mm (Signal line)
1.4 mm (Power supply)
Wire colorsBlue-yellow, green-orange, red-blue
Twisted pairs2 cores to the pair
Overall twist3 pairs with filler elements to the core
ShieldingAluminum-coated foil, tinned copper braided shield
Optical shield covering85 %
External sheath, colorblack
Outer sheath thickness0.9 mm
External cable diameter D7 mm ±0.2 mm
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Number of bending cycles200000
Minimum bending radius, drag chain applications5 x D
Outer sheath, materialPVC
Material conductor insulationPE
Conductor materialBare Cu litz wires
Insulation resistance≥ 500 MΩ*km (at 20 °C)
Conductor resistance78 Ω/km (at 20 °C)
Working capacitanceapprox. 57 nF (at 1 kHz)
Signal runtime5.3 ns/m
Nominal voltage, cable≤ 80 V
Test voltage Core/Core1000 V
Test voltage Core/Shield1000 V
Flame resistanceaccording to IEC 60332-1-2
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
Ambient temperature (operation)-40 °C ... 80 °C
Ambient temperature (installation)-40 °C ... 80 °C
Ambient temperature (storage/transport)-40 °C ... 80 °C

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 5.127250107
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311

ETIM

ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855

UNSPSC

UNSPSC 13.231251501

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
