PHOENIX CONTACT NBC-M12MRD/ 5,0-93P/R4AQ NBC-M12MRD/ 5,0-93P/R4AQ 1417983 PHOENIX CONTACT Assembled Ethernet cable, CAT5e, shielded, 2-pair, 26 AWG, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-M12MRD/ 5,0-93P/R4AQ 1417983 PHOENIX CONTACT Assembled Ethernet cable, CAT5e, shielded, 2-pair, 26 AWG, ..

NBC-M12MRD/ 5,0-93P/R4AQ

1417983

PHOENIX CONTACT

25 Pcs.

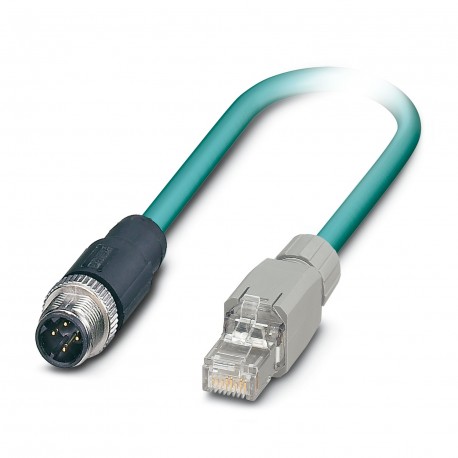

Assembled Ethernet cable, CAT5e, shielded, 2-pair, 26 AWG, stranded (7-wire), RAL 5021 (aqua blue), M12 plug to RJ45 plug/IP20, line, length 5 m Ready-made Ethernet cable, CAT5e, shielded, 2 pairs, flexible AWG 26 (7 wires), RAL 5021 (aqua blue), M12 male connector in RJ45/IP20 male, Line, long. 5 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1417983
Packing unit1
GTIN4055626200491
Custom tariff number85444290

Drawings

Dimensional drawing

Dimensional drawing
RJ45 Push-Pull connector, IP67

Circuit diagram

Circuit diagram
Contact assignment of the M12 and RJ45 plug

Schematic diagram

Schematic diagram
Pin assignment M12 male connector, 4-pos., D-coded, male side

Schematic diagram

Schematic diagram
Connector pin assignment plug RJ45

Back to top

Dimensions

Length of cable5 m
Back to top

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (M12 connector)
-25 °C ... 60 °C (cable, fixed installation)
-5 °C ... 50 °C (cable, flexible installation)
Back to top

General data

Rated voltage48 V AC
60 V DC
Number of positions4
Signal type/categoryEthernet CAT5 (IEC 11801:2002)
Standards/regulationsM12 connector IEC 61076-2-101
Degree of pollution3
Alternative short product descriptionEthernet cable
Contact materialCuSn
Contact carrier materialTPU GF
Contact surface materialNi/Au
Housing materialPlastic
Back to top

Characteristics head 1

Head typePlug angled M12 / IP67
No. of positions (pin connector pattern)4
Colorblack
Material (component)CuZn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Insulation resistance≥ 100 MΩ
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm
Back to top

Characteristics head 2

Head typePlug straight RJ45 Push Pull / IP67
No. of positions (pin connector pattern)4 (8)
Colorblack
Material (component)CuSn (Contact)
Ni/Au (Contact surface)
PC (Contact carriers)
PA GF (Housing)
Insertion/withdrawal cycles≥ 750
Back to top

Standards and Regulations

Standards/specificationsM12 connector IEC 61076-2-101
Flammability rating according to UL 94V2
Back to top

Cable

Cable typeEthernet
Cable type (abbreviation)93P
UL AWM style2654 (90 °C / 300 V)
Signal type/categoryEthernet CAT5 (IEC 11801), 100 Mbps
Cable structure2x2xAWG26/7; SF/UTP
Conductor cross section2x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line7x 0.16 mm
Core diameter including insulation0.98 mm ±0.05 mm
Wire colorswhite/orange-orange, white/green-green
Twisted pairs2 cores to the pair
Type of pair shieldingAluminum-lined polyester foil
Overall twistTwo pairs with two fillers to the core
ShieldingTinned copper braided shield
Optical shield covering85 %
External sheath, colorwater blue RAL 5021
Outer sheath thickness≥ 1 mm
External cable diameter D6.4 mm ±0.2 mm
Smallest bending radius, movable installation25 mm
Tensile strength GRP≤ 40 N
Outer sheath, materialPVC
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance> 5 GΩ*km
Conductor resistance≤ 140 Ω/km
Working capacitance< 56 nF
Wave impedance100 Ω ±5 % (at 100 MHz)
Signal speed0.6 c
Signal runtime0.4 ns/m
Shield attenuation32 dB (up to 100 MHz)
Nominal voltage, cable≤ 300 V AC
≤ 450 V DC
Test voltage Core/Core2500 V DC
Flame resistanceAccording to VW-1
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceResistant to cleaning agents/disinfectants According to ECOLAB F&E/P3-E No. 40-1
Ambient temperature (operation)-40 °C ... 90 °C
Ambient temperature (installation)0 °C ... 50 °C
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.024010400
eCl@ss 4.124010400
eCl@ss 5.019030300
eCl@ss 5.119030300
eCl@ss 6.027061800
eCl@ss 7.027061801
eCl@ss 8.027061801
eCl@ss 9.027061801
Back to top

ETIM

ETIM 5.0EC000830
ETIM 6.0EC000830
ETIM 7.0EC003249
Back to top

UNSPSC

UNSPSC 13.226121604
UNSPSC 18.026121604
UNSPSC 19.026121604
UNSPSC 20.026121604
UNSPSC 21.026121604
Back to top

ETIM for 1417983 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Angled
Cable length (EF000536) 5 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature during assembling/handling (EF001685) -40 °C
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP67
