PHOENIX CONTACT NBC-M12MRD/15,0-93P/R4AQ NBC-M12MRD/15,0-93P/R4AQ 1417986 PHOENIX CONTACT Network cable NBC-M12MRD/15,0-93P/R4AQ 1417986 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-M12MRD/15,0-93P/R4AQ 1417986 PHOENIX CONTACT Network cable NBC-M12MRD/15,0-93P/R4AQ 1417986

NBC-M12MRD/15,0-93P/R4AQ

1417986

PHOENIX CONTACT

15 Pcs.

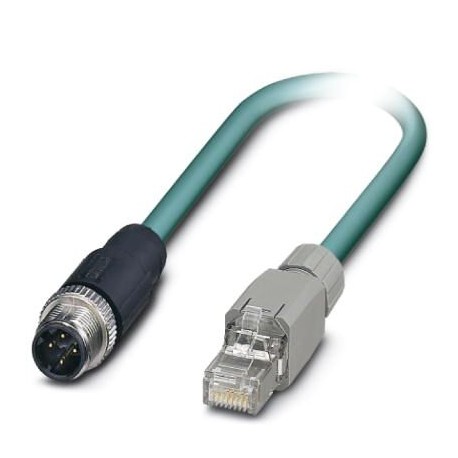

Network cable - NBC-M12MRD/15,0-93P/R4AQ - 1417986 Network cable, CAT5 Ethernet CAT5 (100 MBit/s), 4-pole, M12 angled connector, coding: D / IP67, to RJ45 Push-pull / IP67 straight connector, cable length: 15 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Network cable, Ethernet CAT5 CAT5 (100 Mbps), 4-position, PVC, water blue RAL 5021, Plug angled M12 / IP67, on Plug straight RJ45 Push Pull / IP67, cable length: 15 m

Key Commercial Data

Orderkey1417986
Packing unit1
GTIN4055626200613
Custom tariff number85444290

Dimensions

Length of cable15 m

Ambient conditions

Ambient temperature (operation)-25 °C ... 85 °C (M12 connector)
-25 °C ... 60 °C (cable, fixed installation)
-5 °C ... 50 °C (cable, flexible installation)

General data

Rated voltage48 V AC
60 V DC
Number of positions4
Signal type/categoryEthernet CAT5 (IEC 11801:2002)
Standards/regulationsM12 connector IEC 61076-2-101
Degree of pollution3
Alternative short product descriptionEthernet cable
Contact materialCuSn
Contact carrier materialTPU GF
Contact surface materialNi/Au
Housing materialPlastic

Characteristics head 1

Head typePlug angled M12 / IP67
No. of positions (pin connector pattern)4
Colorblack
Material (component)CuZn (Contact)
Ni/Au (Contact surface)
PA (Contact carriers)
TPU, hardly inflammable, self-extinguishing (Grip)
Zinc die-cast, nickel-plated (Screw connection)
Insulation resistance≥ 100 MΩ
Insertion/withdrawal cycles≥ 100
Torque0.4 Nm

Characteristics head 2

Head typePlug straight RJ45 Push Pull / IP67
No. of positions (pin connector pattern)4 (8)
Colorblack
Material (component)CuSn (Contact)
Ni/Au (Contact surface)
PC (Contact carriers)
PA GF (Housing)
Insertion/withdrawal cycles≥ 750

Standards and Regulations

Standard designationM12 connector
Standards/regulationsIEC 61076-2-101
Flammability rating according to UL 94V2

Cable

Cable typeEthernet
Cable type (abbreviation)93P
UL AWM style2654 (90 °C / 300 V)
Signal type/categoryEthernet CAT5 (IEC 11801), 100 Mbps
Cable structure2x2xAWG26/7; SF/UTP
Conductor cross section2x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line7x 0.16 mm
Core diameter including insulation0.98 mm ±0.05 mm
Wire colorswhite/orange-orange, white/green-green
Twisted pairs2 cores to the pair
Type of pair shieldingAluminum-lined polyester foil
Overall twistTwo pairs with two fillers to the core
ShieldingTinned copper braided shield
Optical shield covering85 %
External sheath, colorwater blue RAL 5021
Outer sheath thickness≥ 1 mm
External cable diameter D6.4 mm ±0.2 mm
Smallest bending radius, movable installation25 mm
Tensile strength GRP≤ 40 N
Outer sheath, materialPVC
Material conductor insulationPP
Conductor materialBare Cu litz wires
Insulation resistance> 5 GΩ*km
Conductor resistance≤ 140 Ω/km
Working capacitance< 56 nF
Wave impedance100 Ω ±5 % (at 100 MHz)
Signal speed0.6 c
Signal runtime0.4 ns/m
Shield attenuation32 dB (up to 100 MHz)
Nominal voltage, cable≤ 300 V AC
≤ 450 V DC
Test voltage Core/Core2500 V DC
Flame resistanceAccording to VW-1
Resistance to oilin accordance with DIN EN 60811-2-1
Other resistanceResistant to cleaning agents/disinfectants According to ECOLAB F&E/P3-E No. 40-1
Ambient temperature (operation)-40 °C ... 90 °C
Ambient temperature (installation)0 °C ... 50 °C

Environmental Product Compliance

REACh SVHCLead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications

eCl@ss

eCl@ss 5.119030300
eCl@ss 6.027061800
eCl@ss 7.027061801
eCl@ss 8.027061801
eCl@ss 9.027061801

ETIM

ETIM 5.0EC000830
ETIM 6.0EC000830
ETIM 7.0EC003249

UNSPSC

UNSPSC 13.226121604

ETIM for 1417986 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 4
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Male (plug)
Positioning cable feed, box-sided (EF005927) Angled
Cable length (EF000536) 15 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Other
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature during assembling/handling (EF001685) -40 °C
Rated voltage (EF000228) 48 V
Degree of protection (IP) (EF005474) IP67

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
