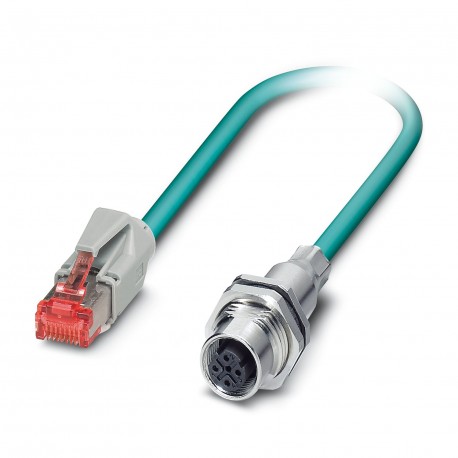

NBC-M12FSBPS-R4AC-93E/0,5-OR 1408357 PHOENIX CONTACT Network cable
NBC-M12FSBPS-R4AC-93E/0,5-OR
1408357
PHOENIX CONTACT
1 Pcs.
Network cable
Ready-made Ethernet cable, CAT5e, shielded, 2 pairs, flexible AWG 26 (7 wire), RAL 5021 (aqua blue), M12 built-in mount female, SPEEDCOM backwall mount/bolted mount to RJ45/IP20 male connector, Line, length 0.5 m
Assembled Ethernet cable, CAT5e, shielded, 2 pairs, AWG26 flexible (7 wires), RAL 5021 (sea blue), M12 flush mounting socket, SPEEDCON rear/screw mounting on RJ45/IP20 plug, Line, 0.5 m length
Cables > Circular connector, mounting (with cable)
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Mechanical characteristics
| Number of positions | 4 |
|---|---|
| Shielded | yes |
| Insertion/withdrawal cycles | ≥ 100 |
| Cable diameter | 6.70 mm |
| Cable outlet | straight |
| Cable structure | 2x2xAWG26/7; SF/UTP |
| Degree of protection | IP20 |
| No. of cable outlets | 1 |
Ambient conditions
| Ambient temperature (operation) | -25 °C ... 60 °C (cable, fixed installation) |
|---|---|
| -5 °C ... 60 °C (cable, flexible installation) |
Electrical characteristics
| Rated voltage (III/3) | 72 V (DC) |
|---|---|
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
Line characteristics
| Cable type | Ethernet |
|---|---|
| Cable structure | 2x2xAWG26/7 PIMF |
| Conductor cross section | 2x 2x 0.14 mm² |
| AWG signal line | 26 |
| Conductor structure signal line | 7x 0.15 mm |
| Core diameter including insulation | ≤ 1.05 mm |
| External cable diameter | 6.7 mm |
| Wire colors | white/orange-orange, white/green-green |
| External sheath, color | water blue RAL 5021 |
| Transmission medium | Copper |
| Insulation resistance | ≥ 5 GΩ*km |
| Conductor resistance | ≤ 150 Ω/km |
| Transmission characteristics (category) | CAT5 (IEC 11801:2002) |
| Working capacitance | 42 pF |
| Wave impedance | 100 Ω ±5 % (at 100 MHz) |
| Signal speed | 0.72 c |
| Shield attenuation | 60 dB (up to 1000 MHz) |
| Coupling resistance | 5.00 mΩ/m (at 10 MHz) |
| Nominal voltage, cable | max. 125 V |
| Test voltage, cable | 1000 V |
| Twisted pairs | 2 cores to the pair |
| Type of pair shielding | Aluminum-lined polyester foil |
| Overall twist | Two pairs with two fillers to the core |
| Shielding | Tinned copper braided shield |
| Outer sheath, material | PUR |
| Material conductor insulation | Cell PE |
| Conductor material | Bare Cu litz wires |
| Cable weight | 42 kg/km |
| Smallest bending radius, movable installation | 34 mm |
| Special properties | Free of substances which would hinder coating with paint or varnish |
| Flame resistance | complying with IEC 60332-2-2 |
| Halogen-free | complying with IEC 60754-1/2 |
| Resistance to oil | in accordance with DIN EN 60811-2-1 |
| Other resistance | Microbe resistance as per VDE 0282 section 10 |
| Hydrolysis resistance as per DIN 53504 | |
| Ambient temperature (operation) | -40 °C ... 70 °C (cable, fixed installation) |
| -10 °C ... 50 °C (cable, flexible installation) |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127269200eCl@ss 6.027269200eCl@ss 7.027060308eCl@ss 8.027060308eCl@ss 9.027060308
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 4 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 0.5 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -20 °C |
| Rated current In (EF008250) | 2 A |
| Rated voltage (EF000228) | 48 V |
| Degree of protection (IP) (EF005474) | Other |
