View larger
Images are for illustrative purposes only. Please refer to data sheet for details

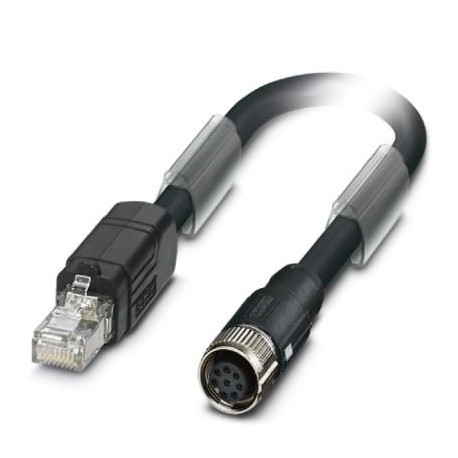

NBC-M12FS/1,5-971/R4AQ VR 1412401 PHOENIX CONTACT Network cable
NBC-M12FS/1,5-971/R4AQ VR
1412401
PHOENIX CONTACT
50 Pcs.
Network cable
Ready-made VARAN cable, shielded, flexible, black, M12 female connector, straight, SPEEDCON, 6 pin in RJ45/IP20 connector, QUICKON, length: 1.5 m
Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1412401 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356962384 |
| Weight per Piece (excluding packing) | 142.900 g |
| Custom tariff number | 85444290 |
| Country of origin | PL (Poland) |
Ambient conditions
| Degree of protection | IP20 |
|---|---|
| Ambient temperature (operation) | 0 °C ... 50 °C (for installation) |
| -20 °C ... 80 °C (cable, fixed installation) | |
| -25 °C ... 90 °C (Plug / socket) |
General data
| Rated current at 40°C | 2 A |
|---|---|
| Rated voltage | 30 V |
| Number of positions | 6 |
| Overvoltage category | I |
| Degree of pollution | 1 |
| Rated voltage (III/3) | 72 V (DC) |
| Contact material | CuZn |
| Contact carrier material | TPU GF |
| Contact surface material | Ni/Au |
Cable
| Cable type | VARAN |
|---|---|
| Cable type (abbreviation) | 971 |
| UL AWM style | 2461 (80°C/300 V) |
| Signal type/category | VARAN CAT5 (IEC 11801), 100 Mbps |
| Cable structure | 1X2X24/32+2X2X24/19; SF/UTP |
| Conductor cross section | 2x 2x 0.25 mm² (Signal line) |
| 2x 0.25 mm² (Power supply) | |
| AWG signal line | 24 |
| AWG power supply | 24 |
| Conductor structure signal line | 19x 0.13 mm |
| Conductor structure, voltage supply | 32x 0.10 mm |
| Core diameter including insulation | 1.25 mm (Signal line) |
| 1.4 mm (Power supply) | |
| Wire colors | Blue-yellow, green-orange, red-blue |
| Twisted pairs | 2 cores to the pair |
| Overall twist | 3 pairs with filler elements to the core |
| Shielding | Aluminum-coated foil, tinned copper braided shield |
| Optical shield covering | 85 % |
| External sheath, color | black |
| Outer sheath thickness | 0.9 mm |
| External cable diameter D | 7 mm ±0.2 mm |
| Minimum bending radius, fixed installation | 4 x D |
| Minimum bending radius, flexible installation | 8 x D |
| Number of bending cycles | 200000 |
| Minimum bending radius, drag chain applications | 5 x D |
| Outer sheath, material | PVC |
| Material conductor insulation | PE |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | ≥ 500 MΩ*km (at 20 °C) |
| Conductor resistance | 78 Ω/km (at 20 °C) |
| Working capacitance | approx. 57 nF (at 1 kHz) |
| Signal runtime | 5.3 ns/m |
| Nominal voltage, cable | ≤ 80 V |
| Test voltage Core/Core | 1000 V |
| Test voltage Core/Shield | 1000 V |
| Flame resistance | according to IEC 60332-1-2 |
| Resistance to oil | According to DIN EN 60811-2-1, 168 h at 100°C |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (installation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Classifications
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 6 |
| Type of electrical connection, field-sided (EF005525) | Other |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | M12 |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Positioning cable feed, box-sided (EF005927) | Straight |
| Cable length (EF000536) | 1.5 m |
| Material of cable sheath (EF004136) | Polyvinyl chloride (PVC) |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Black |
| With LED indication (EF005950) | No |
| Screened (EF000881) | Yes |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | Other |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Rated current In (EF008250) | 2 A |
| Rated voltage (EF000228) | 30 V |
| Degree of protection (IP) (EF005474) | Other |
