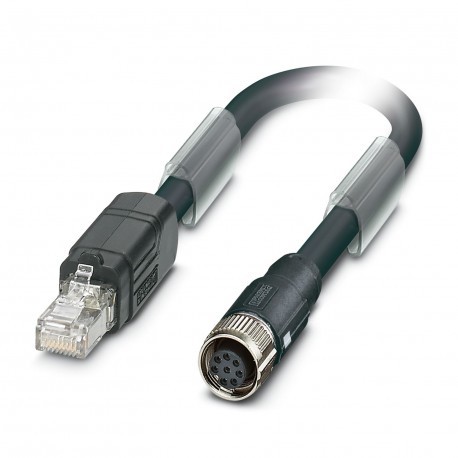

PHOENIX CONTACT NBC-M12FS/12,5-971/R4AQ VR NBC-M12FS/12,5-971/R4AQ VR 1412809 PHOENIX CONTACT Network cable NBC-M12FS/12,5-971/R4AQ VR 1412809 View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-M12FS/12,5-971/R4AQ VR 1412809 PHOENIX CONTACT Network cable NBC-M12FS/12,5-971/R4AQ VR 1412809

NBC-M12FS/12,5-971/R4AQ VR

1412809

PHOENIX CONTACT

10 Pcs.

Network cable - NBC-M12FS/12,5-971/R4AQ VR - 1412809 Network cable, protection index: IP20, cable length: 12.5 m, number of poles: 6, CAT5, color: black, VARAN Network cable, degree of protection: IP20, cable length: 12.5 m, number of positions: 6, 100 Mbps, CAT5, color: black, VARAN

Automation > Sensor-actuator patch cord
Field Device Connectors (FDC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeData cable preassembled
TypeM12
Sensor typeVARAN
Number of positions6
No. of cable outlets1
Shieldedyes
CodingA
Data management status
Article revision09
Insulation characteristics
Overvoltage categoryI
Degree of pollution1
Electrical properties
Rated voltage (III/3)72 V (DC)
Contact resistance≤ 5 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN30 V
Nominal current IN2 A
Transmission mediumCopper
Transmission characteristics (category)CAT5 (IEC 11801:2002)
Transmission speed100 Mbps
Material specifications
Colorblack
MaterialPC
PA
Flammability rating according to UL 94V0
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Contact materialCuZn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material for screw connectionZinc die-cast, nickel-plated
Outer sheath, materialSANTOPRENE halogen-free
Connector
Connection 1
TypeSocket straight M12
Locking typeSPEEDCON
Coding typeA
Insertion/withdrawal cycles≥ 100
Degree of protectionIP65/IP67
Connection 2
TypePlug straight RJ45
Insertion/withdrawal cycles≥ 750
Degree of protectionIP20
Cable/line
Cable length12.50 m
VARAN PVC [971]
UL AWM Style2461 (80°C/300 V)
Number of positions6
Shieldedyes
Cable typeVARAN PVC [971]
Conductor structure1x2x24/32+2x2x24/19, SF/UTP
Signal runtime5.3 ns/m
Conductor structure signal line19x 0.13 mm
AWG signal line24
Conductor cross section2x 2x 0.25 mm² (Signal line)
2x 0.25 mm² (Power supply)
Wire diameter incl. insulation1.25 mm (Signal line)
1.4 mm (Power supply)
External cable diameter7.00 mm ±0.2 mm
Outer sheath, materialPVC
External sheath, colorblack
Conductor materialBare Cu litz wires
Material wire insulationPE
Single wire, colorblue-yellow, green-orange, red-blue
Thickness, outer sheath0.90 mm
Twisted pairs2 cores to the pair
Overall twist3 pairs with filler elements to the core
Optical shield covering85 %
Max. conductor resistance78 Ω/km (at 20 °C)
Insulation resistance≥ 500 MΩ*km (at 20 °C)
Working capacitanceapprox. 57 nF (at 1 kHz)
Nominal voltage, cable≤ 80 V
Test voltage Core/Core1000 V
Test voltage Core/Shield1000.00 V
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Smallest bending radius, fixed installation28 mm
Smallest bending radius, movable installation56 mm
Dynamic load capacity (bending)Max. bending cycles: 200000, Bending radius: 5 x D
Flame resistanceaccording to IEC 60332-1-2
Resistance to oilAccording to DIN EN 60811-2-1, 168 h at 100°C
Ambient temperature (operation)-40 °C ... 80 °C
Ambient temperature (installation)-40 °C ... 80 °C
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP20
IP20
Ambient temperature (operation)0 °C ... 50 °C (for installation)
-20 °C ... 80 °C (cable, fixed installation)
-25 °C ... 90 °C (Plug / socket)

ETIM for 1412809 Sensors (EC001855)
Feature Name Feature Value
Number of poles (EF001391) 6
Type of electrical connection, field-sided (EF005525) Other
Type of plug-in contact, field sided (EF006269) Male (plug)
Positioning cable feed, field-sided (EF005928) Straight
Type of electrical connection, box-sided (EF005524) M12
Type of plug-in contact, box-sided (EF008386) Female (bus)
Positioning cable feed, box-sided (EF005927) Straight
Cable length (EF000536) 12.5 m
Material of cable sheath (EF004136) Polyvinyl chloride (PVC)
Halogen free (EF000025) Yes
Colour cable sheath (EF008249) Black
With LED indication (EF005950) No
Screened (EF000881) Yes
Vulcanize (EF004115) No
Material contact body (EF008248) Other
Material of contact surface (EF004020) Other
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Rated current In (EF008250) 2 A
Rated voltage (EF000228) 30 V
Degree of protection (IP) (EF005474) Other

Product Datasheet
