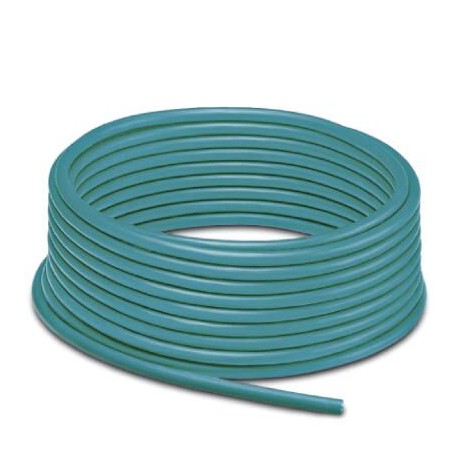

PHOENIX CONTACT NBC-500,0-94E NBC-500,0-94E 1408572 PHOENIX CONTACT Cable ring, bus system cable, Ethernet, 8-wire, shielded, FRNC, blue o.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-500,0-94E 1408572 PHOENIX CONTACT Cable ring, bus system cable, Ethernet, 8-wire, shielded, FRNC, blue o..

NBC-500,0-94E

1408572

PHOENIX CONTACT

1 Pcs.

Cable ring, bus system cable, Ethernet, 8-wire, shielded, FRNC, blue outer sheath, 4 x 2 x AWG 23/1, cable length: 500 m Cable ring, CAT7 Ethernet (10 GBit/s), 8-pole halogen-free, shielded, cable length: 500 m

Cables > Data and communication cable
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1408572
Packing unit1
GTIN4046356826396
Custom tariff number85444995

Drawings

Cable cross section

Cable cross section
Ethernet [94E]

Back to top

Dimensions

Length of cable500 m
Back to top

General data

Rated voltage30 V AC
30 V DC
Number of positions8
Signal type/categoryEthernet CAT7, 10 Gbps
Back to top

Cable

Cable typeEthernet
Cable type (abbreviation)94E
UL AWM style10797 (80°C/30 V)
Signal type/categoryEthernet CAT7, 10 Gbps
Cable structure4x2xAWG23/1; S/FTP
Conductor cross section4x 2x 0.3 mm²
AWG signal line23
Conductor structure signal line1x
Core diameter including insulation1.45 mm ±0.05 mm
Wire colorsWhite-blue, white-orange, white-green, white-brown
Twisted pairs2 cores to the pair
Type of pair shieldingAluminum-lined polyester foil
Overall twist4 pairs, twisted
ShieldingAluminum-lined polyester foil, tinned copper braided shield
Optical shield covering65 %
External sheath, colorwater blue RAL 5021
External cable diameter D8 mm ±0,3 mm
Smallest bending radius, fixed installation30 mm
Smallest bending radius, movable installation60 mm
Tensile strength GRP80 N
Cable weight55 kg/km
Copper weight32.8 kg/km
Outer sheath, materialFRNC
Material conductor insulationFoamed PE
Conductor materialBare Cu wire
Insulation resistance> 5 GΩ*km
Conductor resistance< 75 Ω/km
Cable capacity< 56 nF/km
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Signal speed0.6 c
Signal runtime5.7 ns/m
Cable impedance< 5 mΩ (with 1 MHz)
< 5 mΩ (at 10 MHz)
< 30 mΩ (at 30 MHz)
< 100 mΩ (at 100 MHz)
Nominal voltage, cable30 V AC
Test voltage Core/Core2500 V DC
Flame resistanceaccording to IEC 60332-3-24 (Cat. C )
Halogen-freeAccording to IEC 60754-2
Resistance to oilaccording to IEC 60811-2-1
Concentration of fumesin accordance with IEC 61034
Ambient temperature (operation)-20 °C ... 80 °C (Cable)
Ambient temperature (installation)0 °C ... 50 °C
Back to top

Environmental Product Compliance

REACh SVHC
Lead 7439-92-1
China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Back to top

Classifications

eCl@ss

eCl@ss 4.027060300
eCl@ss 4.127060300
eCl@ss 5.027061800
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311
Back to top

ETIM

ETIM 3.0EC001855
ETIM 4.0EC002599
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

UNSPSC

UNSPSC 6.0131251501
UNSPSC 7.090131251501
UNSPSC 1131251501
UNSPSC 12.0131251501
UNSPSC 13.231251501
UNSPSC 19.031251501
UNSPSC 20.031251501
UNSPSC 21.031251501
Back to top

ETIM for 1408572 Cable (EC003249)
Feature Name Feature Value
Conductor surface (EF010804) Other
Diameter conductor (EF001621) 1.45 mm
Nominal cross section conductor (EF000060) 0.3 mm²
Conductor category (EF001632) Class 1 = solid
Number of cores (EF001792) 8
Material core insulation (EF000061) Other
Specification core insulation (EF011805) Other
Core identification (EF000067) Other
Screen over stranding element (EF001623) Foil + braiding
Stranding (EF003802) Other
Longitudinal water blocking cable (EF011011) No
Radial water blocking cable (EF011012) No
Suitable for underground installation (EF003689) No
Protective sheath (EF001691) None
Material outer sheath (EF001625) Other
Specification material outer sheath (EF011806) Other
Colour outer sheath (EF001618) Other
Low smoke according to EN IEC 61034-2 (EF003799) No
Oil resistant according to EN IEC 60811-404 (EF009770) No
Outer diameter approx. (EF003921) 8 mm
Min. permitted bending radius, moving application/free movement (EF011802) 60 mm
Min. permitted bending radius, stationary application/permanent installation (EF011803) 30 mm
Permitted cable outer temperature after assembling without vibration (EF001686) -20 °C
Category (EF001619) Other
