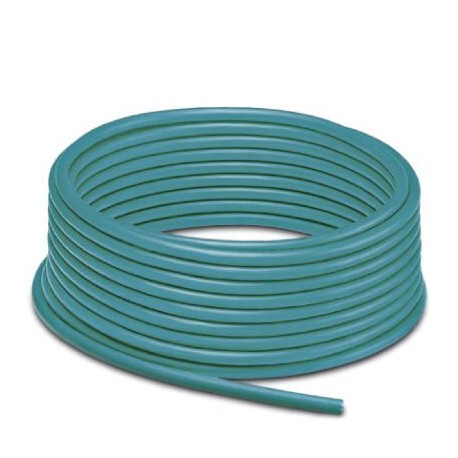

PHOENIX CONTACT NBC-500,0-93E NBC-500,0-93E 1413181 PHOENIX CONTACT Cable ring, bus system cable, Ethernet, 4-wire, shielded, FRNC, blue o.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

NBC-500,0-93E 1413181 PHOENIX CONTACT Cable ring, bus system cable, Ethernet, 4-wire, shielded, FRNC, blue o..

NBC-500,0-93E

1413181

PHOENIX CONTACT

1 Pcs.

Cable ring, bus system cable, Ethernet, 4-wire, shielded, FRNC, blue outer sheath, 2 x 2 x 26/7 AWG, cable length: 500 m Cable ring, CAT5 Ethernet, CAT5 Ethernet, 4-pole halogen-free, shielded, cable length: 500 m

Cables > Data and communication cable
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1413181
Packing unit1
GTIN4046356989442
Custom tariff number85444995

Drawings

Cable cross section

Cable cross section
PUR ETHERNET 2x2 FLEX [93E]

Back to top

Dimensions

Length of cable500 m
Back to top

Ambient conditions

Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Back to top

General data

Rated voltage30 V AC
30 V DC
Number of positions4
Signal type/categoryEthernet CAT5 (IEC 11801:2002)
Ethernet CAT5 (TIA 568B:2001)
Back to top

Standards and Regulations

Flame resistanceIEC 60332-1-2
Resistance to oilin accordance with DIN EN 60811-2-1
Halogen-freeaccording to IEC 60754-1
Back to top

Cable

Cable typePUR ETHERNET 2x2 FLEX
Cable type (abbreviation)93E
UL AWM style20963 (80°C/30 V)
Signal type/categoryEthernet CAT5 (IEC 11801), 100 Mbps
Cable structure2x2xAWG26/7; SF/UTP
Conductor cross section2x 2x 0.14 mm²
AWG signal line26
Conductor structure signal line7x 0.16 mm
Core diameter including insulation0.98 mm
Wire colorswhite/orange-orange, white/green-green
Twisted pairs2 cores to the pair
Overall twistTwo pairs with two fillers to the core
ShieldingAluminum-coated foil, tinned copper braided shield
Optical shield covering70 %
External sheath, colorwater blue RAL 5021
Outer sheath thickness1.2 mm
External cable diameter D6.4 mm ±0.2 mm
Minimum bending radius, fixed installation4 x D
Minimum bending radius, flexible installation8 x D
Tensile strength GRP≤ 80 N
Cable weight42 kg/km
Outer sheath, materialPUR
Material conductor insulationFoamed PE
Conductor materialBare Cu litz wires
Standards/specificationsElectrical requirements EN 50288-2-2
Insulation resistance≥ 500 MΩ*km
Loop resistance≤ 290.00 Ω/km
Cable capacityapprox. 45 nF/km (at 1 kHz)
Wave impedance100 Ω ±5 Ω (at 100 MHz)
Near end crosstalk attenuation (NEXT)65.3 dB (with 1 MHz)
56.3 dB (at 4 МHz)
50.3 dB (at 10 MHz)
47.2 dB (at 16 MHz)
45.8 dB (at 20 МHz)
42.9 dB (at 31.25 МHz)
38.4 dB (at 62.5 МHz)
35.3 dB (at 100 MHz)
Power-summated near end crosstalk attenuation (PSNEXT)62.3 dB (with 1 MHz)
53.3 dB (at 4 МHz)
47.3 dB (at 10 MHz)
44.2 dB (at 16 MHz)
42.8 dB (at 20 МHz)
39.9 dB (at 31.25 МHz)
35.4 dB (at 62.5 МHz)
32.3 dB (at 100 MHz)
Attenuation3.2 dB (with 1 MHz)
6 dB (at 4 МHz)
9.5 dB (at 10 MHz)
12.1 dB (at 16 MHz)
13.6 dB (at 20 МHz)
17.1 dB (at 31.25 МHz)
24.8 dB (at 62.5 МHz)
32 dB (at 100 MHz)
Return loss (RL)23 dB (at 4 МHz)
24.1 dB (at 8 МHz)
25 dB (at 10 MHz)
25 dB (at 16 MHz)
25 dB (at 20 МHz)
23.6 dB (at 31.25 МHz)
21.5 dB (at 62.5 МHz)
20.1 dB (at 100 MHz)
Signal runtime5.3 ns/m
Coupling resistance≤ 100.00 mΩ/m (at 10 MHz)
Nominal voltage, cable≤ 100 V (Peak value, not for high-power applications)
Test voltage Core/Core700 V (50 Hz, 1 min.)
Test voltage Core/Shield700 V (50 Hz, 1 min.)
Current carrying capacity of cable2 A (according to DIN VDE 0891-1)
Flame resistanceaccording to IEC 60332-1-2
in acc. to UL VW1
Halogen-freeaccording to IEC 60754-1
Resistance to oilaccording to EN 60811-2-1
Ambient temperature (operation)-40 °C ... 80 °C (cable, fixed installation)
-20 °C ... 80 °C (cable, flexible installation)
Ambient temperature (installation)-20 °C ... 80 °C
Ambient temperature (storage/transport)-20 °C ... 80 °C
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027060300
eCl@ss 4.127060300
eCl@ss 5.027061800
eCl@ss 5.127061800
eCl@ss 6.027279200
eCl@ss 7.027279218
eCl@ss 8.027279218
eCl@ss 9.027060311
Back to top

ETIM

ETIM 4.0EC000830
ETIM 5.0EC001855
ETIM 6.0EC001855
ETIM 7.0EC001855
Back to top

UNSPSC

UNSPSC 13.231251501
UNSPSC 19.031251501
UNSPSC 20.031251501
UNSPSC 21.031251501
Back to top

ETIM for 1413181 Cable (EC003249)
Feature Name Feature Value
Conductor surface (EF010804) Other
Diameter conductor (EF001621) 0.98 mm
Nominal cross section conductor (EF000060) 0.14 mm²
Conductor category (EF001632) Class 2 = stranded
Number of cores (EF001792) 4
Material core insulation (EF000061) Other
Specification core insulation (EF011805) Other
Core identification (EF000067) Other
Screen over stranding element (EF001623) Foil + braiding
Stranding (EF003802) Other
Longitudinal water blocking cable (EF011011) No
Radial water blocking cable (EF011012) No
Suitable for underground installation (EF003689) No
Protective sheath (EF001691) None
Material outer sheath (EF001625) Other
Specification material outer sheath (EF011806) Other
Colour outer sheath (EF001618) Other
Low smoke according to EN IEC 61034-2 (EF003799) No
Oil resistant according to EN IEC 60811-404 (EF009770) No
Outer diameter approx. (EF003921) 6.4 mm
Min. permitted bending radius, moving application/free movement (EF011802) 52 mm
Min. permitted bending radius, stationary application/permanent installation (EF011803) 26 mm
Permitted cable outer temperature during assembling/handling (EF001685) -20 °C
Permitted cable outer temperature after assembling without vibration (EF001686) -40 °C
Category (EF001619) Other

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
