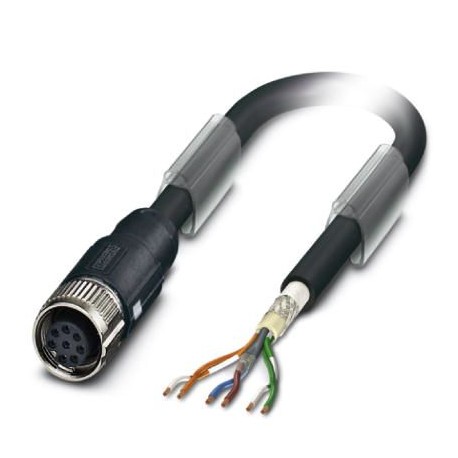

NBC-20,0-971/M12FS VR 1027358 PHOENIX CONTACT Bus system cable
NBC-20,0-971/M12FS VR
1027358
PHOENIX CONTACT
50 Pcs.
Bus system cable
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲General data
| Rated current at 40°C | 2 A |
|---|---|
| Rated voltage | 48 V AC |
| 60 V DC | |
| Number of positions | 6 |
| Signal type/category | VARAN |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Contact material | CuZn |
| Contact carrier material | TPU GF |
| Contact surface material | Ni/Au |
Cable
| Cable type | VARAN |
|---|---|
| Cable type (abbreviation) | 971 |
| UL AWM style | 2461 (80°C/300 V) |
| Signal type/category | VARAN CAT5 (IEC 11801), 100 Mbps |
| Cable structure | 1X2X24/32+2X2X24/19; SF/UTP |
| Conductor cross section | 2x 2x 0.25 mm² (Signal line) |
| 2x 0.25 mm² (Power supply) | |
| AWG signal line | 24 |
| AWG power supply | 24 |
| Conductor structure signal line | 19x 0.13 mm |
| Conductor structure, voltage supply | 32x 0.10 mm |
| Core diameter including insulation | 1.25 mm (Signal line) |
| 1.4 mm (Power supply) | |
| Wire colors | Blue-yellow, green-orange, red-blue |
| Twisted pairs | 2 cores to the pair |
| Overall twist | 3 pairs with filler elements to the core |
| Shielding | Aluminum-coated foil, tinned copper braided shield |
| Optical shield covering | 85 % |
| External sheath, color | black |
| Outer sheath thickness | 0.9 mm |
| External cable diameter D | 7 mm ±0.2 mm |
| Minimum bending radius, fixed installation | 4 x D |
| Minimum bending radius, flexible installation | 8 x D |
| Number of bending cycles | 200000 |
| Minimum bending radius, drag chain applications | 5 x D |
| Outer sheath, material | PVC |
| Material conductor insulation | PE |
| Conductor material | Bare Cu litz wires |
| Insulation resistance | ≥ 500 MΩ*km (at 20 °C) |
| Conductor resistance | 78 Ω/km (at 20 °C) |
| Working capacitance | approx. 57 nF (at 1 kHz) |
| Signal runtime | 5.3 ns/m |
| Nominal voltage, cable | ≤ 80 V |
| Test voltage Core/Core | 1000 V |
| Test voltage Core/Shield | 1000 V |
| Flame resistance | according to IEC 60332-1-2 |
| Resistance to oil | According to DIN EN 60811-2-1, 168 h at 100°C |
| Ambient temperature (operation) | -40 °C ... 80 °C |
| Ambient temperature (installation) | -40 °C ... 80 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
