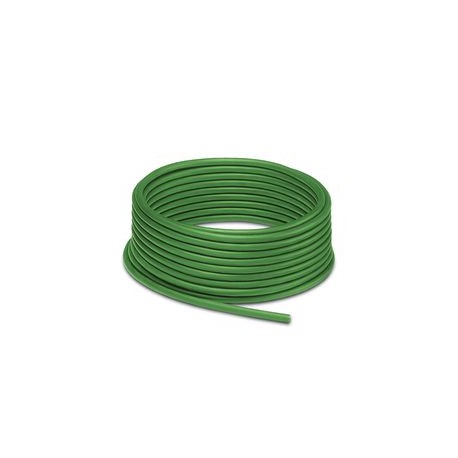

NBC-100,0- 99B 1583504 PHOENIX CONTACT By meters, Cable ring, Single Pair Ethernet (1 GBit/s), shielded, hal..
NBC-100,0-99B
1583504
PHOENIX CONTACT
1 Pcs.
By meters, Cable ring, Single Pair Ethernet (1 GBit/s), shielded, halogen-free PUR, green, 2-conductors (1 x 2 x AWG 22/7, S/FTP), single conductor color: white, blue, cable length: 100 m
Network cable
By the meter, Cable reel, Single Pair Ethernet (1 Gbps), shielded, PUR halogen-free, green, 2-wire (1 x 2 x AWG 22/7, S/FTP), color single wire: white, blue, cable length: 100 m
Cables > Data and communication cable
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Technical data
Product properties
| Product type | Data cable by the meter |
| Sensor type | Single Pair Ethernet |
| Number of positions | 2 |
| Application | Standard |
| Shielded | yes |
Electrical properties
| Nominal voltage UN | 72 V DC |
| Transmission medium | Copper |
Connection data
| Cross section AWG | (converted acc. to IEC) |
Interfaces
| Bus system | Ethernet |
| Signal type/category | Single Pair Ethernet, 1 Gbps |
Cable/line
| Cable length | 100 m |
| Single Pair Ethernet PUR flexible, green [99B] | |
| Dimensional drawing |  |
| Shielded | yes |
| UL AWM Style | 20233 (80°C/300 V) |
| Cable weight | 42 kg/km |
| Cable type | Single Pair Ethernet PUR flexible, green |
| Short symbol | 02YS(ST)C11Y |
| Cable type (abbreviation) | 99B |
| Signal type/category | Single Pair Ethernet, 1 Gbps |
| Cable structure | 1 x 2 x AWG 22/7, S/FTP |
| External cable diameter | 5.8 mm ±0.3 mm |
| Outer sheath, material | PUR |
| External sheath, color | green |
| Thickness, outer sheath | 0.8 mm |
| Conductor material | Bare Cu litz wires |
| Conductor structure signal line | 7x |
| AWG signal line | 22 |
| Conductor cross section | 2x 0.34 mm² |
| Material wire insulation | Foamed PE |
| Wire diameter incl. insulation | 1.8 mm |
| Single wire, color | white, blue |
| Twisted pairs | 2 cores to the pair |
| Overall twist | 1 pair with fillers twisted horizontally |
| Shielding | Aluminum-coated foil, tinned copper braided shield |
| Optical shield covering | 90 % |
| Nominal voltage, cable | ≤ 100 V |
| Test voltage Core/Core | 1000 V (50 Hz, 1 min.) |
| Test voltage Core/Shield | 1000 V (50 Hz, 1 min.) |
| Cable insulation resistance | ≥ 5 GΩ*km |
| Wave impedance | 100 Ω ±5 Ω (at 100 MHz) |
| Loop resistance | ≤ 120.00 Ω/km |
| Cable capacity | 48 nF/km |
| Minimum bending radius, fixed installation | 4 x D |
| Minimum bending radius, flexible installation | 8 x D |
| Resistance to oil | in accordance with DIN EN 60811-404 |
| Flame resistance | according to IEC 60332-1-2 |
| Ambient temperature (operation) | -25 °C ... 80 °C (Cable, flexible installation) |
| -40 °C ... 80 °C (cable, fixed installation) | |
| Feature Name | Feature Value |
|---|---|
| Conductor surface (EF010804) | Other |
| Diameter conductor (EF001621) | 1.8 mm |
| Nominal cross section conductor (EF000060) | 0.34 mm² |
| Conductor category (EF001632) | Class 2 = stranded |
| Number of cores (EF001792) | 2 |
| Material core insulation (EF000061) | Other |
| Specification core insulation (EF011805) | Other |
| Core identification (EF000067) | Other |
| Screen over stranding element (EF001623) | Foil + braiding |
| Stranding (EF003802) | Other |
| Longitudinal water blocking cable (EF011011) | No |
| Radial water blocking cable (EF011012) | No |
| Suitable for underground installation (EF003689) | No |
| Protective sheath (EF001691) | None |
| Material outer sheath (EF001625) | Other |
| Specification material outer sheath (EF011806) | Other |
| Colour outer sheath (EF001618) | Green |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Outer diameter approx. (EF003921) | 5.8 mm |
| Min. permitted bending radius, moving application/free movement (EF011802) | 47 mm |
| Min. permitted bending radius, stationary application/permanent installation (EF011803) | 24 mm |
| Permitted cable outer temperature during assembling/handling (EF001685) | -25 °C |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -40 °C |
| Category (EF001619) | Other |
