View larger
Images are for illustrative purposes only. Please refer to data sheet for details

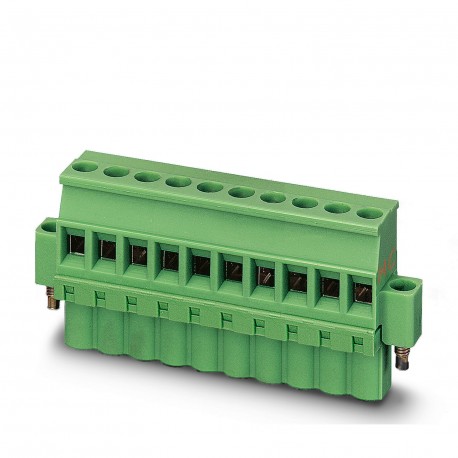

MVSTBW 2,5/ 8-STF-5,08AUPAW/OL 1848231 PHOENIX CONTACT Connector for printed circuit board, nominal current:..
MVSTBW 2,5/ 8-STF-5,08AUPAW/OL
1848231
PHOENIX CONTACT
500 Pcs.
Connector for printed circuit board, nominal current: 12 A, number of poles: 8, pitch: 5,08 mm, type of connection: Connection by screw with capsule-wheel drive, color: green, surface, contacts: Gold
Connector for printed circuit board, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Gold, contact type: Female, number of potentials: 4, number of rows: 1, number of poles: 8, number of connections: 4, family of articles: MVSTBW 2.5/.. -STF, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, connection direction conductor/printed circuit board: -90 °, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: Screw locking, fixing type: Air clamping (screw), packaging type: boxed
PCB connector, nominal cross-section: 2.5 mm2, color: green, rated current: 12 A, rated voltage (III/2): 320 V, contact surface: Au, contact type: socket, number of potentials: 4, number of rows: 1, number of poles: 8, number of terminals: 4, article family: MVSTBW 2,5/.. -STF, Pitch: 5.08 mm, Connection type: Screw connection with pull sleeve, Screw attack shape: L Longitudinal slot, Connection direction conductor/board: -90 °, Locking hook: - Snap-in hook, Plug-in system: COMBICON MSTB 2.5, Locking: Screw lock, Fastening type: Screw flange, Packaging type: packed in carton
Cables > Cable connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Product Type | PCB Connectors |
| Product family | MVSTBW 2.5/.. -STF |
| Product Line | COMBICON Connectors M |
| Number of poles | 8 |
| Grid dimension | 5.08 mm |
| Number of ports | 4 |
| Number of rows | 1 |
| Number of potentials | 4 |
| Mounting Flange | Screw flange |
| Data maintenance status | |
| Article revision | 01 |
| Nominal current IN | 12 A |
| Rated voltage UN | 320 V |
| Rated voltage (III/3) | 250 V |
| Rated Surge Voltage (III/3) | 4 kV |
| Rated voltage (III/2) | 320 V |
| Rated Surge Voltage (III/2) | 4 kV |
| Rated voltage (II/2) | 630 V |
| Rated Surge Voltage (II/2) | 4 kV |
| Connection technology | |
| Design | DeviceNet compliant component |
| Connector system | COMBICON MSTB 2.5 |
| Nominal cross-section | 2.5 mm² |
| Contact type | Socket |
| Locking | |
| Lock type | Screw lock |
| Mounting Flange | Screw flange |
| Tightening torque | 0.3 Nm |
| Conductor connection | |
| Connection type | Screw connection with pull sleeve |
| Connection direction conductor/circuit board | -90 ° |
| Conductor cross-section rigid | 0.2 mm² ... 2.5 mm² |
| Flexible conductor cross-section | 0.2 mm² ... 2.5 mm² |
| Conductor cross-section AWG | 24 ... 12 |
| Flexible conductor cross-section with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² |
| Flexible conductor cross-section with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm² |
| 2 conductors of the same cross-section rigid | 0.2 mm² ... 1 mm² |
| 2 conductors of the same cross-section flexible | 0.2 mm² ... 1.5 mm² |
| 2 conductors of the same cross-section flexible with ferrule without plastic sleeve | 0.25 mm² ... 1 mm² |
| 2 conductors of the same cross-section flexible with TWIN ferrule with plastic sleeve | 0.5 mm² ... 1.5 mm² |
| Gauge mandrel a x b / diameter | 2.8 mm x 2.0 mm / 2.4 mm |
| Stripping length | 7 mm |
| Drive Form Screw Head | Longitudinal slot (L) |
| Tightening torque | 0.5 Nm ... 0.6 Nm |
| Information on ferrules without insulating collar | |
| Recommended crimping pliers | 1212034 CRIMPFOX 6 |
| Information on ferrules with insulating collar | |
| Recommended crimping pliers | 1212034 CRIMPFOX 6 |
| Material information - Contact | |
| Note | WEEE/RoHS compliant, whisker-free according to IEC 60068-2-82/JEDEC JESD 201 |
| Material Contact | Cu alloy |
| Surface finish | partially gold-plated |
| Metal surface clamping point (top layer) | Tin (4 - 8 μm Sn) |
| Metal Surface Clamping Point (Interlayer) | Nickel (2 - 3 μm Ni) |
| Metal Surface Contact Area (Top Layer) | Gold (0.8 - 1.4 μm Au) |
| Metal Surface Contact Area (Interlayer) | Nickel (2 - 3 μm Ni) |
| Material specifications - Housing | |
| Color (Housing) | Green (6021) |
| Insulating material | PA |
| Insulating material group | I |
| CTI according to IEC 60112 | 600 |
| Flammability class according to UL 94 | V0 |
| Glow wire flammability index GWFI according to EN 60695-2-12 | 850 |
| Glow wire ignition temperature GWIT according to EN 60695-2-13 | 775 |
| Temperature of the ball pressure test according to EN 60695-10-2 | 125 °C |
| Dimensional drawing |  |
| Grid dimension | 5.08 mm |
| Width [w] | 50.8 mm |
| Height [h] | 26 mm |
| Length [l] | 12.6 mm |
| Flange | |
| Tightening torque | 0.3 Nm |
| Note on operation | COMBICON connectors are connectors without switching capacity (COC) in accordance with DIN EN 61984. When used as intended, they must not be plugged in or disconnected in a live or under load. |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 100 °C (depending on the derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (storage/transport) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Clearance and creepage distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulating material group | I |
| Tracking resistance (DIN EN 60112 (VDE 0303-11)) | CTI 600 |
| Rated insulation voltage (III/3) | 250 V |
| Rated Surge Voltage (III/3) | 4 kV |
| Minimum air distance value - inhomogeneous field (III/3) | 3 mm |
| Minimum value of the creepage distance (III/3) | 3.2 mm |
| Rated insulation voltage (III/2) | 320 V |
| Rated Surge Voltage (III/2) | 4 kV |
| Minimum value of the air distance - inhomogeneous field (III/2) | 3 mm |
| Minimum value of the creepage distance (III/2) | 3 mm |
| Rated insulation voltage (II/2) | 630 V |
| Rated Surge Voltage (II/2) | 4 kV |
| Minimum value of the clearance - inhomogeneous field (II/2) | 3 mm |
| Minimum value of the creepage distance (II/2) | 3.2 mm |
| Packaging type | packed in carton |
| Feature Name | Feature Value |
|---|---|
| Type of connection (EF000064) | Other |
| Contact type (EF001587) | Bus |
| Number of poles (EF001391) | 4 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Angle contact/conductor connection (EF007546) | Other |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Connectable conductor cross section fine-strand without cable end sleeve (EF007341) | 0.2 mm² |
| Connectable conductor cross section fine-strand with cable end sleeve (EF007339) | 0.25 mm² |
| Connectable conductor cross section solid-core (EF007337) | 0.2 mm² |
| Type of electric connection (EF003961) | Screw connection |
| Connectable cable type (EF006816) | Tubular cable |
| Material of contact surface (EF004020) | Gold |
| Material contact (EF007544) | Copper |
| Material insulation body (EF007543) | Polyamide (PA) |
| Housing material (EF001596) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
