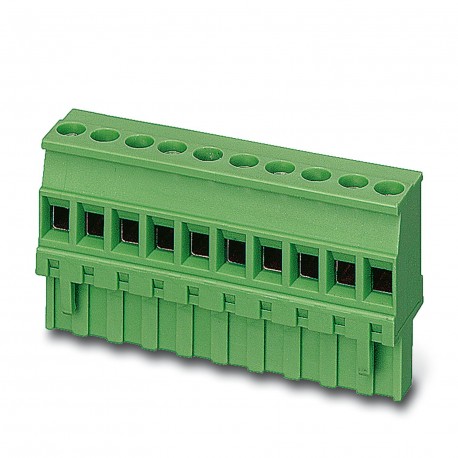

PHOENIX CONTACT MVSTBR 2,5/ 2-ST-5,087035BDNZ4 MVSTBR 2,5/ 2-ST-5,087035BDNZ4 1090208 PHOENIX CONTACT Connector for printed circuit board, number of poles:.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MVSTBR 2,5/ 2-ST-5,087035BDNZ4 1090208 PHOENIX CONTACT Connector for printed circuit board, number of poles:..

MVSTBR 2,5/ 2-ST-5,087035BDNZ4

1090208

PHOENIX CONTACT

1000 Pcs.

Connector for printed circuit board, number of poles: 2, pitch: 5,08 mm, color: light grey Connector for printed circuit board, nominal section: 2.5 mm², color: luminous gray, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of rows: 1, number of poles: 2, family of articles: MVSTBR 2.5/.. -ST, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, connection direction conductor/printed circuit board: 90 °, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: without, fixing type: without, packaging type: boxed PCB connector, nominal cross-section: 2.5 mm2, colour: light grey, rated current: 12 A, rated voltage (III/2): 320 V, contact surface: Sn, contact type: socket, number of rows: 1, number of poles: 2, article family: MVSTBR 2.5/.. -ST, Pitch: 5.08 mm, Connection type: Screw connection with pull sleeve, Screw attack shape: L Longitudinal slot, Connection direction conductor/board: 90 °, Locking hook: - Locking hook, Plug-in system: COMBICON MSTB 2.5, Locking: without, Fastening type: without, Packaging type: packed in a carton

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product TypePCB Connectors
Product familyMVSTBR 2.5/.. -ST
Product LineCOMBICON Connectors M
Number of poles2
Grid dimension5.08 mm
Number of rows1
Data maintenance status
Article revision01
Nominal current IN12 A
Rated voltage UN320 V
Contact resistance2.5 mΩ
Rated voltage (III/3)250 V
Rated Surge Voltage (III/3)4 kV
Rated voltage (III/2)320 V
Rated Surge Voltage (III/2)4 kV
Rated voltage (II/2)630 V
Rated Surge Voltage (II/2)4 kV
Connection technology
Connector systemCOMBICON MSTB 2.5
Nominal cross-section2.5 mm²
Contact typeSocket
Locking
Lock typewithout
Mounting Flangewithout
Conductor connection
Connection typeScrew connection with pull sleeve
Connection direction conductor/circuit board90 °
Conductor cross-section rigid0.2 mm² ... 2.5 mm²
Flexible conductor cross-section0.2 mm² ... 2.5 mm²
Conductor cross-section AWG24 ... 12
Flexible conductor cross-section with ferrule without plastic sleeve0.25 mm² ... 2.5 mm²
Flexible conductor cross-section with ferrule with plastic sleeve0.25 mm² ... 2.5 mm²
2 conductors of the same cross-section rigid0.2 mm² ... 1 mm²
2 conductors of the same cross-section flexible0.2 mm² ... 1.5 mm²
2 conductors of the same cross-section flexible with ferrule without plastic sleeve0.25 mm² ... 1 mm²
2 conductors of the same cross-section flexible with TWIN ferrule with plastic sleeve0.5 mm² ... 1.5 mm²
Gauge mandrel a x b / diameter2.8 mm x 2.0 mm / 2.4 mm
Stripping length7 mm
Drive Form Screw HeadLongitudinal slot (L)
Tightening torque0.5 Nm ... 0.6 Nm
Information on ferrules without insulating collar
Recommended crimping pliers1212034 CRIMPFOX 6
Information on ferrules with insulating collar
Recommended crimping pliers1212034 CRIMPFOX 6
Material information - Contact
NoteWEEE/RoHS compliant, whisker-free according to IEC 60068-2-82/JEDEC JESD 201
Material ContactCu alloy
Surface finishhot-dip tin-plated
Metal surface clamping point (top layer)Tin (4 - 8 μm Sn)
Metal Surface Contact Area (Top Layer)Tin (4 - 8 μm Sn)
Material specifications - Housing
Color (Housing)Light Grey (7035)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature of the ball pressure test according to EN 60695-10-2125 °C
Dimensional drawing
Grid dimension5.08 mm
Width [w]10.16 mm
Height [h]26 mm
Length [l]17.7 mm
Note on operationCOMBICON connectors are connectors without switching capacity (COC) in accordance with DIN EN 61984. When used as intended, they must not be plugged in or disconnected in a live or under load.
Inspection for conductor damage and loosening
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultExam passed
Tensile testing
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Conductor cross-section/Conductor type/Tensile force Setpoint/Actual value0.2 mm² / rigid / > 10 N
0.2 mm² / flexible / > 10 N
2.5 mm² / rigid / > 50 N
2.5 mm² / flexible / > 50 N
Mating and pulling forces
Test SpecificationDIN EN 60512-13-2:2006-11
ResultExam passed
Number of cycles25
Insertion force per pole approx.8 N
Pulling force per pole approx.6 N
Torque Testing
Test SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Durability of inscriptions
Test SpecificationDIN EN 60068-2-70:1996-07
ResultExam passed
Polarization and Coding
Test SpecificationDIN EN 60512-13-5:2006-11
ResultExam passed
Visual inspection
Test SpecificationDIN EN 60512-1-1:2003-01
ResultExam passed
Dimensional inspection
Test SpecificationDIN EN 60512-1-2:2003-01
ResultExam passed
Vibration testing
Test SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
Frequency10 - 150 - 10 Hz
Sweep Speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Test duration per axis2.5 h
Test DirectionsX, Y and Z axis
Durability test
Test SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Standing Shock Stress at Sea Level4.8 kV
Contact resistance R12.5 mΩ
Contact resistance R22.5 mΩ
Mating cycles25
Insulation Resistance Adjacent Poles> 5 MΩ
Climatic testing
Test SpecificationDIN EN ISO 6988:1997-03
Corrosion stress0.2 dm3SO2to 300 DM3/40 °C/1 cycle
Heat stress100 °C/168 h
Standing AC voltage2.21 kV
Environmental conditions
Ambient temperature (operating)-40 °C ... 100 °C (depending on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Thermal Testing Test Group C
Test SpecificationDIN EN 60512-5-1:2003-01
Tested number of poles12
Insulation resistance
Test SpecificationDIN EN 60512-3-1:2003-01
Insulation Resistance Adjacent Poles> 5 MΩ
Clearance and creepage distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupI
Tracking resistance (DIN EN 60112 (VDE 0303-11))CTI 600
Rated insulation voltage (III/3)250 V
Rated Surge Voltage (III/3)4 kV
Minimum air distance value - inhomogeneous field (III/3)3 mm
Minimum value of the creepage distance (III/3)3.2 mm
Rated insulation voltage (III/2)320 V
Rated Surge Voltage (III/2)4 kV
Minimum value of the air distance - inhomogeneous field (III/2)3 mm
Minimum value of the creepage distance (III/2)3 mm
Rated insulation voltage (II/2)630 V
Rated Surge Voltage (II/2)4 kV
Minimum value of the clearance - inhomogeneous field (II/2)3 mm
Minimum value of the creepage distance (II/2)3.2 mm
Packaging typepacked in carton
