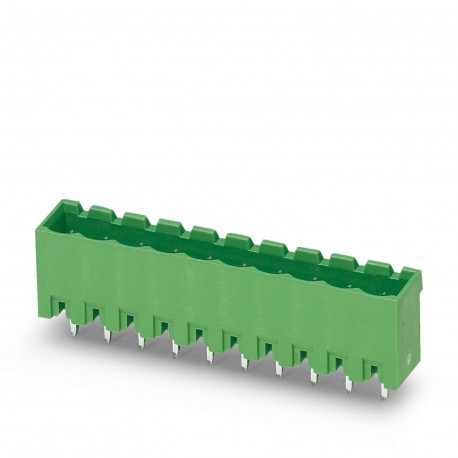

View larger
Images are for illustrative purposes only. Please refer to data sheet for details
MSTBVA 2,5/ 9-G BK PIN13,9 1740093 PHOENIX CONTACT Printed-circuit board connector
MSTBVA 2,5/ 9-G BK PIN13,9
1740093
PHOENIX CONTACT
50 Pcs.
Printed-circuit board connector
PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 9, pitch: 5 mm, color: black, contact surface: Tin, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 13.9 mm
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1740093 |
|---|---|
| Packing unit | 1 pc |
| Minimum order quantity | 50 pc |
| GTIN | 4046356288521 |
| Weight per Piece (excluding packing) | 5.090 g |
| Custom tariff number | 85366930 |
| Country of origin | PL (Poland) |
Back to top
Back to top
Back to top
Back to top
Back to top
Back to top
Dimensions
| Length [ l ] | 8.57 mm |
|---|---|
| Width | 47 mm |
| Pitch | 5 mm |
| Dimension a | 40 mm |
| Width [ w ] | 47 mm |
| Height [ h ] | 25.9 mm |
| Height | 12 mm |
| Length of the solder pin | 13.9 mm |
| Pin dimensions | 1 x 1 mm |
| Length | 8.57 mm |
General
| Range of articles | MSTBVA 2,5/..-G |
|---|---|
| Rated voltage (III/3) | 250 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 12 A |
| Color | black |
| Number of positions | 9 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
Classifications
eCl@ss
| eCl@ss 4.0 | 272607xx |
|---|---|
| eCl@ss 4.1 | 27260701 |
| eCl@ss 5.0 | 27260701 |
| eCl@ss 5.1 | 27260700 |
| eCl@ss 6.0 | 27260700 |
| eCl@ss 7.0 | 27440402 |
| eCl@ss 8.0 | 27440402 |
| eCl@ss 9.0 | 27440402 |
UNSPSC
| UNSPSC 6.01 | 30211810 |
|---|---|
| UNSPSC 7.0901 | 39121409 |
| UNSPSC 11 | 39121409 |
| UNSPSC 12.01 | 39121409 |
| UNSPSC 13.2 | 39121409 |
| UNSPSC 19.0 | 39121409 |
