View larger
Images are for illustrative purposes only. Please refer to data sheet for details

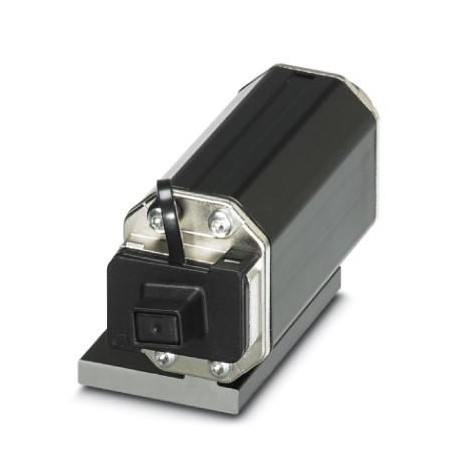

VS-MP-PPC/CG-PO 1403681 PHOENIX CONTACT Coupling
VS-MP-PPC/CG-PO
1403681
PHOENIX CONTACT
1 Pcs.
Coupling
Multi-port Power connection: Push-pull Power, for passive PROFINET wiring to robots, incl. mounting foot
Cables > Data and communication cable
Field Device Connectors (FDC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1403681 |
|---|---|
| Packing unit | 1 pc |
| Note | Made to Order (non-returnable) |
| Catalog page | Page 365 (C-2-2017) |
| GTIN | 4046356664301 |
| Weight per Piece (excluding packing) | 288.300 g |
| Custom tariff number | 85366990 |
| Country of origin | DE (Germany) |
General data
| Rated current at 40°C | 16 A |
|---|---|
| Rated voltage | 24 V |
| Connection method | Spring-cage connection |
| Housing material | Aluminum press-drawn section / die-cast zinc |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 10.0.119179290eCl@ss 4.0272607xxeCl@ss 4.127260701eCl@ss 5.027260701eCl@ss 5.127061800eCl@ss 6.019179200eCl@ss 7.019179290eCl@ss 8.019179290eCl@ss 9.019179290
| Feature Name | Feature Value |
|---|---|
| Conductor surface (EF010804) | Other |
| Stranding (EF003802) | Other |
| Longitudinal water blocking cable (EF011011) | No |
| Radial water blocking cable (EF011012) | No |
| Suitable for underground installation (EF003689) | No |
| Protective sheath (EF001691) | None |
| Specification material outer sheath (EF011806) | Other |
| Low smoke according to EN IEC 61034-2 (EF003799) | No |
| Oil resistant according to EN IEC 60811-404 (EF009770) | No |
| Category (EF001619) | Other |
