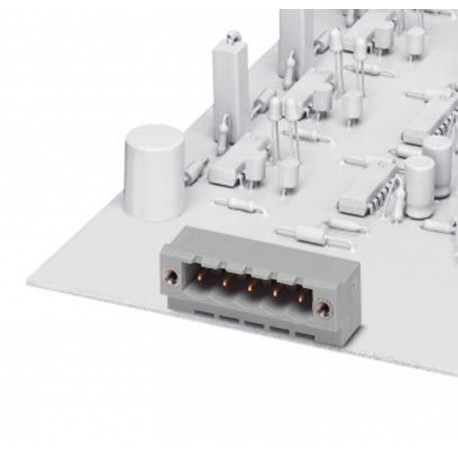

PHOENIX CONTACT MSTBW 2,5/ 5-GF-5,08 4,45 ABAU MSTBW 2,5/ 5-GF-5,08 4,45 ABAU 1845112 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MSTBW 2,5/ 5-GF-5,08 4,45 ABAU 1845112 PHOENIX CONTACT Printed-circuit board connector

MSTBW 2,5/ 5-GF-5,08 4,45 ABAU

1845112

PHOENIX CONTACT

50 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 2.5 mm², color: agate gray, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Gold, contact type: Male, number of potentials: 5, number of rows: 1, number of poles: 5, number of connections: 5, family of articles: MSTBW 2.5/.. -GF(4.45), pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: Screw lock, fixing type: Air clamping (thread), packaging type: boxed packaging, Golden contact surface / colour: Grey RAL 7038 PCB headers, nominal cross section: 2.5 mm2, color: agate gray, nominal current: 12 A, rated voltage (III/2): 320 V, contact surface: Au, contact connection type: Pin, number of potentials: 5, number of rows: 1, number of positions: 5, number of connections: 5, product range: MSTBW 2,5/..-GF(4,45), pitch: 5.08 mm, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2,5, Pin connector pattern alignment: Standard, locking: Screw locking mechanism, mounting: Threaded flange, type of packaging: packed in cardboard, Gold-plated contact surface / color: Gray RAL 7038

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typePCB headers
Product familyMSTBW 2,5/..-GF(4,45)
Product lineCOMBICON Connectors Special
TypeComponents DeviceNet compatible
Number of positions5
Pitch5.08 mm
Number of connections5
Number of rows1
Number of potentials5
Mounting flangeThreaded flange
Pin layoutLinear pinning
Solder pins per potential1
Data management status
Article revision04
Electrical properties
Nominal current IN12 A
Nominal voltage UN320 V
Rated voltage (III/3)250 V
Rated surge voltage (III/3)4 kV
Rated voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
Rated voltage (II/2)400 V
Rated surge voltage (II/2)4 kV
Mounting
Mounting typeWave soldering
Pin layoutLinear pinning
Material specifications
Material data - contact
NoteWEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu alloy
Surface characteristicsCompletely gold-plated
Metal surface contact area (top layer)Gold (0.8 - 1.4 µm Au)
Metal surface contact area (middle layer)Nickel (2 - 4 µm Ni)
Metal surface soldering area (top layer)Gold (0.8 - 1.4 µm Au)
Metal surface soldering area (middle layer)Nickel (2 - 4 µm Ni)
Material data - housing
Color (Housing)agate gray (7038)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability rating according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature for the ball pressure test according to EN 60695-10-2125 °C
Notes
Notes on operationIn accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load.
Dimensions
Dimensional drawingzzyynvpzer.jpg
Pitch5.08 mm
Width [w]25.4 mm
Height [h]15.92 mm
Length [l]12 mm
Installed height12.42 mm
Solder pin length [P]3.5 mm
Pin dimensions1 x 1 mm
PCB design
Hole diameter1.4 mm
Electrical tests
Air clearances and creepage distances
Insulating material groupI
Rated insulation voltage (III/3)250 V
Rated surge voltage (III/3)4 kV
Rated insulation voltage (III/2)320 V
Rated surge voltage (III/2)4 kV
Rated insulation voltage (II/2)400 V
Rated surge voltage (II/2)4 kV
Environmental and real-life conditions
Ambient conditions
Ambient temperature (operation)-40 °C ... 100 °C (dependent on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (assembly)-5 °C ... 100 °C
Packaging specifications
Type of packagingpacked in cardboard

ETIM for 1845112 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 5
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Gold
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
