PHOENIX CONTACT MSTBVA 2,5/ 6-G BK PIN15,5 MSTBVA 2,5/ 6-G BK PIN15,5 1805986 PHOENIX CONTACT PCB headers, nominal current: 12 A, rated voltage (III/2).. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

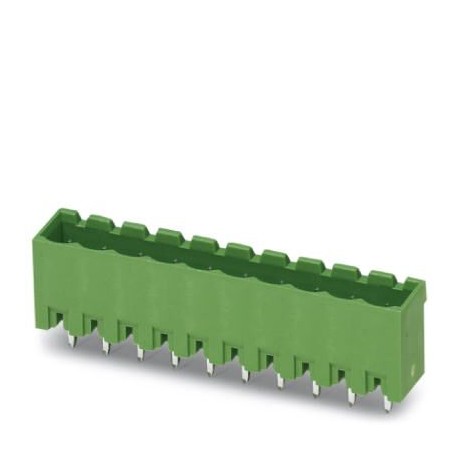

MSTBVA 2,5/ 6-G BK PIN15,5 1805986 PHOENIX CONTACT PCB headers, nominal current: 12 A, rated voltage (III/2)..

MSTBVA 2,5/ 6-G BK PIN15,5

1805986

PHOENIX CONTACT

50 Pcs.

PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 6, pitch: 5 mm, color: black, contact surface: Tin, mounting: Wave soldering Printed circuit board base case, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 6, number of rows: 1, number of poles: 6, number of connections: 6, family of articles: MSTBVA 2.5/.. -G, pitch: 5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 15.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1805986
Packing unit1 pc
GTIN4046356689052
Weight per Piece (excluding packing)2.800 g
Custom tariff number85366930
Country of originDE (Germany)

Drawings

Diagram

Diagram
Type: MSTB 2,5/...-ST with MSTBVA 2,5/...-G

Diagram

Diagram
Type: SMSTB 2,5/...-ST with MSTBVA 2,5/...-G

Diagram

Diagram
Type: FKCT 2,5/...-ST with MSTBVA 2,5/...-G

Diagram

Diagram
Type: MSTBT 2,5/...-ST with MSTBVA 2,5/...-G

Diagram

Diagram
Type: MSTBP 2,5/...-ST with MSTBVA 2,5/...-G

Diagram

Diagram
Type: FKCN 2,5/...-ST with MSTBVA 2,5/...-G

Diagram

Diagram
Type: FKCV(W/R) 2,5/...-ST with MSTBVA 2,5/...-G

Back to top

Dimensions

Pitch5 mm
Pin dimensions1 x 1 mm
Back to top

General

Range of articlesMSTBVA 2,5/..-G
Colorblack
Number of positions6
Back to top

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Back to top

Classifications

eCl@ss

eCl@ss 4.027260700
eCl@ss 4.127260700
eCl@ss 5.027260700
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

UNSPSC

UNSPSC 6.0130211810
UNSPSC 7.090139121409
UNSPSC 1139121409
UNSPSC 12.0139121409
UNSPSC 13.239121409
UNSPSC 18.039121409
UNSPSC 19.039121409
UNSPSC 20.039121409
UNSPSC 21.039121409
Back to top

ETIM for 1805986 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 6
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 15.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
