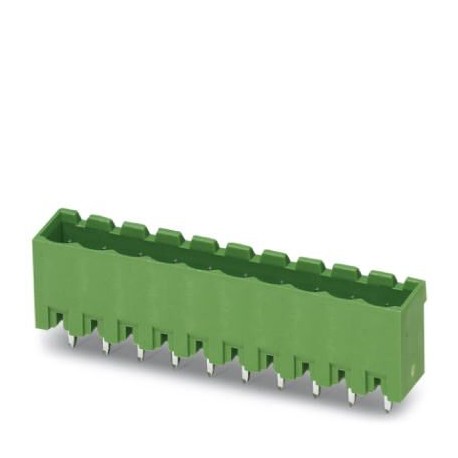

MSTBVA 2,5/12-G AU 1746185 PHOENIX CONTACT Printed-circuit board connector
MSTBVA 2,5/12-G AU
1746185
PHOENIX CONTACT
50 Pcs.
Printed-circuit board connector
Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Gold, contact type: Male, Number of potentials: 12, Number of rows: 1, Number of poles per row: 12, number of connections: 12, family of articles: MSTBVA 2.5/.. -G, pitch: 5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.9 mm, Stecksystem: CLASSIC COMBICON, Locking: without, packaging type: boxed
PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 12, pitch: 5 mm, color: green, contact surface: Gold, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.9 mm
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Data commercial
| Key order | One million seven hundred forty six thousand one hundred eighty five |
|---|---|
| Packing unit | 50 pcs |
| Key selling | AAAFEA - |
| Minimum order quantity | 50 pcs |
| EAN | Four trillion seventeen billion nine hundred eighteen million two hundred twenty seven thousand one hundred four |
| Unit weight (excluding packaging) | 4,640 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred ninety |
| Country of origin | DE (Germany) |
