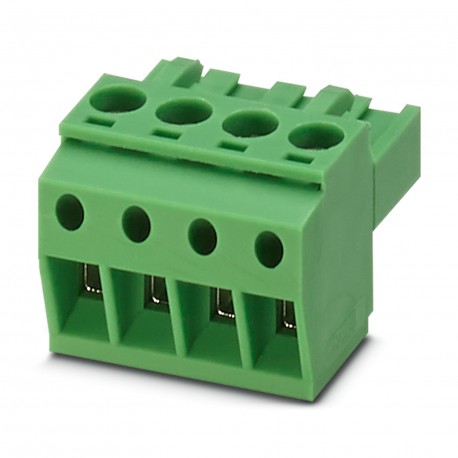

PHOENIX CONTACT MSTBTP 2,5/ 4-ST35CP14BD-3.1SO MSTBTP 2,5/ 4-ST35CP14BD-3.1SO 1085838 PHOENIX CONTACT Connector for printed circuit board, voltage and sizi.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MSTBTP 2,5/ 4-ST35CP14BD-3.1SO 1085838 PHOENIX CONTACT Connector for printed circuit board, voltage and sizi..

MSTBTP 2,5/ 4-ST35CP14BD-3.1SO

1085838

PHOENIX CONTACT

50 Pcs.

Connector for printed circuit board, voltage and sizing (III/2): 320 V, number of poles: 4, pitch: 5 mm, type of connection: Connection by screw with capsule-traction, color: grey, surface contacts: Tin Connector for printed circuit board, nominal section: 2.5 mm², color: luminous gray, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Female, number of rows: 1, number of poles: 4, family of articles: MSTBTP 2.5/.. -ST, pitch: 5 mm, connection type: Screw connection with traction capsule, screw clamping form: L Longitudinal slot, conductor/printed circuit board connection direction: 0 °, clamping hook: - Clamping hook, plug-in system: COMBICON MSTB 2.5, locking: without, fixing type: without, packaging type: boxed Conductive plate connector, nominal cross-section: 2.5 mm2, colour: light grey, nominal current: 12 A, reference voltage (III/2): 320 V, contact area: Sn, contact type: Female connector, number of rows: 1, number of poles: 4, article range: MSTBTP 2.5/.. -ST, pitch: 5 mm, connection type: Screwed connection with ring, screw driving surface: L Longitudinal slot, conductor/PCB plugging direction: 0°, locking clip: - Locking clip, plug-in system: COMBICON MSTB 2.5, locking: without, fastening type: without, packaging type: packed in a carton

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product TypeConductive Plate Connector
Product rangeMSTBTP 2.5/.. -ST
Product LineCOMBICON Connectors M
Number of poles4
Steps5 mm
Number of rows1
Data Management Status
Revision of the article00
Rated Current IN12 A
Rated voltage UN320 V
Contact resistance1.2 mΩ
Reference voltage (III/3)250 V
Rated Shock Resistance Voltage (III/3)4 kV
Rated Voltage (III/2)320 V
Rated Shock Withstand Voltage (III/2)4 kV
Reference voltage (II/2)630 V
Rated Shock Withstand Voltage (II/2)4 kV
Connection technology
Connector SystemCOMBICON MSTB 2,5
Nominal cross-section2.5 mm²
Contact TypeFemale connector
Locking
Lock Modewithout
Mounting Flangewithout
Conductor connection
Connection typeScrewed connection with ring
Conductor/PCB Plugging Direction0 °
Rigid conductor cross-section0.2 mm² ... 2.5 mm²
Soft conductor section0.2 mm² ... 2.5 mm²
Conductive section. AWG24 ... 12
Soft conductor section with end cap, without plastic bushing0.25 mm² ... 2.5 mm²
Soft conductor section with plastic end cap and socket0.25 mm² ... 2.5 mm²
2 rigid conductors of the same cross-section0.2 mm² ... 1 mm²
2 flexible conductors of the same cross-section0.2 mm² ... 1.5 mm²
2 conductors of the same cross-section, flexible with plastic sleeveless end cap0.25 mm² ... 1 mm²
2 flexible conductors of the same cross-section with TWIN bit and plastic socket0.5 mm² ... 1.5 mm²
Template a x b / diameter2.8 mm x 2.0 mm / 2.4 mm
Stripping length7 mm
Screw head drive shapeLongitudinal Slot (L)
Tightening torque0.5 Nm ... 0.6 Nm
Data for Bits Without Insulating Collar
Recommended crimping tool1212034 CRIMPFOX 6
Data for Bits with Insulating Collar
Recommended crimping tool1212034 CRIMPFOX 6
Material indication - contact
NoteWEEE/RoHS compliant, trichite-free according to IEC 60068-2-82/JEDEC JESD 201
Contact materialCu Alloy
Surface qualityTinned by hot dipping
Metal surface connection point (top layer)Tin (4 - 8 μm Sn)
Metal surface, contact area (top layer)Tin (4 - 8 μm Sn)
Material indication - housing
Colors (Cases)Light Grey (7035)
Insulating materialPA
Insulation GroupI
CRI according to IEC 60112600
Flammability class according to UL 94V0
GWFI glow wire flammability class according to EN 60695-2-12850
GWIT glow wire ignition temperature according to EN 60695-2-13775
Ball pressure test temperature according to EN 60695-10-2125 °C
Dimensioned drawing
Steps5 mm
Width [w]20 mm
Height [h]15 mm
Length [l]21.3 mm
Operating InformationMINICONNEC connectors are connectors without switching power (COC) in accordance with DIN EN 61984. When used correctly, they should not be plugged in or disconnected if they are under load or powered on.
Investigation of damage and loosening of conductors
Control SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
ResultSuccessful test
Traction Control
Control SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Conductor cross-section/conductor type/tractive force, nominal/actual0.2 mm² / rigid / > 10 N
0.2 mm² / soft / > 10 N
2.5 mm² / rigid / > 50 N
2.5 mm² / soft / > 50 N
Plug-in and Shrink Forces
Control SpecificationDIN EN 60512-13-2:2006-11
ResultSuccessful test
Number of cycles25
Approx. mating force per pole9 N
Removal force per pole approx.9 N
Torque Control
Control SpecificationDIN EN 60999-1 (VDE 0609-1):2000-12
Resistance of inscriptions
Control SpecificationDIN EN 60068-2-70:1996-07
ResultSuccessful test
Polarization and keying
Control SpecificationDIN EN 60512-13-5:2006-11
ResultSuccessful test
Visual inspection
Control SpecificationDIN EN 60512-1-1:2003-01
ResultSuccessful test
Dimension control
Control SpecificationDIN EN 60512-1-2:2003-01
ResultSuccessful test
Vibration Resistance Test
Control SpecificationDIN EN 60068-2-6 (VDE 0468-2-6):2008-10
Frequency10 - 150 - 10 Hz
Scan Speed1 octave/min
Amplitude0.35 mm (10 Hz ... 60.1 Hz)
Acceleration5g (60.1 Hz ... 150 Hz)
Inspection time per axis2.5 hrs
Sense of controlX, Y, and Z Axes
Lifetime test
Control SpecificationDIN EN 60512-9-1 (VDE 0687-512-9-1):2010-12
Shock Resistance Voltage at Sea Level4.8 kV
Passage resistance R11.2 mΩ
Passage resistance R21.3 mΩ
Number of mating cycles25
Insulation resistance of neighboring poles> 5 MΩ
Climate control
Control SpecificationDIN EN ISO 6988:1997-03
Corrosion susceptibility0.2 dm3SO2about 300 dm3/40 °C/1 cycle
Heat sensitivity100 °C/168 h
Alternating current withstand voltage2.21 kV
Environmental conditions
Ambient Temperature (Operating)-40 °C ... 100 °C (depending on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity of the air (storage/transport)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Thermal Testing Test Group C
Control SpecificationDIN EN 60512-5-1:2003-01
Number of poles tested18
Insulation resistance
Control SpecificationDIN EN 60512-3-1:2003-01
Insulation resistance of neighboring poles> 5 MΩ
Air Distances and Trailing Lines
Control SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulation GroupI
Resistance to leakage currents (DIN EN 60112 (VDE 0303-11))SIC 600
Rated Insulation Voltage (III/3)250 V
Rated Shock Resistance Voltage (III/3)4 kV
minimum value of distance in air - non-homogeneous field (III/3)3 mm
minimum creepage value (III/3)3.2 mm
Rated Insulation Voltage (III/2)320 V
Rated Shock Voltage (III/2)4 kV
minimum value of distance in air - non-homogeneous field (III/2)3 mm
minimum creepage value (III/2)3 mm
Rated Insulation Voltage (II/2)630 V
Rated Shock Withstand Voltage (II/2)4 kV
minimum value of distance in air - non-homogeneous field (II/2)3 mm
minimum creepage value (II/2)3.2 mm
Type of packagingpacked in a carton

ETIM for 1085838 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.2 mm²
Connectable conductor cross section fine-strand with cable end sleeve (EF007339) 0.25 mm²
Connectable conductor cross section solid-core (EF007337) 0.2 mm²
Type of electric connection (EF003961) Screw connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material contact (EF007544) Copper
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
