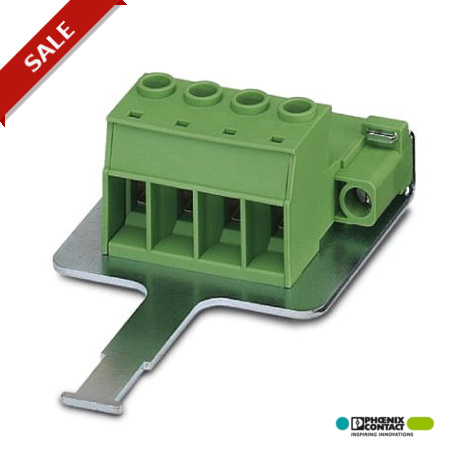

PHOENIX CONTACT IPC 16/ 3-STF-SH-10,16 KMGYNZ2 IPC 16/ 3-STF-SH-10,16 KMGYNZ2 1705669 PHOENIX CONTACT Printed-circuit board connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

IPC 16/ 3-STF-SH-10,16 KMGYNZ2 1705669 PHOENIX CONTACT Printed-circuit board connector

IPC 16/ 3-STF-SH-10,16 KMGYNZ2

1705669

PHOENIX CONTACT

25 Pcs.

Printed-circuit board connector Connector for printed circuit board, nominal section: 16 mm², color: light gray, nominal current: 76 A, dimensioning voltage (III/2): 1000 V, contact surface: silver, contact type: Male, Number of potentials: 3, Number of rows: 1, Number of poles per row: 3, number of connections: 3, family of articles: IPC 16/.. -STF-SH, pitch: 10.16 mm, connection type: Screw connection with traction capsule, conductor connection direction/printed circuit board: 0 °, Stecksystem: POWER COMBICON 16, Lock: Screw lock, packaging type: boxed

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Plug component, nominal current: 76 A, rated voltage (III/2): 1000 V, number of positions: 3, pitch: 10.16 mm, connection method: Screw connection with tension sleeve, color: light gray, contact surface: Silver

General

Range of articlesIPC 16/..-STF-SH
Type of contactMale connector
Number of positions3
Connection methodScrew connection with tension sleeve
Insulating material groupI
Rated surge voltage (III/3)8 kV
Rated surge voltage (III/2)8 kV
Rated surge voltage (II/2)6 kV
Rated voltage (III/3)1000 V
Rated voltage (III/2)1000 V
Rated voltage (II/2)1000 V
Connection in acc. with standardEN-VDE
Nominal current IN76 A
Nominal cross section16 mm²
Maximum load current76 A
Insulating materialPA
Flammability rating according to UL 94V0
Internal cylindrical gageA6
Stripping length14 mm
Screw threadM4
Tightening torque, min1.7 Nm
Tightening torque max1.8 Nm

Connection data

Conductor cross section solid min.0.75 mm²
Conductor cross section solid max.16 mm²
Conductor cross section flexible min.0.75 mm²
Conductor cross section flexible max.16 mm²
Conductor cross section flexible, with ferrule without plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule without plastic sleeve max.16 mm²
Conductor cross section flexible, with ferrule with plastic sleeve min.0.5 mm²
Conductor cross section flexible, with ferrule with plastic sleeve max.10 mm²
Conductor cross section AWG min.18
Conductor cross section AWG max.6
2 conductors with same cross section, solid min.0.75 mm²
2 conductors with same cross section, solid max.6 mm²
2 conductors with same cross section, stranded min.0.75 mm²
2 conductors with same cross section, stranded max.6 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.4 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.6 mm²
Minimum AWG according to UL/CUL20
Maximum AWG according to UL/CUL6

Standards and Regulations

Connection in acc. with standardEN-VDE
CUL
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

eCl@ss

eCl@ss 4.0272607xx
eCl@ss 4.127260701
eCl@ss 5.027260701
eCl@ss 5.127260701
eCl@ss 6.027260704
eCl@ss 7.027440402
eCl@ss 8.027440309
eCl@ss 9.027440309

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002638
ETIM 5.0EC002638
ETIM 6.0EC002638

UNSPSC

UNSPSC 6.0130211810
UNSPSC 7.090139121409
UNSPSC 1139121409
UNSPSC 12.0139121409
UNSPSC 13.239121409
