PHOENIX CONTACT SMKDSP 1,5/ 3-5,08 GY SMKDSP 1,5/ 3-5,08 GY 1730777 PHOENIX CONTACT PCB terminal block View larger
Images are for illustrative purposes only. Please refer to data sheet for details

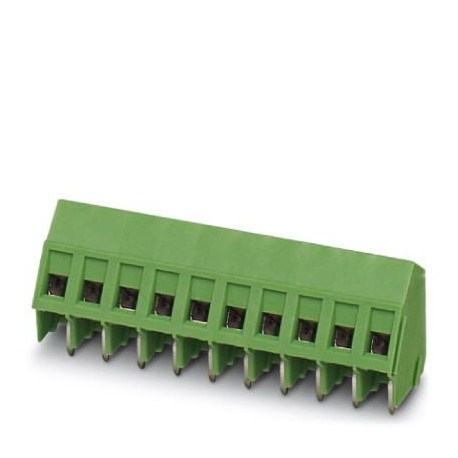

SMKDSP 1,5/ 3-5,08 GY 1730777 PHOENIX CONTACT PCB terminal block

SMKDSP 1,5/ 3-5,08 GY

1730777

PHOENIX CONTACT

250 Pcs.

PCB terminal block Printed circuit board terminal block, rated current: 17.5 A, rated voltage (III/2): 400 V, rated cross-section: 1.5 mm², number of potentials: 3, number of rows: 1, number of poles per row: 3, article family: SMKDSP 1.5, pitch: 5.08 mm, connection type: Screw connection with traction capsule, screw clamping method: L Longitudinal slot, mounting: Wave soldering, conductor/printed circuit board connection direction: 55 °, color: gray, Pin arrangement: Linear pin arrangement, Pin length [P]: 3.5 mm, number of solder pins per potential: 1, packaging type: boxed

Connectors > Printed circuit board terminal
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1730777
Packing unit50 pc
NoteMade to Order (non-returnable)
GTIN4017918258696
Weight per Piece (excluding packing)4.280 g
Custom tariff number85369010
Country of originDE (Germany)

Dimensions

Length [ l ]13.4 mm
Pitch5.08 mm
Dimension a10.16 mm
Width [ w ]15.24 mm
Height15.3 mm
Height [ h ]18.8 mm
Solder pin [P]3.5 mm
Hole diameter1.3 mm

General

Range of articlesSMKDSP 1,5
Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)400 V
Rated voltage (II/2)630 V
Connection in acc. with standardEN-VDE
Nominal current IN17.5 A
Nominal cross section1.5 mm²
Maximum load current22 A
Insulating materialPA
Solder pin surface
Flammability rating according to UL 94V0
Internal cylindrical gageA1
Stripping length7 mm
Number of positions3
Screw threadM3
Tightening torque, min0.5 Nm
Tightening torque max0.6 Nm

Connection data

Conductor cross section AWG min.26
Conductor cross section AWG max.14
2 conductors with same cross section, solid min.0.14 mm²
2 conductors with same cross section, solid max.1 mm²
2 conductors with same cross section, stranded min.0.14 mm²
2 conductors with same cross section, stranded max.0.75 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, min.0.25 mm²
2 conductors with same cross section, stranded, ferrules without plastic sleeve, max.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, min.0.5 mm²
2 conductors with same cross section, stranded, TWIN ferrules with plastic sleeve, max.1 mm²

Standards and Regulations

Connection in acc. with standardEN-VDE
CSA
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally Friendly Use Period = 50
For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”

Classifications


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
