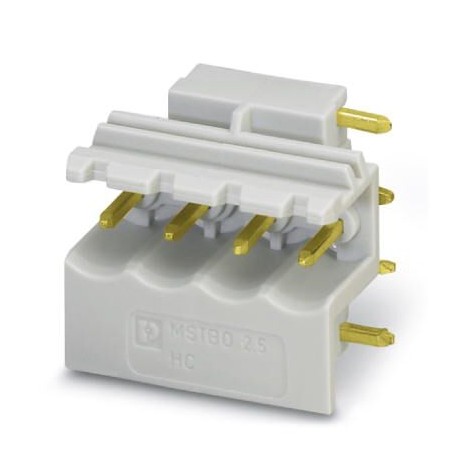

PHOENIX CONTACT MSTBO 2,5/ 4-G1R KMGY AU MSTBO 2,5/ 4-G1R KMGY AU 1077608 PHOENIX CONTACT PCB headers, number of positions: 4, pitch: 5 mm, color: li.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MSTBO 2,5/ 4-G1R KMGY AU 1077608 PHOENIX CONTACT PCB headers, number of positions: 4, pitch: 5 mm, color: li..

MSTBO 2,5/ 4-G1R KMGY AU

1077608

PHOENIX CONTACT

1000 Pcs.

PCB headers, number of positions: 4, pitch: 5 mm, color: light gray, contact surface: Gold, pin layout: Linear pinning, Article with lateral pin exit Printed circuit board base case, color: bright gray, contact surface: Gold, contact type: Male, number of rows: 1, number of poles: 4, family of items: MSTBO 2.5/.. -G1R Au, pitch: 5 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Orthogonal, locking: without, packaging type: boxed, Item with side pin output on the right

Connectors > Printed circuit board connector
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey1077608
Packing unit1
GTIN4055626790558
Custom tariff number85366930

Item properties

Number of positions4
Pin layoutLinear pinning
Back to top

Dimensions for the product

Pitch5 mm
Pin spacing5.00 mm
Dimension a15 mm
Back to top

Dimensions for PCB design

Pin spacing5.00 mm
Back to top

Packaging information

Pieces per package50
Denomination packing unitsPcs.
Back to top

Classifications

eCl@ss

eCl@ss 4.0272607xx
eCl@ss 4.127260701
eCl@ss 5.027260701
eCl@ss 5.127260700
eCl@ss 6.027260700
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402
Back to top

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

UNSPSC

UNSPSC 6.0130211801
UNSPSC 7.090139121432
UNSPSC 1134131203
UNSPSC 12.0139121432
UNSPSC 13.239121409
UNSPSC 18.039121409
UNSPSC 19.039121409
UNSPSC 20.039121409
UNSPSC 21.039121409
Back to top

ETIM for 1077608 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.5 mm
Housing colour (EF000136) Grey
Operating temperature (EF002393) -40 °C
Type of banding (EF007011) Carton (for SMD)
