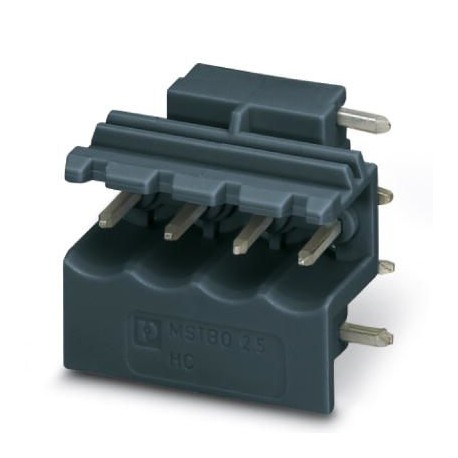

PHOENIX CONTACT MSTBO 2,5/ 4-G1R BUGY MSTBO 2,5/ 4-G1R BUGY 2200385 PHOENIX CONTACT Printed-circuit board connector

View larger

Images are for illustrative purposes only. Please refer to data sheet for details

MSTBO 2,5/ 4-G1R BUGY 2200385 PHOENIX CONTACT Printed-circuit board connector

Name: MSTBO 2,5/ 4-G1R BUGY 2200385 PHOENIX CONTACT Printed-circuit board connector
Brand: PHOENIX CONTACT
SKU: 2200385

Reference: MSTBO 2,5/ 4-G1R BUGY

Code: 2200385

Manufacturer: PHOENIX CONTACT

Units per package: 50 Pcs.

Description:

Printed-circuit board connector Printed circuit board base housing, nominal section: 2.5 mm², color: bluish gray, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Sn, contact connection type: Male, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: MSTBO 2.5/.. -G1R, pitch: 5 mm, connection type: plug-in, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of soldering pins per potential: 1, plug-in system: COMBICON MSTB 2.5, lock: without, packaging type: boxed, Item with side pin output on the right

Categories:
Connectors > Printed circuit board connector
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Guarantee, repair and return.

More info

▲

Key Commercial Data

Orderkey	2200385
Packing unit	50 pc
Minimum order quantity	50 pc
Note	Made to Order (non-returnable)
GTIN	4046356577137
Weight per Piece (excluding packing)	2.800 g
Custom tariff number	85366930
Country of origin	PL (Poland)
