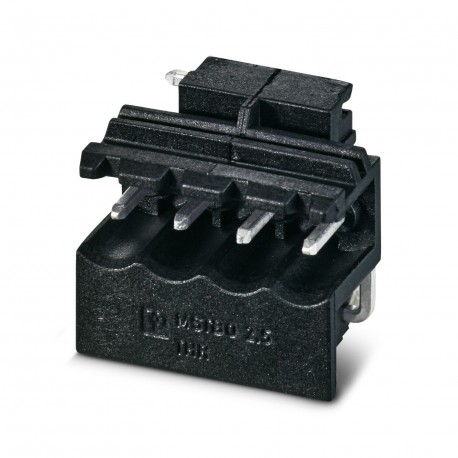

PHOENIX CONTACT MSTBO 2,5/ 4-G1L THR BK MSTBO 2,5/ 4-G1L THR BK 2709749 PHOENIX CONTACT Feed-through header View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MSTBO 2,5/ 4-G1L THR BK 2709749 PHOENIX CONTACT Feed-through header

MSTBO 2,5/ 4-G1L THR BK

2709749

PHOENIX CONTACT

100 Pcs.

Feed-through header Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 16 A, nominal voltage (III/2): 320 V, contact type: Male, number of rows: 1, number of poles: 4, family of articles: MSTBO 2.5/.. -G1L-THR, pitch: 5 mm, mounting: Solder THR, pin arrangement: Linear pin arrangement, pin length [P]: 2.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, lock: without, packaging type: Carton packing, Item with side pin output on the left PCB base socket, nominal cross-section: 2.5 mm2, colour: black, rated current: 16 A, dimensioning voltage (III/2): 320 V, contact surface: Sn, contact connection type: plug, number of rows: 1, number of poles: 4, product series: MSTBO 2.5/.. -G1L-THR, pitch: 5 mm, mounting: THR soldering, pin layout: Linear pinning, pin length [P]: 2.5 mm, number of solder pins per potential: 1, plug system: COMBICON MSTB 2.5, Insertion pin orientation: Orthogonal, locking: none, package type: Carton packaging, Item with left side pin outlet

Connectors > Printed circuit board connector
Housing (HS)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Key Commercial Data

Orderkey2709749
Packing unit100 pc
Minimum order quantity100 pc
NoteMade to Order (non-returnable)
GTIN4046356041553
Weight per Piece (excluding packing)3.040 g
Custom tariff number85366930
Country of originPL (Poland)

Dimensions

Dimension a15 mm
Height15 mm
Pin spacing5.00 mm

General

Insulating material groupI
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Maximum load current12 A
Insulating materialPA
Flammability rating according to UL 94V0

Standards and Regulations

Connection in acc. with standardEN-VDE
Flammability rating according to UL 94V0

Environmental Product Compliance

China RoHSEnvironmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values

Classifications


ETIM for 2709749 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5 mm
Modular spacing connections (EF006827) 5 mm
Rated current In (EF008250) 16 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.5 mm
Length pin (EF006825) 2.5 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
