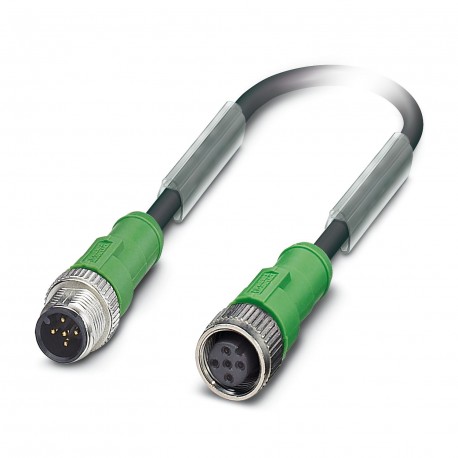

PHOENIX CONTACT SAC-5P-M12MS/0,6-150/M12FS P+F SAC-5P-M12MS/0,6-150/M12FS P+F 1575013 PHOENIX CONTACT Sensor/actuator cable View larger
Images are for illustrative purposes only. Please refer to data sheet for details

SAC-5P-M12MS/0,6-150/M12FS P+F 1575013 PHOENIX CONTACT Sensor/actuator cable

SAC-5P-M12MS/0,6-150/M12FS P+F

1575013

PHOENIX CONTACT

50 Pcs.

Sensor/actuator cable Sensor/actuator cable, 5-pole, halogen-free PUR, irradiation cross-linked, orange RAL 2003, M12 straight male connector, encoding: A, a M12 straight connection female, coding: A, cable length: 0.6 m Sensor/actuator cable, 5-position, PUR halogen-free, irradiated, orange RAL 2003, Plug straight M12, coding: A, on Socket straight M12, coding: A, cable length: 0.6 m

Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Technical data
Product properties
Product typeSensor/actuator cable
Number of positions5
No. of cable outlets1
CodingA
Insulation characteristics
Overvoltage categoryII
Degree of pollution3
Material specifications
Flammability rating according to UL 94HB
Seal materialNBR
Material of grip bodyTPU, hardly inflammable, self-extinguishing
Contact materialCuSn
Contact surface materialNi/Au
Contact carrier materialTPU GF
Material for screw connectionZinc die-cast, nickel-plated
Electrical properties
Insulation resistance≥ 100 MΩ
Nominal voltage UN48 V AC
60 V DC
Nominal current IN4 A
Mechanical properties
Mechanical data
Insertion/withdrawal cycles≥ 100
Signaling
Status displayno
Status display presentNo
Connector
Connection 1
TypePlug straight M12
Number of positions5
Coding typeA
Connection 2
TypeSocket straight M12
Number of positions5
Coding typeA
Cable/line
Cable length0.6 m
PUR irradiated halogen-free orange [151]
Number of positions5
Shieldedno
Cable typePUR irradiated halogen-free orange [151]
Conductor structure signal line42x 0.10 mm
AWG signal line22
Conductor cross section0.34 mm²
Wire diameter incl. insulation1.05 mm ±0.05 mm
External cable diameter5.90 mm ±0.2 mm
Outer sheath, materialPUR
External sheath, colororange RAL 2003
Conductor materialBare Cu litz wires
Material wire insulationPE
Single wire, colorbrown, white, blue, black, green-yellow
Overall twist5 cores, twisted
Max. conductor resistance≤ 57 Ω/km
Nominal voltage, cable250 V (AC)
Test voltage2000 V (50 Hz, 5 minutes)
Smallest bending radius, fixed installationmin. 25 mm
Smallest bending radius, movable installationmin. 40 mm
Dynamic load capacity (bending)Max. bending cycles: 5000000, Bending radius: 59 mm, Traversing path: 10 m, Traversing rate: 3 m/s
Special propertiesIrradiated
Ambient temperature (operation)-50 °C ... 105 °C (cable, fixed installation)
-40 °C ... 105 °C (Cable, flexible installation)
Environmental and real-life conditions
Ambient conditions
Degree of protectionIP65
IP67
IP68
Ambient temperature (operation)-25 °C ... 90 °C (Plug / socket)
-50 °C ... 105 °C (cable, fixed installation)
-40 °C ... 105 °C (Cable, flexible installation)
