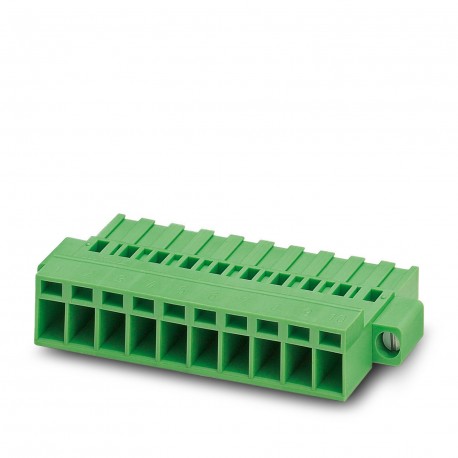

PHOENIX CONTACT MSTBC 2,5/16-STZF-5,08GY35BD16 MSTBC 2,5/16-STZF-5,08GY35BD16 1086092 PHOENIX CONTACT Connector for printed circuit board, number of poles:.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MSTBC 2,5/16-STZF-5,08GY35BD16 1086092 PHOENIX CONTACT Connector for printed circuit board, number of poles:..

MSTBC 2,5/16-STZF-5,08GY35BD16

1086092

PHOENIX CONTACT

50 Pcs.

Connector for printed circuit board, number of poles: 16, pitch: 5,08 mm, color: light grey Connector for printed circuit board, nominal section: 2.5 mm², color: luminous gray, nominal current: 12 A, nominal voltage (III/2): 320 V, contact type: Female, number of rows: 1, number of poles: 16, article family: MSTBC 2.5/.. -STZF, pitch: 5.08 mm, connection type: Crimped connection, screw clamping form: L Longitudinal groove, conductor/printed circuit board connection direction: 0 °, clamping hook: - without clamping hook, plug-in system: COMBICON MSTB 2.5, locking: Screw locking, fixing type: Air clamping (screw), packaging type: boxed PCB connector, nominal cross-section: 2.5 mm2, colour: light grey, rated current: 12 A, rated voltage (III/2): 320 V, contact type: socket, number of rows: 1, number of poles: 16, article family: MSTBC 2.5/.. -STZF, pitch: 5.08 mm, connection type: crimp connection, screw attack shape: L longitudinal slot, connection direction conductor/board: 0 °, locking hook: - without locking hook, plug-in system: COMBICON MSTB 2.5, locking: screw lock, mounting type: screw flange, packaging type: packed in carton

Cables > Cable connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Product TypePCB Connectors
Product familyMSTBC 2.5/.. -STZF
Product LineCOMBICON Connectors M
Number of poles16
Grid dimension5.08 mm
Number of rows1
Data maintenance status
Article revision01
Nominal current IN12 A
Rated voltage UN320 V
Rated voltage (III/3)320 V
Rated Surge Voltage (III/3)4 kV
Rated voltage (III/2)320 V
Rated Surge Voltage (III/2)4 kV
Rated voltage (II/2)630 V
Rated Surge Voltage (II/2)4 kV
Connection technology
DesignStandard
Connector systemCOMBICON MSTB 2.5
Nominal cross-section2.5 mm²
Contact typeSocket
Locking
Lock typeScrew lock
Mounting FlangeScrew flange
Tightening torque0.3 Nm
Conductor connection
Connection typeCrimp Connector
Connection direction conductor/circuit board0 °
Flexible conductor cross-section0.5 mm² ... 2.5 mm²
Conductor cross-section AWG20 ... 14
Drive Form Screw HeadLongitudinal slot (L)
Material information - Contact
Metal Surface Contact Area (Top Layer)Tin (Sn)
Material specifications - Housing
Color (Housing)Light Grey (7035)
Insulating materialPA
Insulating material groupI
CTI according to IEC 60112600
Flammability class according to UL 94V0
Glow wire flammability index GWFI according to EN 60695-2-12850
Glow wire ignition temperature GWIT according to EN 60695-2-13775
Temperature of the ball pressure test according to EN 60695-10-2125 °C
Dimensional drawing
Grid dimension5.08 mm
Width [w]91.26 mm
Height [h]10.5 mm
Length [l]25 mm
Tightening torque0.3 Nm
Note on operationCOMBICON connectors are connectors without switching capacity (COC) in accordance with DIN EN 61984. When used as intended, they must not be plugged in or disconnected in a live or under load.
Environmental conditions
Ambient temperature (operating)-40 °C ... 100 °C (depending on the derating curve)
Ambient temperature (storage/transport)-40 °C ... 70 °C
Relative humidity (storage/transport)30 % ... 70 %
Ambient temperature (mounting)-5 °C ... 100 °C
Clearance and creepage distances
Test SpecificationDIN EN 60664-1 (VDE 0110-1):2008-01
Insulating material groupI
Tracking resistance (DIN EN 60112 (VDE 0303-11))CTI 600
Rated insulation voltage (III/3)320 V
Rated Surge Voltage (III/3)4 kV
Minimum air distance value - inhomogeneous field (III/3)3 mm
Minimum value of the creepage distance (III/3)4 mm
Rated insulation voltage (III/2)320 V
Rated Surge Voltage (III/2)4 kV
Minimum value of the air distance - inhomogeneous field (III/2)3 mm
Minimum value of the creepage distance (III/2)3 mm
Rated insulation voltage (II/2)630 V
Rated Surge Voltage (II/2)4 kV
Minimum value of the clearance - inhomogeneous field (II/2)3 mm
Minimum value of the creepage distance (II/2)3.2 mm
Packaging typepacked in carton

ETIM for 1086092 Connectors (EC002638)
Feature Name Feature Value
Type of connection (EF000064) Other
Contact type (EF001587) Bus
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Angle contact/conductor connection (EF007546) Other
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Connectable conductor cross section fine-strand without cable end sleeve (EF007341) 0.5 mm²
Type of electric connection (EF003961) Crimp connection
Connectable cable type (EF006816) Tubular cable
Material of contact surface (EF004020) Tin
Material insulation body (EF007543) Polyamide (PA)
Housing material (EF001596) Other
Housing colour (EF000136) Other
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
