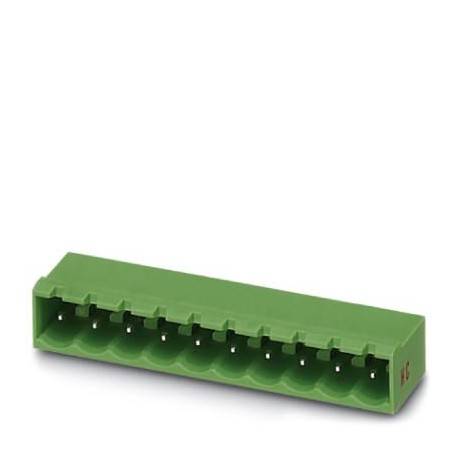

MSTBA 2,5 HC/ 4-G-5,08 BK 1711392 PHOENIX CONTACT Housing base printed circuit board, number of poles: 4, pi..
MSTBA 2,5 HC/ 4-G-5,08 BK
1711392
PHOENIX CONTACT
50 Pcs.
Housing base printed circuit board, number of poles: 4, pitch: 5,08 mm, color: black, surface of contact: Tin, assembly: wave Soldering
Printed circuit board base housing, nominal section: 2.5 mm², color: black, nominal current: 16 A (see derating curve), nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 4, number of rows: 1, number of poles: 4, number of connections: 4, family of articles: MSTBA 2.5 HC/.. -G, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5 HC, Plug-in face orientation: Standard, lock: without, fixing type: without, packaging type: boxed
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Housing base printed circuit board, nominal current: 16 A, voltage and sizing (III/2): 320 V, number of poles: 4, pitch: 5,08 mm, color: black, surface of contact: Tin, assembly: wave Soldering
Data commercial
| Key order | One million seven hundred eleven thousand three hundred ninety two |
|---|---|
| Packing unit | 50 pcs |
| Key selling | AABAAA - |
| Minimum order quantity | 50 pcs |
| EAN | Four trillion fifty five billion six hundred twenty six million five hundred seventeen thousand three hundred forty six |
| Unit weight (excluding packaging) | 1,484 g |
| Tariff number tariff | Eighty five million three hundred sixty six thousand nine hundred thirty |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | 22,32 mm |
| Step | 5,08 mm |
| Average | Of 15.24 mm |
| Width [ w ] | 22,32 mm |
| Height [ h ] | 12,1 mm |
| Height of construction | 8.6 mm |
| Length of the pin welding | 3.5 mm |
| Dimensions of pin | 1 x 1 mm |
| Separation between rods | 5.00 mm |
| Length | 12 mm |
Overview
| Family of articles | MSTBA 2,5 HC/..-G - |
|---|---|
| Color | black |
| Number of poles | Four |
Environmental Product Compliance
| China RoHS | Space of time for the intended use: unlimited = FEUP-e |
|---|---|
| No dangerous substances above the thresholds |
Ratings
eCl@ss
| eCl@ss 5.1 | Twenty seven million two hundred sixty thousand seven hundred |
|---|---|
| eCl@ss 6.0 | Twenty seven million two hundred sixty thousand seven hundred |
| eCl@ss 7.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 8.0 | Twenty seven million four hundred forty thousand four hundred two |
| eCl@ss 9.0 | Twenty seven million four hundred forty thousand four hundred two |
ETIM
| ETIM 5.0 | EC002637 |
|---|---|
| ETIM 6.0 | EC002637 |
| ETIM 7.0 | EC002637 |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of poles (EF001391) | 4 |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5.08 mm |
| Modular spacing connections (EF006827) | 5.08 mm |
| Rated current In (EF008250) | 16 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.23 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Black |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
