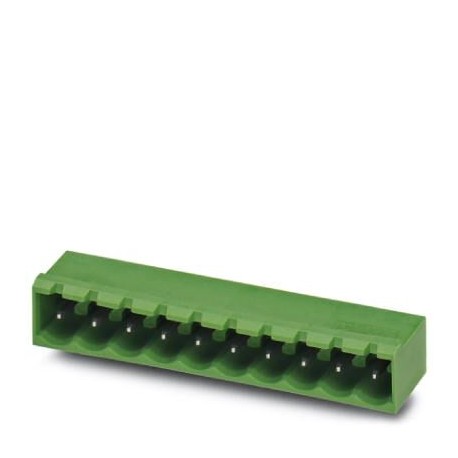

MSTBA 2,5/ 9-G AU 1748280 PHOENIX CONTACT Printed-circuit board connector

MSTBA 2,5/ 9-G AU

1748280

PHOENIX CONTACT

1000 Pcs.

Printed-circuit board connector Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Gold, contact type: Male, Number of potentials: 9, Number of rows: 1, Number of poles per row: 9, number of connections: 9, family of articles: MSTBA 2.5/.. -G, pitch: 5 mm, mounting: Wave welding, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, Stecksystem: CLASSIC COMBICON, Locking:without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, number of positions: 9, pitch: 5 mm, color: green, contact surface: Gold, mounting: Wave soldering

Key Commercial Data

Orderkey1748280
Packing unit50 pc
NoteMade to Order (non-returnable)
GTIN4017918876302
Weight per Piece (excluding packing)3.700 g
Custom tariff number85366990
Country of originDE (Germany)

Dimensions

Length [ l ]12 mm
Width47 mm
Pitch5 mm
Dimension a40 mm
Width [ w ]47 mm
Height [ h ]12.1 mm
Height8.6 mm
Length of the solder pin3.5 mm
Pin dimensions1 x 1 mm
Length12 mm

General

Range of articlesMSTBA 2,5/..-G
Rated surge voltage (III/3)4 kV
Rated surge voltage (III/2)4 kV
Rated surge voltage (II/2)4 kV
Rated voltage (III/3)250 V
Rated voltage (III/2)320 V
Rated voltage (II/2)400 V
Connection in acc. with standardEN-VDE
Nominal current IN12 A
Colorgreen
Number of positions9

Standards and Regulations

Connection in acc. with standardEN-VDE

Classifications

eCl@ss

eCl@ss 4.0272607xx
eCl@ss 4.127260701
eCl@ss 5.027260701
eCl@ss 5.127260701
eCl@ss 6.027260704
eCl@ss 7.027440402
eCl@ss 8.027440402
eCl@ss 9.027440402

ETIM

ETIM 3.0EC001121
ETIM 4.0EC002637
ETIM 5.0EC002637
ETIM 6.0EC002637

UNSPSC

UNSPSC 6.0130211810
UNSPSC 7.090139121409
UNSPSC 1139121409
UNSPSC 12.0139121409
UNSPSC 13.239121409
