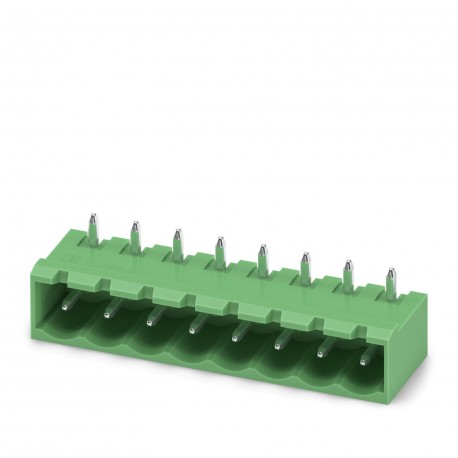

MSTBA 2,5/ 8-GU 1783562 PHOENIX CONTACT Housing base printed circuit board, number of poles: 8, pitch: 5 mm,..
MSTBA 2,5/ 8-GU
1783562
PHOENIX CONTACT
1000 Pcs.
Housing base printed circuit board, number of poles: 8, pitch: 5 mm, color: green
Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 8, family of articles: MSTBA 2.5/.. -GU, pitch: 5 mm, mounting: Wave soldering, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: inverted, locking: without, fixing type: without, packaging type: boxed
PCB base socket, nominal cross-section: 2.5 mm2, colour: green, rated current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Sn, contact connection type: plug, number of rows: 1, number of poles: 8, product series: MSTBA 2.5/.. •OJ, pitch: 5 mm, mounting: Wave soldering, pin layout: Linear pinning, pin length [P]: 3.23 mm, number of soldering pins per potential: 1, plug system: COMBICON MSTB 2.5, Insertion pin orientation: Upside down, locking: none, fixing type: none, packaging type: packed in carton
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Product Type | Basic socket for printed circuit boards |
| Product Family | MSTBA 2.5/.. -OJ |
| Product Line | COMBICON Connectors M |
| Number of poles | 8 |
| Step | 5 mm |
| Number of rows | 1 |
| Pin Layout | Linear Pinning |
| Number of Welding Pins per Potential | 1 |
| Data maintenance status | |
| Article review | 01 |
| Rated Current IN | 12 A |
| Rated voltage UN | 320 V |
| Sizing voltage (III/3) | 250 V |
| Sizing impulse voltage (III/3) | 4 kV |
| Sizing voltage (III/2) | 320 V |
| Sizing Impulse Voltage (III/2) | 4 kV |
| Sizing voltage (II/2) | 400 V |
| Sizing Impulse Voltage (II/2) | 4 kV |
| Mounting type | Wave Soldering |
| Pin Layout | Linear Pinning |
| Material information - contacts | |
| note | Complies with WEEE/RoHS, no thread-like materials according to IEC 60068-2-82/JEDEC JESD 201 |
| Contact Material | Cu Alloy |
| Surface Finish | Galvanic tin plating |
| Metal surface contact zone (surface layer) | Tin (3 - 5 μm Sn) |
| Metal surface contact area (middle layer) | Nickel (1.3 - 3 μm Ni) |
| Metal Surface Welding Area (Surface Layer) | Tin (3 - 5 μm Sn) |
| Metal Surface Weld Area (Middle Layer) | Nickel (1.3 - 3 μm Ni) |
| Material information - case | |
| Color (Case) | Green (6021) |
| Insulation material | PBT |
| Insulation Material Group | IIIa |
| CTI according to IEC 60112 | 225 |
| Combustibility class according to UL 94 | V0 |
| Note for Operation | According to DIN EN 61984, COMBICON connectors are connectors without switchable power (COC). For use in accordance with the intended use, they must not be switched on or disconnected while they are still live or under load. |
| Dimensioned Drawing |  |
| Step | 5 mm |
| Width [w] | 42 mm |
| Height [h] | 11.8 mm |
| Length [l] | 12 mm |
| Installation Height | 8.57 mm |
| Weld Shank Length [P] | 3.23 mm |
| Shank sizes | 1 x 1 mm |
| Printed circuit board design | |
| Bore diameter | 1.4 mm |
| Creepage and Creepage Distances | |
| Test Specification | DIN EN 60664-1 (VDE 0110-1):2008-01 |
| Insulation Material Group | IIIa |
| Resistance to surface currents (DIN EN 60112 (VDE 0303-11)) | CTI 225 |
| Rated insulation voltage (III/3) | 250 V |
| Rated impulse voltage (III/3) | 4 kV |
| Minimum clearance value - inhomogeneous range (III/3) | 3 mm |
| Minimum creepage value (III/3) | 4 mm |
| Rated Isolation Voltage (III/2) | 320 V |
| Rated impulse voltage (III/2) | 4 kV |
| Minimum creepage value - inhomogeneous range (III/2) | 3 mm |
| Minimum creepage value (III/2) | 3.2 mm |
| Rated Isolation Voltage (II/2) | 400 V |
| Rated Impulse Voltage (II/2) | 4 kV |
| Minimum creepage value - inhomogeneous range (II/2) | 3 mm |
| Minimum creepage value (II/2) | 4 mm |
| Environmental conditions | |
| Ambient temperature (operating) | -40 °C ... 100 °C (depending on derating curve) |
| Ambient temperature (storage/transport) | -40 °C ... 70 °C |
| Relative humidity (transport and storage) | 30 % ... 70 % |
| Ambient temperature (mounting) | -5 °C ... 100 °C |
| Packaging | Packed in carton |
| Feature Name | Feature Value |
|---|---|
| Connector model (EF007495) | Fixed connector |
| Contact type (EF001587) | Pin |
| Number of plug-in contact rows (EF006935) | 1 |
| Modular spacing contacts (EF007326) | 5 mm |
| Modular spacing connections (EF006827) | 5 mm |
| Rated current In (EF008250) | 12 A |
| Rated voltage (EF000228) | 320 V |
| Rated surge voltage (EF002993) | 4 kV |
| Over voltage category (EF006785) | III |
| Pollution degree (EF006786) | 2 |
| Material of contact surface (EF004020) | Tin |
| Type of electric connection (EF003961) | Other |
| Diameter connection pin (EF006823) | 1.4 mm |
| Length pin (EF006825) | 3.23 mm |
| Material insulation body (EF007543) | Other |
| Housing colour (EF000136) | Green |
| Inflammability class of insulation material according to UL94 (EF002521) | V0 |
| Operating temperature (EF002393) | -40 °C |
| Type of fastening (EF002442) | Other |
| Type of banding (EF007011) | Carton (for SMD) |
