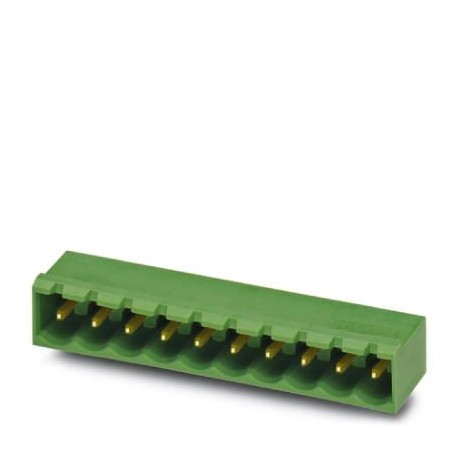

PHOENIX CONTACT MSTBA 2,5/ 6-G-5,08 AU MSTBA 2,5/ 6-G-5,08 AU 1748248 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320.. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MSTBA 2,5/ 6-G-5,08 AU 1748248 PHOENIX CONTACT Housing base,nominal Current: 12 A,rated Voltage (III/2): 320..

MSTBA 2,5/ 6-G-5,08 AU

1748248

PHOENIX CONTACT

50 Pcs.

Housing base,nominal Current: 12 A,rated Voltage (III/2): 320 V,N. º poles: 6,Pitch: 5,08 mm,Color: green,contact Surface: Gold,Assembly: wave Soldering Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Gold, contact type: Male, number of potentials: 6, number of rows: 1, number of poles: 6, number of connections: 6, family of articles: MSTBA 2.5/.. -G, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Data commercial

Key orderOne million seven hundred forty eight thousand two hundred forty eight
Packing unit50 pcs
Key sellingAAAFDA -
Minimum order quantity50 pcs
EANFour trillion seventeen billion nine hundred eighteen million three hundred nineteen thousand nine hundred eight
Unit weight (excluding packaging)2,496 g
Tariff number tariffEighty five million three hundred sixty six thousand nine hundred ninety
Country of origin(Germany)

Dimensions

Length [ l ]12 mm
Width32,48 mm
Step5,08 mm
Average25.4 mm
Width [ w ]32,48 mm
Height [ h ]12,1 mm
Height of construction8.6 mm
Length of the pin welding3.5 mm
Dimensions of pin1 x 1 mm
Length12 mm

Overview

Family of articlesMSTBA 2,5/..-G -
Group insulating materialIIIa
Transient voltage design (III/3)4 kV
Transient voltage design (III/2)4 kV
Transient voltage design (II/2)4 kV
Tension and sizing (III/3)250 V
Tension and sizing (III/2)320 V
Tension and sizing (II/2)400 V
Connection according to standardEN-VDE
Nominal current IN12 To
Maximum load current12 To
IsolationPBT
Class of flammability according to UL 94V0
Colorgreen
Number of polesSix

Standards and specifications

Connection according to standardEN-VDE
CSA
Class of flammability according to UL 94V0

Environmental Product Compliance

China RoHSSpace of time for the intended use: unlimited = FEUP-e
No dangerous substances above the thresholds

Ratings


ETIM for 1748248 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 6
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Gold
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.23 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Green
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
