View larger
Images are for illustrative purposes only. Please refer to data sheet for details

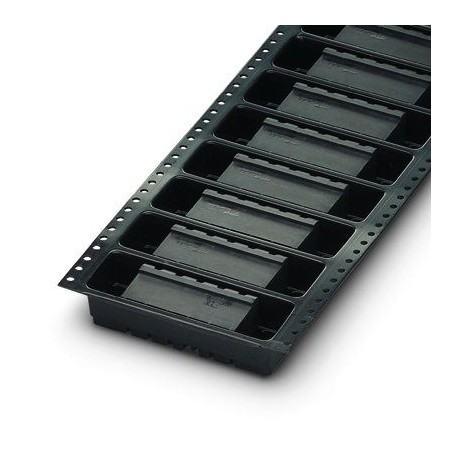

MSTBA 2,5/ 3-G-5,08THTABGYAU R 1731125 PHOENIX CONTACT Konektory desek plošných spojů
MSTBA 2,5/ 3-G-5,08THTABGYAU R
1731125
PHOENIX CONTACT
330 Pcs.
Konektory desek plošných spojů
Printed circuit board base housing, nominal section: 2.5 mm², color: agate gray, nominal current: 12 A, dimensioning voltage (III/2): 320 V, contact surface: Gold, contact type: Male, Number of rows: 1, Number of poles per row: 3, article family: MSTBA 2.5/.. -G-THT, pitch: 5.08 mm, mounting: THR / Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 2.9 mm, Stecksystem: CLASSIC COMBICON, Locking: without, packaging type: 32 mm wide strap, More user information and design recommendations on Through Hole Reflow technology can be found at: Downloads
Connectors > Printed circuit board connector
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1731125 |
|---|---|
| Packing unit | 330 pc |
| Minimum order quantity | 330 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356158275 |
| Weight per Piece (excluding packing) | 2.890 g |
| Custom tariff number | 85366930 |
| Country of origin | DE (Germany) |
Dimensions
| Length [ l ] | 12 mm |
|---|---|
| Width | 17.24 mm |
| Pitch | 5.08 mm |
| Dimension a | 10.16 mm |
| Width [ w ] | 17.24 mm |
| Height [ h ] | 11.5 mm |
| Height | 8.6 mm |
| Length of the solder pin | 2.9 mm |
| Pin dimensions | 1 x 1 mm |
| Length | 12 mm |
General
| Range of articles | MSTBA 2,5/..-G-THT |
|---|---|
| Rated voltage (III/3) | 250 V |
| Connection in acc. with standard | EN-VDE |
| Nominal current IN | 12 A |
| Insulating material | PA |
| Color | Agate gray |
| Number of positions | 3 |
Environmental Product Compliance
| China RoHS | Environmentally friendly use period: unlimited = EFUP-e |
|---|---|
| No hazardous substances above threshold values |
