View larger
Images are for illustrative purposes only. Please refer to data sheet for details

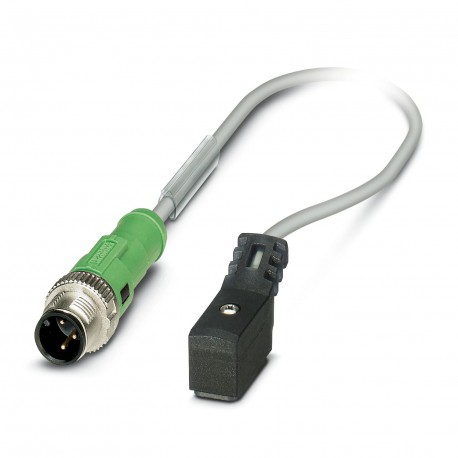

SAC-2P-MS/0,55-PUR/ZC-1L-S SCO 1560866 PHOENIX CONTACT Sensor/actuator cable
SAC-2P-MS/0,55-PUR/ZC-1L-S SCO
1560866
PHOENIX CONTACT
50 Pcs.
Sensor/actuator cable
Sensor/actuator cable, 2 poles, grey PUR/PVC, straight male connector SPEEDCON M12 to valve connector of MSZC construction, with 1 LED, cable length: 0.55 m
Sensor/actuator cable, 2-pin, PUR/PVC grey, M12 SPEEDCON plug straight on valve connector MSZC design with 1 LED, length: 0.55 m
Automation > Sensor-actuator patch cord
Industrial Field Connectivity (IFC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Key Commercial Data
| Orderkey | 1560866 |
|---|---|
| Packing unit | 50 pc |
| Minimum order quantity | 50 pc |
| Note | Made to Order (non-returnable) |
| GTIN | 4046356281898 |
| Weight per Piece (excluding packing) | 20.860 g |
| Custom tariff number | 85444290 |
| Country of origin | DE (Germany) |
Ambient conditions
| Degree of protection | IP65 (M12 connector) |
|---|---|
| IP67 (M12 connector) | |
| IP65 (Valve connector) |
General
| Rated current at 40°C | 4 A |
|---|---|
| Rated voltage | 250 V AC |
| 250 V DC | |
| Number of positions | 3 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | A - standard |
| Status display | 1 LED |
| Protective circuit/component | |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Torque | 0.4 Nm |
Material
| Flammability rating according to UL 94 | HB |
|---|---|
| Contact material | CuSn |
| Contact surface material | Ni/Au |
| Contact carrier material | TPU GF |
| Valve plug contact material | CuSn |
| Material housing valve plug | TPE-U |
| Sealing material | NBR |
Cable
| Conductor cross section | 0.25 mm² |
|---|---|
| AWG signal line | 24 |
| Wire colors | black, black |
| External sheath, color | black-gray RAL 7021 |
| External cable diameter | 3.40 mm |
| Outer sheath, material | PUR |
| Conductor material | Bare Cu litz wires |
Environmental Product Compliance
| REACh SVHC | Lead 7439-92-1 |
|---|---|
| China RoHS | Environmentally Friendly Use Period = 50 |
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
Classifications
eCl@ss 4.027060306eCl@ss 4.127060306eCl@ss 5.027061801eCl@ss 5.127061800eCl@ss 6.027279200eCl@ss 7.027279218eCl@ss 8.027279218eCl@ss 9.027060311
| Feature Name | Feature Value |
|---|---|
| Number of poles (EF001391) | 3 |
| Type of electrical connection, field-sided (EF005525) | M12 |
| Type of plug-in contact, field sided (EF006269) | Male (plug) |
| Positioning cable feed, field-sided (EF005928) | Straight |
| Type of electrical connection, box-sided (EF005524) | Other |
| Type of plug-in contact, box-sided (EF008386) | Female (bus) |
| Cable length (EF000536) | 0.55 m |
| Material of cable sheath (EF004136) | Other |
| Halogen free (EF000025) | Yes |
| Colour cable sheath (EF008249) | Other |
| With LED indication (EF005950) | No |
| Screened (EF000881) | No |
| Cable type (EF000081) | Multi-core |
| Vulcanize (EF004115) | No |
| Material contact body (EF008248) | CuSn |
| Material of contact surface (EF004020) | Other |
| Permitted cable outer temperature after assembling without vibration (EF001686) | -10 °C |
| Permitted cable outer temperature during assembling/handling (EF001685) | -10 °C |
| Rated current In (EF008250) | 4 A |
| Rated voltage (EF000228) | 250 V |
| Degree of protection (IP) (EF005474) | IP65 |
