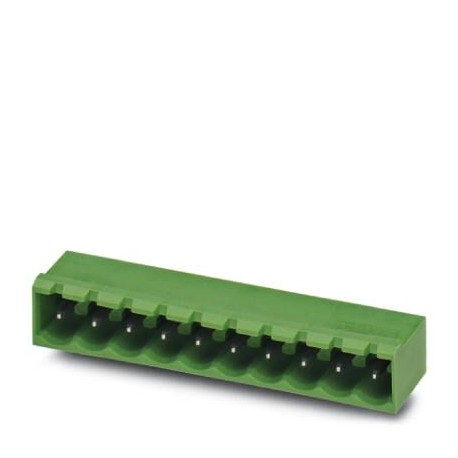

PHOENIX CONTACT MSTBA 2,5/15-G-5,08 BK MSTBA 2,5/15-G-5,08 BK 1746907 PHOENIX CONTACT Housing base for printed circuit board, number of poles: 15, .. View larger
Images are for illustrative purposes only. Please refer to data sheet for details

MSTBA 2,5/15-G-5,08 BK 1746907 PHOENIX CONTACT Housing base for printed circuit board, number of poles: 15, ..

MSTBA 2,5/15-G-5,08 BK

1746907

PHOENIX CONTACT

50 Pcs.

Housing base for printed circuit board, number of poles: 15, pitch: 5,08 mm, color: black, surface of contact: Tin, assembly: wave Soldering Printed circuit board base case, nominal section: 2.5 mm², color: black, nominal current: 12 A, nominal voltage (III/2): 320 V, contact surface: Tin, contact type: Male, number of potentials: 15, number of rows: 1, number of poles: 15, number of connections: 15, family of articles: MSTBA 2.5/.. -G, pitch: 5.08 mm, mounting: Wave soldering, pin arrangement: Linear pin arrangement, pin length [P]: 3.5 mm, number of solder pins per potential: 1, plug-in system: COMBICON MSTB 2.5, Plug-in face orientation: Standard, locking: without, fixing type: without, packaging type: boxed PCB headers, nominal current: 12 A, rated voltage (III/2): 320 V, nominal cross section: 2.5 mm², number of positions: 15, pitch: 5.08 mm, color: black, contact surface: Tin, mounting: Wave soldering, pin layout: Linear pinning, solder pin [P]: 3.5 mm

Connectors > Printed circuit board connector
PCB Connectors (PCC)

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

Data commercial

Key orderOne million seven hundred forty six thousand nine hundred seven
Packing unit50 pcs
Key sellingAAAFDA -
Minimum order quantity50 pcs
EANFour trillion fifty five billion six hundred twenty six million five hundred twenty four thousand four hundred fifty
Unit weight (excluding packaging)3,348 g
Tariff number tariffEighty five million three hundred sixty six thousand nine hundred thirty

Drawings

Diagrama

Diagram
Type: FRONT-MSTB 2,5/...-ST-5,08 with MSTBA 2,5/...-G-5,08

Back to top

Dimensions

Length [ l ]12 mm
Width78,12 mm
Step5,08 mm
Average71,12 mm
Width [ w ]78,12 mm
Height [ h ]12,1 mm
Height of construction8.6 mm
Length of the pin welding3.5 mm
Length12 mm
Back to top

Overview

Family of articlesMSTBA 2,5/..-G -
Colorblack
Number of polesFifteen
Back to top

Environmental Product Compliance

China RoHSSpace of time for the intended use: unlimited = FEUP-e
No dangerous substances above the thresholds
Back to top

Ratings

eCl@ss

eCl@ss 4.0Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 4.1Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 5.0Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 5.1Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 6.0Twenty seven million two hundred sixty thousand seven hundred
eCl@ss 7.0Twenty seven million four hundred forty thousand four hundred two
eCl@ss 8.0Twenty seven million four hundred forty thousand four hundred two
eCl@ss 9.0Twenty seven million four hundred forty thousand four hundred two
Back to top

ETIM

ETIM 5.0EC002637
ETIM 6.0EC002637
ETIM 7.0EC002637
Back to top

UNSPSC

UNSPSC 6.01Thirty million two hundred eleven thousand eight hundred ten
UNSPSC 7.0901Thirty nine million one hundred twenty one thousand four hundred nine
UNSPSC 11Thirty nine million one hundred twenty one thousand four hundred nine
UNSPSC 13.2Thirty nine million one hundred twenty one thousand four hundred nine
UNSPSC 18.0Thirty nine million one hundred twenty one thousand four hundred nine
UNSPSC 19.0Thirty nine million one hundred twenty one thousand four hundred nine
UNSPSC 20.0Thirty nine million one hundred twenty one thousand four hundred nine
UNSPSC 21.0Thirty nine million one hundred twenty one thousand four hundred nine
Back to top

ETIM for 1746907 Connectors (EC002637)
Feature Name Feature Value
Connector model (EF007495) Fixed connector
Contact type (EF001587) Pin
Number of poles (EF001391) 15
Number of plug-in contact rows (EF006935) 1
Modular spacing contacts (EF007326) 5.08 mm
Modular spacing connections (EF006827) 5.08 mm
Rated current In (EF008250) 12 A
Rated voltage (EF000228) 320 V
Rated surge voltage (EF002993) 4 kV
Over voltage category (EF006785) III
Pollution degree (EF006786) 2
Material of contact surface (EF004020) Tin
Type of electric connection (EF003961) Other
Diameter connection pin (EF006823) 1.4 mm
Length pin (EF006825) 3.23 mm
Material insulation body (EF007543) Other
Housing colour (EF000136) Black
Inflammability class of insulation material according to UL94 (EF002521) V0
Operating temperature (EF002393) -40 °C
Type of fastening (EF002442) Other
Type of banding (EF007011) Carton (for SMD)
