View larger
Images are for illustrative purposes only. Please refer to data sheet for details

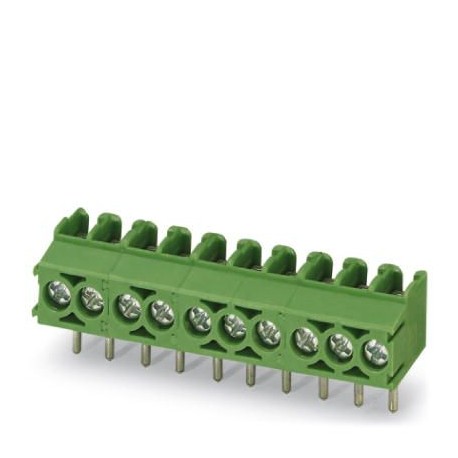

PT 1,5/ 3-3,5-V TS 1715564 PHOENIX CONTACT PCB terminal block
PT 1,5/ 3-3,5-V TS
1715564
PHOENIX CONTACT
100 Pcs.
PCB terminal block
Terminal block for printed circuit board, nominal current: 17.5 A, dimensioning voltage (III/2): 200 V, nominal section: 1.5 mm², Number of potentials: 3, Number of rows: 1, Number of poles per row: 3, family of articles: PT 1.5/.. -V, pitch:3.5 mm, connection type: Screw connection with wire protection bracket, mounting: Wave soldering, conductor connection direction/printed circuit board: 90 °, color: green, Pin arrangement: Linear pin arrangement, Pin length [P]: 4.5 mm, packaging type: boxed
Connectors > Printed circuit board terminal
PCB Connectors (PCC)
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Dimensions
| Length [ l ] | 9 mm |
|---|---|
| Pitch | 3.5 mm |
| Dimension a | 7 mm |
| Height | 7.6 mm |
| Height [ h ] | 7.6 mm |
| Solder pin [P] | 4.5 mm |
| Pin spacing | 3.5 mm |
| Hole diameter | 1.2 mm |
General
| Range of articles | PT 1,5/..-V |
|---|---|
| Insulating material group | I |
| Rated voltage (III/2) | 200 V |
| Nominal current IN | 17.5 A |
| Nominal cross section | 1.5 mm² |
| Solder pin surface | |
| Flammability rating according to UL 94 | V0 |
| Number of positions | 3 |
| Screw thread | M2 |
Environmental Product Compliance
| China RoHS | Environmentally Friendly Use Period = 50 |
|---|---|
| For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
